Chemco Manufacturing products

The Slim is an all-purpose economy paint arrestor filter for basic overspray efficiency at a minimal cost. The Slim has an efficiency rating of 98.75% and is designed for use as a pre-filter or with two filters in tandem.

N-Poly is a standard 1" medium-loft paint arrestor. As a single layer, its construction provides maximum efficiency and optimal air flow. N-Poly is also widely popular as a pre-filter in multi-stage wet and spray-to-waste powder coating applications. Efficiency rating of this filter is 99.93%. (Replaces sku:20NROLLPOLY).

The Chemco PMM paint arrestor has six layers of paper in a honeycomb design. Typically used as a pre-filter, can be used with other filters to increase efficiency. PMM provides modest efficiency with steady airflow. The efficiency is 97.33%.

This economical filter is a 2 pocket self sealing filter used for wet spray and powder coating applications. Ideal for multi-stage spray booths Constructed with high performance environmentally safe, polyester media that is tear resistant and won’t rupture before or after installation Pocket configuration results in even airflow, full inflation and minimal resistance Optimized paint holding capacity and increased service life.

Chemco’s tackified 2 pocket bag self sealing extended surface area filter is primarily used in wet spray applications. Ideal for multi-stage spray booths Constructed with high performance environmentally safe, polyester media that is tear resistant and won’t rupture before or after installation Pocket configuration results in even airflow, full inflation and minimal resistance Optimized paint holding capacity and increased service life.

Series AFR-1 media is a scrim backed high quality intake filter used in air makeup units for spray booths. Constructed of 100% polyester filter media with an impregnated tackifier. AFR-1 is a popular filter media used in applications where dust control is a concern. This intake filter media boasts efficiency levels greater than 95% on particles 7-10 microns and greater.

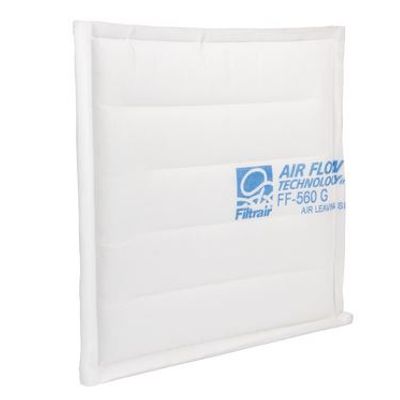

Series FF-560 GX media is specially designed as a premium intake filter media used in air makeup units for spray booths. This filter media is non-woven synthetic fiber based with a progressive density multi-layering construction. FF-560 GX filter media yields a high dust loading capacity, longer filter life and premium grade fractional efficiency. Efficiency levels are rated at 99+ % at 7-10 microns and greater. FF-560 GX is heat resistant and has a special tackifier which increases its performance in spray booths. (Replaces sku:2025DMAFIFF).

Offers high efficiency, durability and performance appropriate for a wide variety of dust applications, including blast booths, carbon black, pharmaceutical, powder-coating and dry chemical processing. Pleat spacing can be widened for applications where larger or irregular shaped dust particles enter the collector, such as fiberglass and composite grinding and tobacco processing.

Chemco’s multi-cell filter is one of the most popular final filters in use throughout the USA by OEM manufacturers. This filter incorporates a metal outer screen to protect and hold the media pleats together. This 95% efficient filter is fabricated with pleated media packs made of water-resistant all-glass micro-fiber media encased in polypropylene housings.

The Rigi-Pak filter has plastic separators that uniformly divide and hold the pleats in place instead of customary metal screening. Our separators do not detract from efficiency and performance of this filter, but do lower cost. This filter has no header and the rated efficiency is 95%.
