Chemco Systems L.P. products

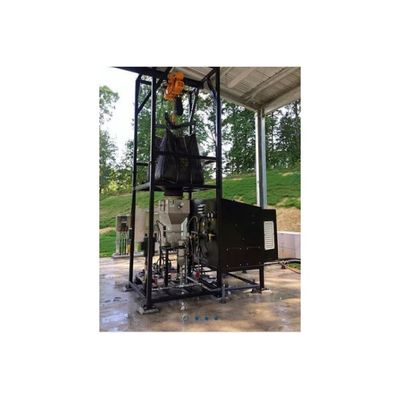

Chemco designs and fabricates bulk bag un-loaders for both hydrated lime and powdered activated carbon. An entire storage, delivery and make-down system can be furnished as one commonly mounted unit. These units are ruggedly constructed and designed to provide years of reliable service.

Chemco`s Lime Slaking System utilizes pebble lime`s higher neutralization capacity based on tonnage to provide storage, dry feed, slaking of pebble lime, and the delivery of the resultant hydrated lime slurry to the process point.  This system employs Chemo`s proven temperature control operating philosophy to deliver consistent, high quality hydrated lime without the need for maintenance-reliant weighing devices.  Temperature control of the slaking process has proven, over our 40 years of industry experience, to be the most reliable method of ensuring consistent, small hydrated lime particle size, which greatly increases system efficiency and reduces operational and material costs.   Our team will work closely with the design engineer and customer to determine which lime slaker best accommodates their application and to provide a reliable system that is engineered for functionality and operability.

Chemco offers both standard & customizable chemical storage and treatment systems.  These systems are highly configurable, allowing our sales & engineering team to work closely with the customer to provide the appropriate system that meets the project specification while delivering on the client’s vision for functionality and operability.

Chemco`s pneumatic conveying silo systems allow our customers additional onsite storage to meet the treatment demands of their systems. Pneumatic conveying systems can be configured in either a single or dual cone discharge with each equipment train consisting of a rotary airlock feeder with storage hopper, pneumatic transfer pick-up tee, pneumatic blower and the associated valving/piping. These systems can be utilized for municipal plants for transfer of material to various day bins or a chemical feed silo system. Within the industrial sector, these have been utilized for dry sorbent injection systems for additional onsite material storage.

Chemco`s Hydrated Lime Systems can feed dry hydrated lime by way of pneumatic transfer or wet in slurry form by pumping the slurry and can be factory assembled as either skirted or leg support silos. Every hydrated lime system is specifically designed to accommodate any particular process. Every process is unique, as are our silos. For that reason, our engineering team will work closely with the design engineer and customer to ensure that all subsystems and components are sized to meet the customer`s expectations of functionality while delivery a high-quality, dependable treatment system.

Powdered Activated Carbon (PAC) Systems are primarily used by water treatment plants on either a full time basis or as needed for taste and odor control or removal of organic chemicals. PAC can be fed as a powder using dry feed equipment or as a slurry.  Dry feed systems are typically used for smaller dosages, which is an ideal application for Chemco`s Bulk Bag Un-Loader system if a smaller system is desired, while slurry systems are normally used when PAC is frequently added and the required dosages are high.

Recycled Ash or Fly Ash is one of the by-products of coal-fired power plants.  All recycled ash includes substantial amounts of Silicon Dioxide (SiO2) and Calcium oxide (CaO).  This caustic ash is used in a slurry form, in conjunction with lime slurry, in dry or semi-dry FGD for SO2 and HCl removal.

Sodium Carbonate (Na2CO3), usually known as Soda Ash, is commonly used in water treatment to increase the pH of acidic water.  Soda ash systems are employed to act as first a pH adjuster with the added benefit of softening of the water.  Soda ash systems are typically used as a point-of-entry injection system.  Corrosion-resistant chemical feed pumps will discharge the soda ash solution into the water to raise the pH.  Alternatively, the solution can be delivered by gravity by utilizing an overflow weir and trough to deliver the soda ash solution to the point of application.

Chemco detention slakers cover a wide range of feed rates. Depending on your demand, Chemco can offer slakers ranging from 250 lb/hr to 50,000 lb/hr.

Chemco batch slakers cover a wide range of feed rates. Depending on your demand, Chemco can offer slakers ranging from 250 lb/hr to 6,000 lb/hr.
