ChemGrout products

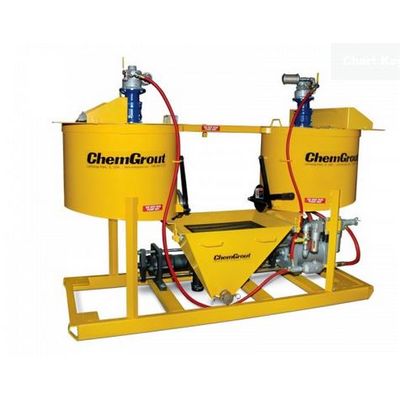

The ChemGrout CG-500/031 High-Capacity Geothermal Series has been designed specifically for grouting geothermal loops. These skid mounted grout plants efficiently mix and pump the high ratio sand/bentonite materials specified by loop designers. The CG-500/031 feature two 70-gallon (265 liters) mixing tanks, a large 45-gallon (170 liter) holding hopper and rugged single-acting 3″ piston grout pump. Each mixing tank is equipped with baffles, bag breaker and a variable speed high-efficiency paddle mixer that provides rapid grout mixing. Tank outlets are large slide gates that allow viscous grouting materials to flow quickly into the removable holding hopper.

The ChemGrout Sprayer/Finisher Series is specially designed to offer the flexibility for both pump and spray applications. Its twin 45-gallon mixing tanks, pump, and large holding hopper are all mounted on a single skid for quick, easy set-up and immediate operation.

The ChemGrout CG-500 series are high volume production skid mounted grout plants. This versatile unit is designed to mix and pump neat cement, sanded grouts and most commercial pre-blended grout mixes. These units feature two 70-gallon (265 liters) mixing tanks, a 15-gallon (57 liters) holding hopper and an open throat progressive cavity grout pump.

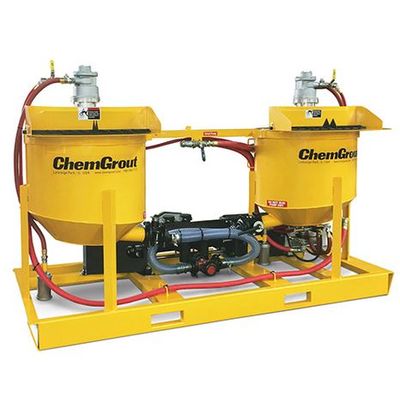

The ChemGrout CG-500HP series are skid mounted, high-pressure grout plants. These units feature two 70-gallon (265 liters) mixing tanks, a 21-gallon (80 liters) holding hopper and a high-pressure plunger grout pump. The unique double mix tank design permits continuous pumping as each mix tank alternates feeding the pump.

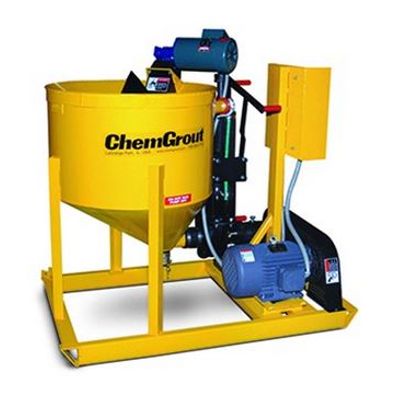

The ChemGrout CG-450/2L4 are specially designed, skid or wheel mounted, high shear colloidal injection systems designed for vacuum grouting of post tensioned cables ducts or small injection projects.

The versatile ChemGrout model CG460/2X8 is a skid mounted, high-pressure grout plant that is designed to mix and pump neat cements at high-pressures. The CG460 features two high shear colloidal 55-gallon (208 liter) mixing tanks, and a double acting, high-pressure plunger type grout pump. Dual 55 gallon colloidal mix tanks allow for independent mixing of flushing and structural grouts.

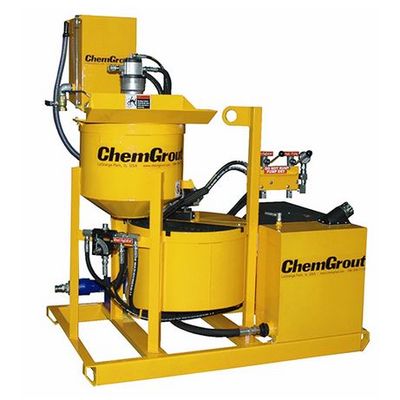

The ChemGrout CG-620 Colloidal Mixer is a skid mounted system. The colloidal mixer is equipped with a high speed centrifugal diffuser-type pump that disperses the cementitous material down to its smallest size to achieve complete particle wetting (or wetness) and a powered bridge breaker to precondition material before entering the colloidal mixing pump. The rugged steel frame stands up to the toughest conditions on the job site. Operator controls are centrally located for efficient production. All components are easily accessible for operating, cleaning and maintenance. The ChemGrout CG-620/630 Colloidal Mixers are designed to be add on units to complement equipment that is already owned by the user.

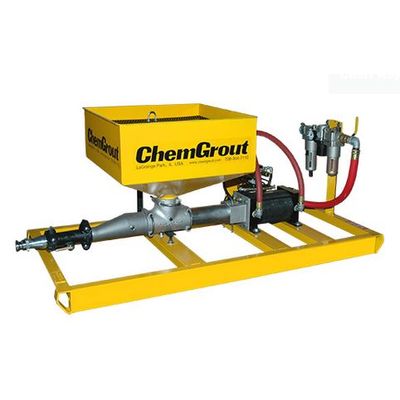

The ChemGrout CG-030 is a 3″ piston grout pump. This unit features a large 30-gallon (113 liters) holding hopper and the popular single-acting piston grout pump. The large holding hopper is sized to provide ample capacity for continuous pumping. A 18 gallon (68 liter) steep sided hopper is also available for thick pasty materials like repair mortars. The grout pump is a 3″ positive displacement piston pump that disassembles with only a hammer for fast and thorough cleaning. The rugged steel frame stands up to the toughest conditions on the job site. Operator controls are centrally located for efficient production.

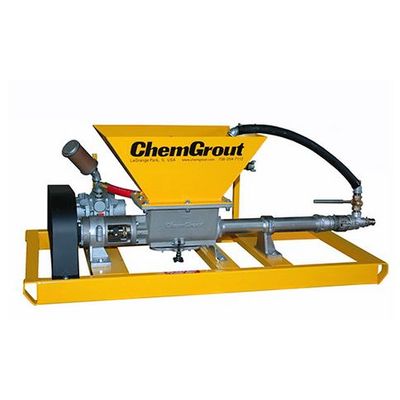

The ChemGrout CGC4 is a skid mounted, Size 4, Open-Throat Progressive Cavity Grout Pump. The progressive cavity pump is a perfect solution when pumping viscous, abrasive or solid laden materials.

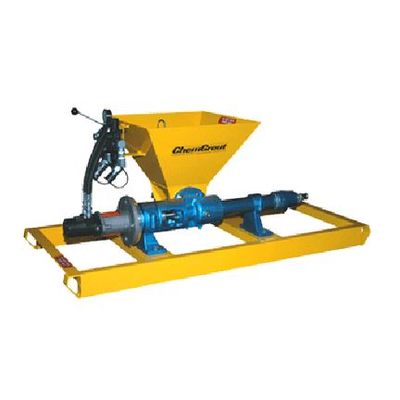

The ChemGrout CGL4 is a skid mounted, Size 4, Flanged-Inlet Progressive Cavity Grout Pump. The progressive cavity pump is a perfect solution when pumping viscous, abrasive or solid laden materials.
