Chemical Injection Technologies, Inc products

The SUPERIOR Series CL-1 Gas Chlorinator is a state-of-the-art vacuum-operated, solution feed system which mounts directly on a chlorine cylinder valve. The chlorinator is mounted onto the chlorine cylinder valve using a very heavy-duty, positive yoke clamp connection. A chlorine gas flow meter panel indicates the amount of chlorine being fed and may be located wherever it is safest and most convenient. Chlorine flow rate is manually adjusted and the design permits easy addition of a number of automatic flow rate control devices. A high efficiency, water operated ejector produces the vacuum necessary to operate the system.

The SUPERIOR Series CLM-1 Gas Chlorinator is a state-of-the-art, vacuum-operated, solution feed type which mounts directly on a chlorine cylinder valve. The chlorinator is mounted onto the chlorine cylinder valve using a very heavy-duty, positive yoke clamp connection. A chlorine gas flow meter indicates the amount of chlorine being fed. Chlorine flow rate is manually adjusted and the design permits easy addition of a number of automatic flow rate control devices. A high efficiency, water operated ejector produces the vacuum necessary to operate the system. The ejector assembly contains a back-flow check valve system to prevent pressurized water from entering the chlorinator. A spring-opposed diaphragm vacuum regulator controls the chlorine gas flow rate and also acts as the safety shut-off valve.

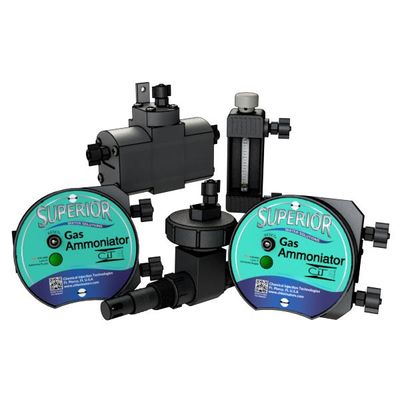

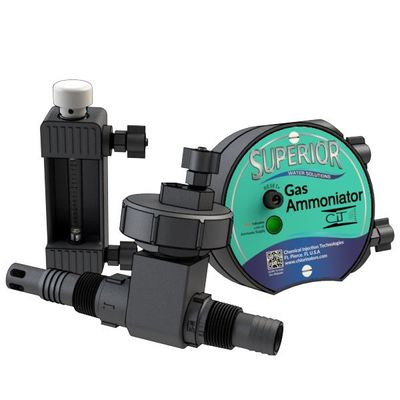

The SUPERIOR Series NH-1 Gas Ammoniator is a state-of-the-art, vacuum-operated, solution feed type which mounts directly on a ammonia cylinder valve. The ammoniator is mounted onto the ammonia cylinder valve using a very heavy-duty, positive yoke clamp connection. A ammonia gas flow meter panel indicates the amount of ammonia being fed and may be located wherever it is safest and most convenient. Ammonia flow rate is manually adjusted and the design permits easy addition of a number of automatic flow rate control devices. A high efficiency, water operated ejector produces the vacuum necessary to operate the system. The ejector assembly contains a back-flow check valve system to prevent pressurized water from entering the ammoniator. A spring-opposed diaphragm vacuum regulator controls the ammonia gas flow rate and also acts as the safety shut-off valve.

The SUPERIOR Series NH-15 Modular Automatic Switchover Ammoniator is a state-of-the-art, totally vacuum-operated system designed to automatically switch Ammonia feed from an empty cylinder to a full cylinder. The Series NH-15 allows round-the-clock chlorination without being concerned about running out of Ammonia when the system is unattended. Series NH-15 chlorinators are of the vacuum-operated solution feed type designed to mount directly on Ammonia cylinder valves. A vacuum operated switchover module is mounted on the wall and connected to both Ammonia vacuum regulators. A Ammonia gas flow meter panel indicates the amount of Ammonia being fed and may be located wherever it is safest and most convenient. Ammonia flow rate is manually adjusted and the design permits easy addition of a number of automatic flow rate control devices.

The SUPERIOR Series SD-1 Gas Sulfonator is a state-of-the-art, vacuum-operated, solution feed type which mounts directly on a sulfur dioxide cylinder valve. The sulfonator is mounted onto the sulfur dioxide cylinder valve using a very heavy-duty, positive yoke clamp connection. A sulfur dioxide gas flow meter panel indicates the amount of sulfur dioxide being fed and may be located wherever it is safest and most convenient. Sulfur dioxide flow rate is manually adjusted and the design permits easy addition of a number of automatic flow rate control devices. A high efficiency, water operated ejector produces the vacuum necessary to operate the system. The ejector assembly contains a back-flow check valve system to prevent pressurized water from entering the sulfonator. A spring-opposed diaphragm vacuum regulator controls the sulfur dioxide gas flow rate and also acts as the safety shut-off valve.

The SUPERIOR Series SD-2/5 Gas Sulfonator is a state-of-the-art, vacuum-operated, solution feed type which mounts directly on a sulphur dioxide valve. The Sulfonator is mounted onto the sulphur dioxide valve of a cylinder, wall manifold or ton container adaptor, using a very heavy-duty, positive yoke clamp connection. A sulphur dioxide gas flow meter panel indicates the amount of sulphur dioxide being fed and may be located wherever it is safest and most convenient. Sulphur dioxide flow rate is manually adjusted and the design permits easy addition of a number of automatic flow rate control devices. A high efficiency, water operated ejector produces the vacuum necessary to operate the system. The ejector assembly contains a back-flow check valve system to prevent pressurized water from entering the Sulfonator. A spring-opposed diaphragm vacuum  regulator controls the sulphur dioxide gas flow rate and also acts as the safety shut-off valve

UPERIOR VacuFeed The future is now for precision liquid feed. SUPERIOR, the name you trust for safety, brings you VacuFeed-X (U.S. Patent No. 7,032,609). Tired of problems with mechanical and solenoid feed pumps? Say hello to VacuFeed-X, the vacuum safe liquid feed system. Self priming. No air binding. High efficiency mixing. Consistent, high accuracy liquid feed rate, repeatable in start/stop operations. No moving parts translates into virtually maintenance free, easy service and low operating cost.

The SUPERIOR VacuFeed-X™ is a state-of-the-art Liquid Chemical Feed System designed to allow constant, consistently repeatable metering of liquids into water or waste water treatment systems, swimming pools, and many industrial processes. A highly efficient, water operated venturi type ejector produces the vacuum necessary to operate the system. A unique “Triple Bypass” check valve system prevents pressurized water from entering the liquid metering system and provides a visual pressure relief to drain. All components operate under a safe, vacuum condition which prevents chemicals from continuing to feed into the atmosphere in the event of a breakage.

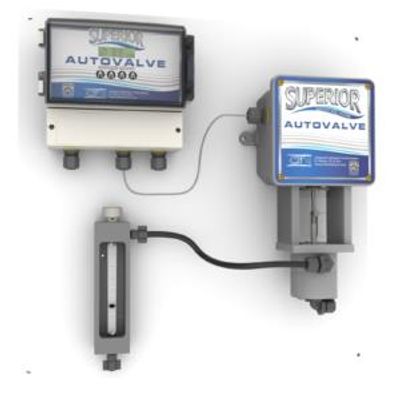

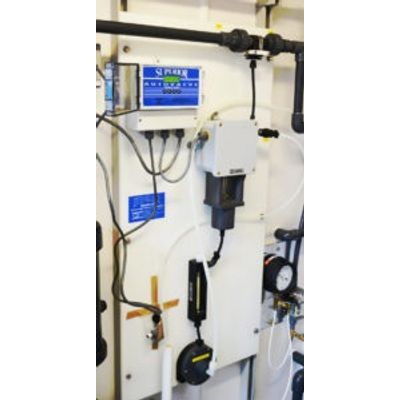

Take Control Of Your System. SUPERIOR AutoValve is a microprocessor based device for automatically controlling the feed rate of chlorine, sulphur dioxide, or ammonia and is available for automatic residual, flow proportioning, and compound loop control, using process water flow rate, residual setpoint, or a combination of those parameters.

Take Control Of Your System. SUPERIOR AutoValve is a microprocessor based device for automatically controlling the feed rate of chlorine, sulphur dioxide, or ammonia and is available for automatic residual, flow proportioning, and compound loop control, using process water flow rate, residual setpoint, or a combination of those parameters.
