China Joy Machinery and Equipment Limited products

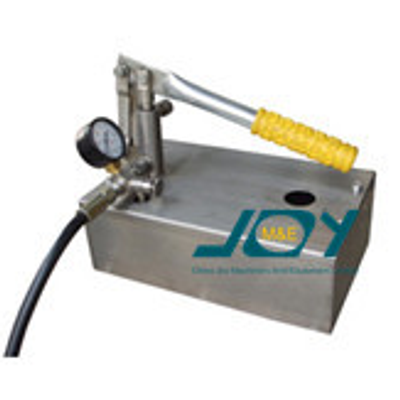

The JMEM model manual test pump is widely used in the following fields for pressure testing and leakage testing: Boilers, Pressure Vessels,Gas cylinders. Valves, Rubber tube and seal, Construction, Pipelines, Ships. Hose, Pumps, Chemical Equipment, Heat Exchanger, Air conditioner, Other Machinery Parts. The stainless steel pressure test pump could meet your . requirement of special test medium like sea water or other corrosive liquid.

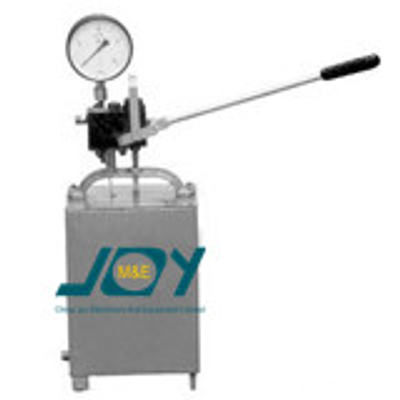

The JMEHManual Test Pump is widely used in the field of pipeline construction, rubber tube, valves, vessels, chemical equipment, oil and gas industry ,construction field, ships, and others. Test media: 5~60 Celsius degreewater or oil with viscosity<45mm2/s. The JMEH test pump is the vertical plunger pump and including the parts of pump body, plunger, handle, bracket, tank and sliding frame. As the samll size and light weight, it`s easy to use but with full function. Our unique stainless steelJMEH manual test pump could meet your requirements of special test medium.

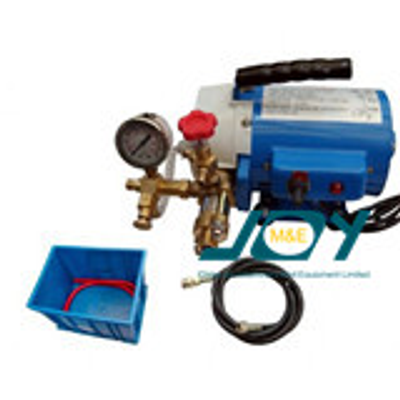

Base on the Japanese and Taiwai technology, we had updated and produced the JMED Motor test pump. As the small size and light weight, it`s easy to use but with full function. Our unique stainless steel JMED motor test pump could meet your requirements of special test media.
The JMED motor test pump is widely used in the field of rubber tube, valves, vessels, chemical equipment, oil and gas industry, construction field, ships, and others.

JMEA  Automatic electric test pump is our patented product in the year of 1990. It has 4 working cylinders with 2 high pressure cylinders with low flow rate, and 2 low pressure cylinders with high flow rate.  All the four cylinders are working at the beginning and the 2 low pressure cylinders  with high flow rate stop working when the pressure is higher than 16bar which assure  the pressure of hydro testing to be safe and steady. Considering the safety of the operator, we had installed safety valve and pressure controller. We could supply you with remote when the pressure is higher than 40Mpa. You could start and stop the electric test pump at the distance within 100m from the pump.

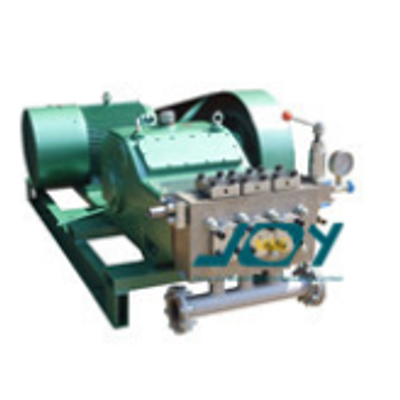

JOY M&E pumps` product line includes the world`s most dependable reciprocating triplex plunger pumps. This design allows a cost-effective pump to achieve high-efficiency and low-pulsation. JMEE pumps fieldproven dependability, efficiency, durability and versatility give users the best using experience. With highly efficient pumps and proven dependability, JOY M&E`s products are utilized world-wide in thousands of applications. A wide product range of plunger pumps are available: 3LPM to 1200LPM, 20bar to3000bar. Pumps are available in brass, nickel aluminum bronze, 316 stainless steel and duplex stainless steel. Transmission type: Belt drive/ Gear box /Speed reduction type. Driven type: Electric motor/ Gasoline engine/ Diesel Engine.

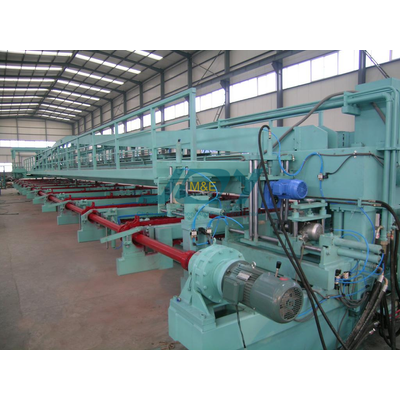

Tested pipe size:?10-?114 ( or customization ). Pipe length:3000mm~24000mm. Rated pressure:70-100MPa. Pressure holding time: 5s~30s adjustable. Applied radial seal and testing accuracy≤0.5MPa. Testing efficiency: 45-60s/pc. Applied Mitsubishi PLC,automatically loading and unloadThe computer will display, record and print the testing value and curve automatically.

Tested pipe size:?60-?1500 ( or customization ). Pipe length:3000mm~24000mm. Rated pressure:70-100MPa. Pressure holding time: 5s~30s adjustable. Applied radial seal and testing accuracy≤0.5MPa. Testing efficiency: 45-60s/pc. Applied Mitsubishi PLC,automatically loading and unloadThe computer will display, record and print the testing value and curve automatically.

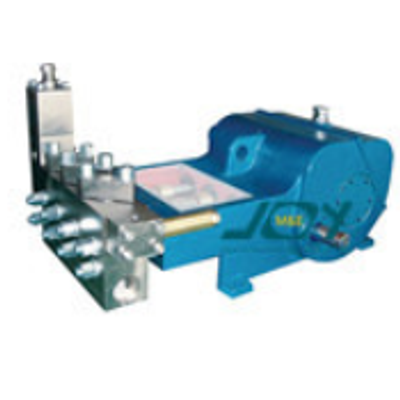

JOY M&E Pumps offers a complete line of high pressure plunger pumps for a wide variety of applications. JOY M&E pumps` product line includes the world`s most dependable reciprocating triplex plunger pumps. This design allows a cost-effective pump to achieve high-efficiency and low-pulsation.

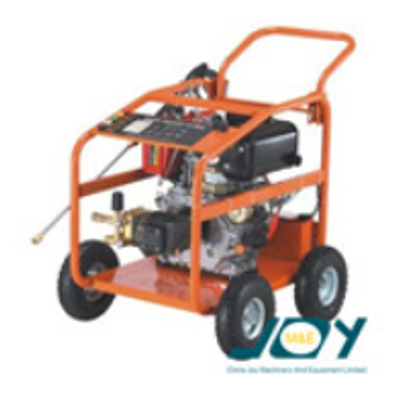

8mmx10M high pressure hose  3/8" OD. 3M suction hose. Spray gun and 5 nozzles(0°,15°, 25°,45° and chemical nozzle).

Advantage: Automatic suction, Pump can still be running for 30minutes when sprayer gun turned off.
