The Mirage™ Dissolvable Frac Plug utilizes high strength dissolvable material to provide a reliable, durable and cost effective design for temporary zone isolation during stage fracs in both horizontal and vertical wells. The Mirage™ Dissolvable Frac Plugs are constructed of 100% dissolvable material. It is a breakthrough design with patent to meet specific downhole requirements. The Mirage™ Dissolvable Frac Plug assures both exceptional isolation performance and reliable dissolution in both traditional brine and even fresh water environments , for both high and low temperature well.

The Mirage™ Dissolvable Frac Plug is engineered to provide effective temporary zone isolation during stage fracs in both horizontal and vertical wells. Constructed from high-strength dissolvable materials, the plug dissolves completely without the need for milling, offering an optimized solution for reducing rig time and costs. Rated to withstand pressures up to 10,000 psi and temperatures from 77 to 248℉, it offers versatile operation in diverse downhole environments including both traditional brine and fresh water wells. Additionally, the plug's design facilitates a large internal diameter that enhances flowback post-fracturing, and the minimum length design allows for faster dissolution with reduced material use. Various sizes are available to meet specific operational requirements. It is tailored to dissolve in as-per-real downhole conditions, providing customizable dissolution times to align with operational needs.

The Non-Explosive Downhole Cutter is a specialized tool designed for the oil and gas industry, specifically for cutting tubing, casing, and other downhole tubulars without the use of explosives.

This tool provides a safer, more efficient, and environmentally friendly alternative to traditional explosive cutting methods.

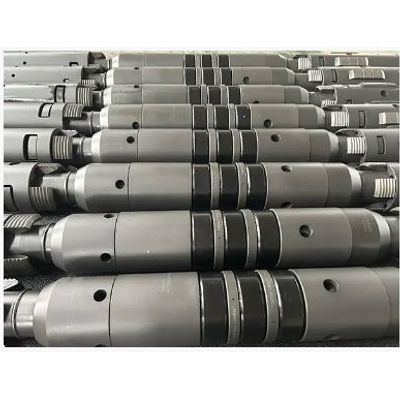

The model AS1X mechanical production packers from Vigor is an ideal tool for completion. The model AS1X is stretched and compressed to seal the tool, and only needs to turn a quarter of a turn to the right to achieve the tool to be sealed and unsealed. The model AS1X uses a combination rubber design, which makes the AS1X suitable for a variety of complex well conditions, if you are interested in our AS1X packer, do not hesitate to contact us.

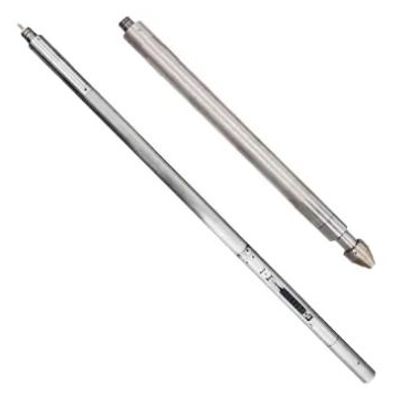

The Casing-Collar Locator (CCL) is crucial for depth control in cased-hole logging, essential for correlating depths between cased-hole and openhole logs. It utilizes a coil-and-magnet setup with a downhole amplifier, detecting collar enlargements in the casing via magnetic field distortions. This generates a voltage spike known as a collar “kick,” recorded at the surface. CCLs operate in wireline or slickline modes, with real-time slickline tools converting spikes to tension changes for immediate surface detection. Coiled-tubing applications use pressure spikes transmitted through fluid for detection due to weight constraints. Tractors in deviated wells can also provide depth control by producing a CCL during operations.
