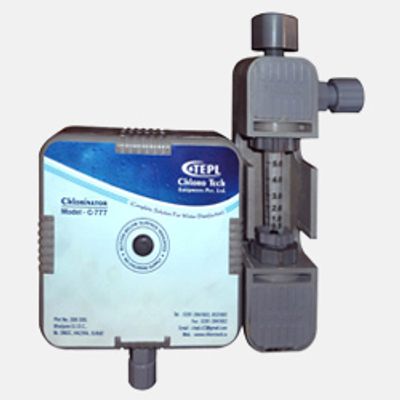

The Model No. C-777 is a high Quality low cost chlorinator of the solution feed, vacuum type. Proven design, rugged construction and use of best available materials assured precise gas feeding, low maintenance, dependable operation and long life. The chlorinator mounts directly on the cylinder valve by means of yoke clamp connection. Ejector is designed for low pressure operation and may be mounted directly in the pipe line.

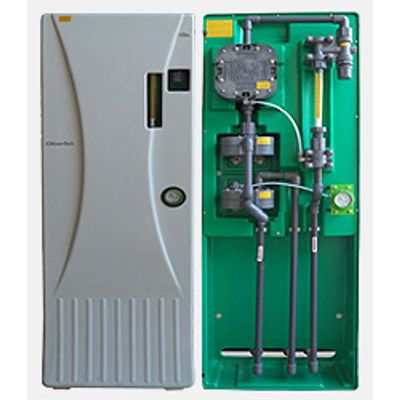

The New model MK- I is semi automatic gas type. Vacuum operated Solution feed Chlorinator designed to provide a continues & measured quantity of gas while in operation. It is suitable for use with chlorine. Sulphur dioxide or ammonia gas. Intermittent “Stop-Start”. Control or automatic “Shut-Off”. Can be achieved by interruption of the motive water supply. The Instrument is arranged for wall fixing & incorporates a gas tilter with flush mounted vacuum gauge to indicate the vacuum of the ejector entering the chlorinator a vacuum controller a variable area flow meter with integral control valve: an injector assembly with non-return valve & interchangeable nozzle & throat & a manifold mounted pressure gauge indicating the pressure of the operating water.

These instructions apply to the wall and panel mounted Automatic gas control vale. Component instruction manuals and supplemental data are referenced where applicable. Maximum capacity of the valve is related to:

Inlet connection: T - Port. Size: 3 / 4 “. Body: CS. Ball: Monel. Sheat: PTFE. Shaft: Monel. End Connection: Screw End. Bore: Full. Make of Valve: AUDCO.

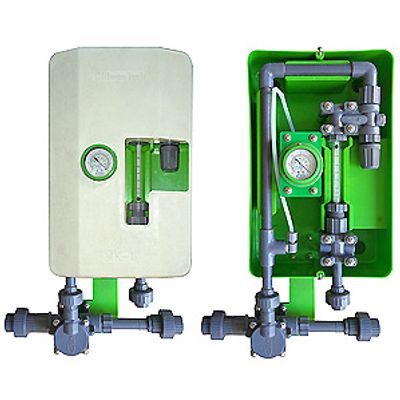

The vacuum change – over device ensures a continuous gas supply for gas dosing systems by changing the gas supply over in time from the empty supply battery to stand by battery.

MOC of Copper Tube as per ASTM – B - 88.

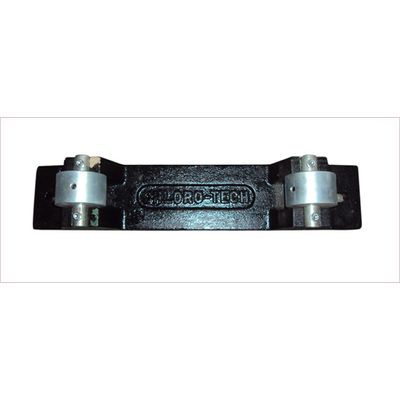

RSL – 65 Drum Roller tunnion fabricated from steel , epoxy coated to resist corrosion, Roller are cadmium plated and equipped with bronze bushing for ease of drum rotation. Frame have holes in end to attached to floor via anchor bolts or lag anchors. One set of two tunnions are required for each container.

Isolation valve and mounting yoke assembly for use with chlorine, sulfur dioxide, gas or liquid. Material : isolating valve-aluminum silicon bronze yoke-steel
