Chou Magnetics Co,Ltd products

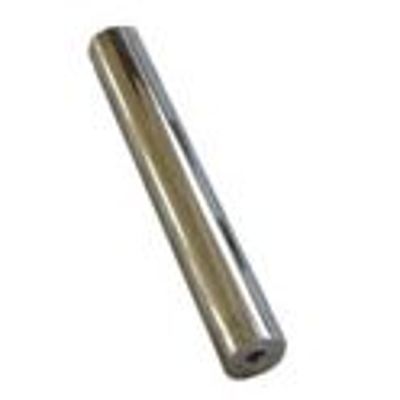

ChouMag Magnetic Filter Bar provides a solution for removing ferrous chips, fines, nuts, bolts, parts, damaging tramp ron High effective permanent magnetic filter bar can be installed at any point in solid, powder or liquid material flows to catch and separate very fine ferrous particles. It was used for purity from free flowing materials such as carbon black, drugs and chemicals, cosmetics, plastics, grains, spices, sugar, honey, salt.

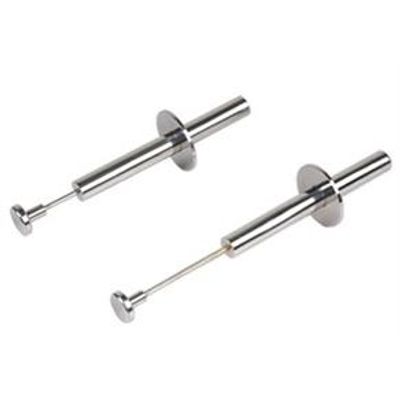

ChouMag Magnetic Sampling Probes are used for sample inspection. High intensity magnetic sampling probes are ideal for quality control personnel to quickly and easily carry out product purity inspections on any powder, granulate or liquids for ferrous and lightly magnetic contamination.

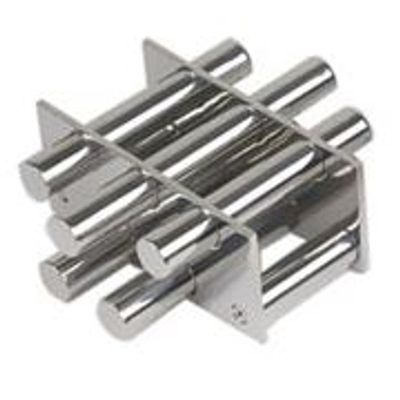

ChouMag Grate/Grid Magnets are designed for product purity for free flowing materials such as carbon black, drugs, chemicals, cosmetics, food products, plastics, grains, spices, sugar, honey, salt and minerals. These units are easily installed in any hopper or floor opening, chute or duct. The Magnetic Grids protect your processing machinery against dangerous tramp iron. Magnetic filter bars fixed onto a stainless steel frameworks, when anything containing iron substances passes through the framework, Iron particles are attracted to the bar magnets by magnetic fields. As a result, your equipment and facilities will be safe and sound, and your products will be safe for consumption.

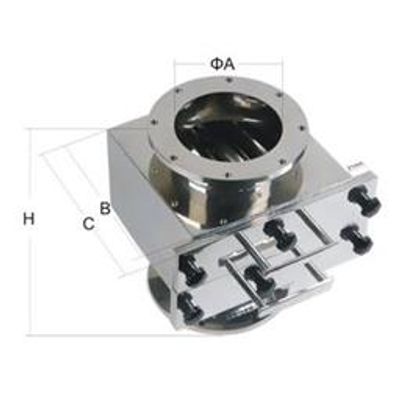

ChouMag Grate Magnets in Housing effectively remove ferrous fragments and fines from free-flowing material. They are designed for ferrous metal separation in a wide variety of dry processing applications. Housings are constructed 304 or 316L stainless steel. Wild stainless steel can be provided on request. Strong magnetic grates inside filter the flow and extract the unwanted ferrous metal. They are widely used in food industry and chemical industry. Inside the housing, it can be one layer, two layers or more layers high intensity magnetic grates in frames. To initiate cleaning, the operator pulls two handles on the front of the housing, removing the magnetic drawer from the product flow. As the drawer is pulled out, you can wipe off the accumulated metal from the tubes into a catch box for disposal.

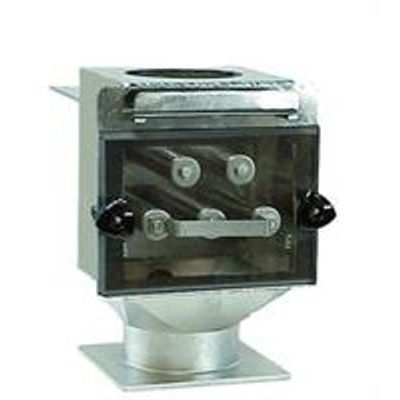

ChouMag Drawer Magnets provide valuable protection for injection molding machines, blow molding machines, and extruders. They are primarily used in plastic progressing to prevent tramp metal damage These drawer magnets provide economical continuous protection against costly machine downtime for all types of plastic resin processing machinery. Mounted directly on the feed throat of your plastic processing equipment, tramp metal is stopped from flowing into the machine by powerful magnets. Drawer magnets are available in different styles to suit specific application needs

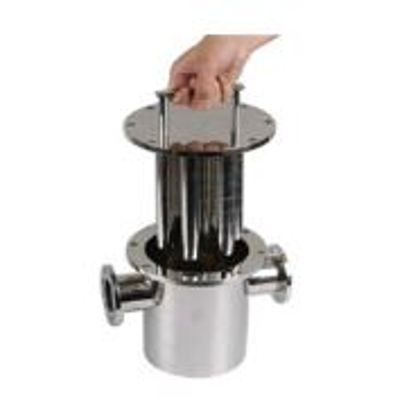

ChouMag Liquid Line Magnetic Traps are designed to extract the ferrous materials from the slurry or liquid raw materials in order to purify the material in the production process. Strong magnetic tubes filter the flow and extract the unwanted ferrous metal. The unit is simply connected to the existing pipeline via flanged or threaded ends. Simple and easy access is possible using the quick release lid. Cleaning of the magnets is easily accomplished by removing the cover plate of the housing and sliding out each magnet assembly.

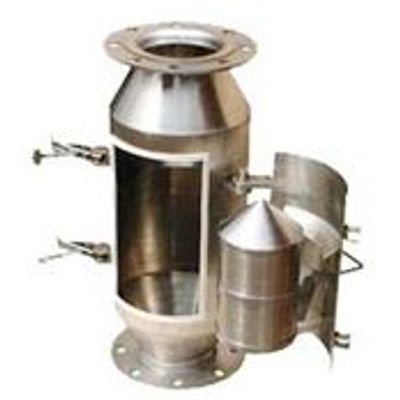

The Bullet Magnets are designed to be fit along the stainless pipeline. When the dry free-flowing products flow through the pipe, the contaminations are extracted onto the Bullet magnets. The units effectively remove iron contamination from the raw material in powder or granular, flour, chemical, plastic, food stuff, pharmaceutical and mineral materials.

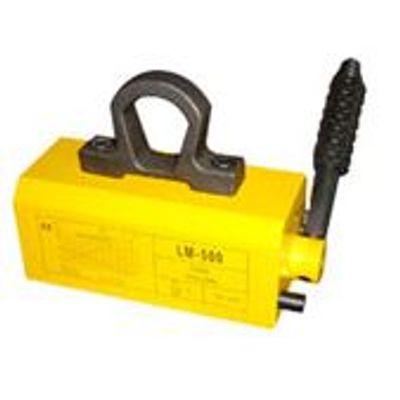

ChouMag Permanent Lifting Magnets are designed for moving, loading and lifting purpose. Equipped with super Neodymium magnets, the lifters are powerful. On and Off of the magnetic path is controlled by turning the manual handle. The lifters have the features of strong attraction, smaller volume, lighter weight, powerful lifting effort, easy and safe to operate, long-period effort and no need power supply. Lifting Magnets are widely used to load and transfer steel and iron for the factories, docks, warehouses, transportations, etc.

Chou Magnetics Co., Ltd has been a representative of a famous company in China for electro-lifting magnets for many years. We can supply you various electro-lifting magnets, such as round or rectangular; normal temperature or high temperature, single or cascade Please contact our sales person for a quick reply. OEM orders & Customer Designed Applications are also welcomed. 1, Round Scrap Lifting Magnets are suitable for transporting steel materials, chips, scraps, slabs, cast ingots, spherical steel and sheets.
