CHW Forge Pvt Ltd. products

CHW Forge manufactures Aluminium alloy rings upto a diameter of 2500mm and a maximum of 1000kg in various grades. Aluminium rings can be supplied in solution heat treatment, stress relieved & aged condition. These rings find application in aerospace & defence such as missile launch vehicles, aircrafts, supplementary tank/combat tank and so on.

Standard Flanges (Weld-neck, Slip-on, Socket-weld, Lap-joint, Blind and Screwed Types) are manufactured by CHW Forge to specifications of ASME B16.5, ASME B16.47, ASME B16.48, BS EN 1092, BS 4504, API-605, API-590, MSSSP44, DIN 2632 to 2638, DIN 2576, 2642, 2527, 2566. Flanges cover a full range of pressure ratings of these specifications (150 – 2500 psi for ASME & PN6-PN400 for DIN / EN flanges). As the best flange manufacturer, the non-standard flanges are made upto a diameter of 4500 mm and the weight not exceeding 5,000 kgs

CHW Forge manufactures tower flanges in rolled, proof machined and fully machined condition as per customer’s requirements and specifications.

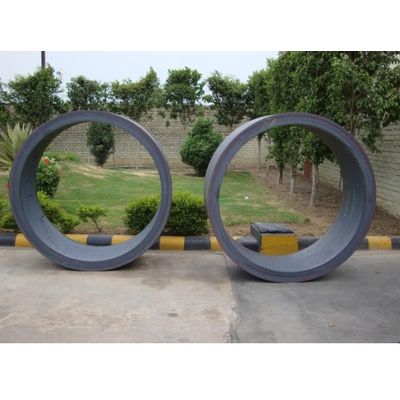

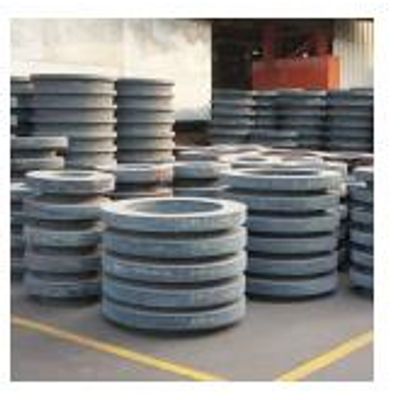

Ring rolling forgings is a process used to manufacture rolled rings with the help of rolling mills. Precision steel rolled rings are manufactured at CHW Forge to close tolerances which promotes minimum wastage of material and energy. The seamless ring rolling forging is produced on an automatic 4000 MT hydraulic press to form a hollow “donut”. This donut is heated above the recrystallization temperature and placed over the idler or mandrel roll. This idler roll then moves under pressure towards a drive roll that continuously rotates to reduce the wall thickness, thereby increasing the diameters (I.D. and O.D.) of the resulting ring

CHW Forge manufactures self reinforced nozzles (SR Nozzles) with plain end as well as with complex profiling in fully machined condition for Pressure Vessels designed to ANSI, ASME codes in all steel grades. Nozzles, hollow forgings and self reinforced nozzles are offered, in carbon steel, alloy steel, stainless steel and duplex steel as per capacity mentioned below:-

CHW Forge manufactures a wide range of forged gear blanks and crane wheels.

CHW Forge manufactures a wide range of forged blocks and flats.

Forged titanium has excellent strength as well as corrosion resistance. It is one of the most bio-compatible among all metal variants. Out of the mined titanium minerals, almost 95% is used for manufacturing titanium dioxide. This is a pigment that gets used in paints, cosmetics and even plastics. The remaining 5% of minerals get refined to make titanium metal. CHW Forge works according to the customers’ forging requirements. We ensure that the forging services meet the common standards.
