CIF Composites Inc products

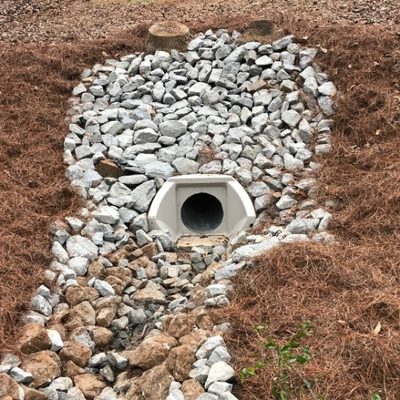

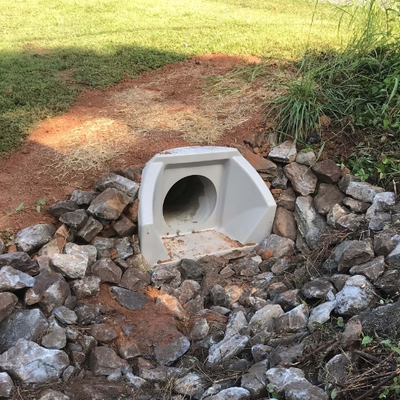

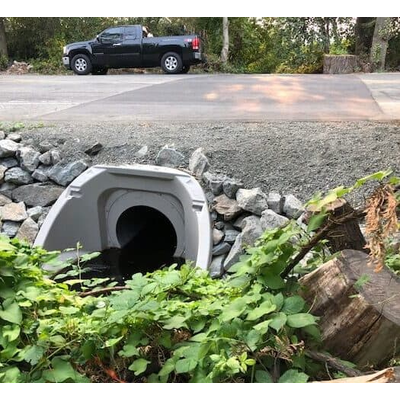

Pro-Eco-Lite headwalls are lightweight engineered inlet and outlet control structures used for flood, stream, erosion, debris safety, and animal control in pipe end systems. They are efficient and economical, made of composite reinforced polymer. They have been used in environmentally sensitive areas and are on the recognized product list for BC and Alberta.

1.5 series headwall to attach to most pipe types up to 300mm (12”). Available slope 45 degree slope. Approximate weight 40lbs.

2 series headwall to attach to most pipe types up to 450mm (18”). Available slopes 22(optional) and 45 degree(standard). Approximate weight 60lbs.

3 series headwall to attach to most pipe types up to 600mm (24”). Available slopes 22(optional) and 45 degree(standard). Approximate weight 180lbs.

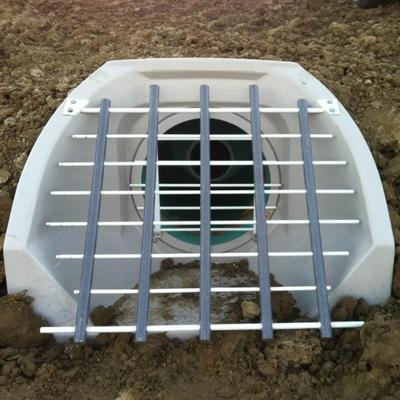

Removable weir boards. Attach to all pipe types. FRP stub or belled end available for concrete connection. Maximum pipe size 24”. Color concrete beige.

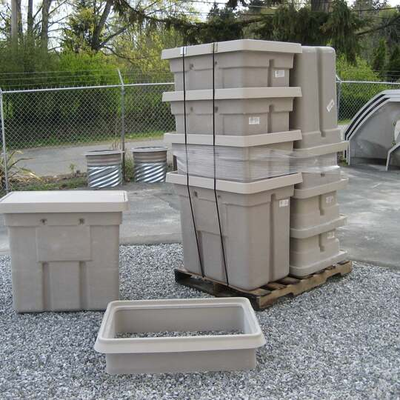

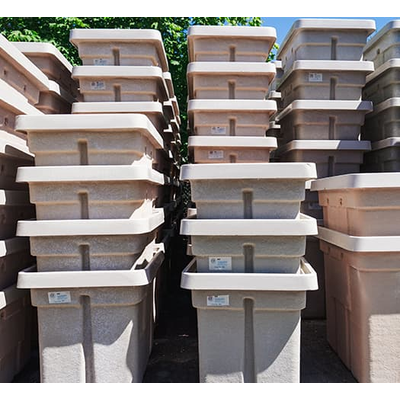

2335PL: 890 mm (35") deep service box. Weight = 140 lbs. 2335PLA: 890 mm (35") deep bottomless service box. Weight = 139 lbs.

150SBL: 711 mm (28") deep service vault, X-member and two lids. Weight = 295 lbs. 150SBLOC: 711 mm (28") deep service service vault, X-member and two lids with 3M locator. Weight = 295 lbs. 150SBLALOC: 711 mm (28") deep bottomless service vault, X-member and two lids with 3M locator. Weight = 292 lbs.

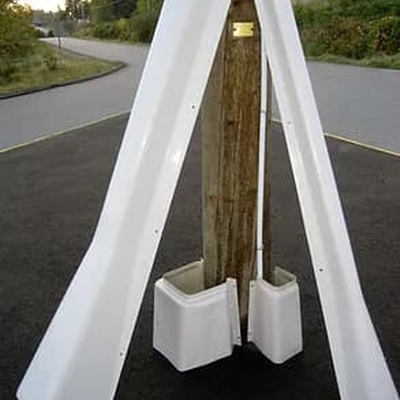

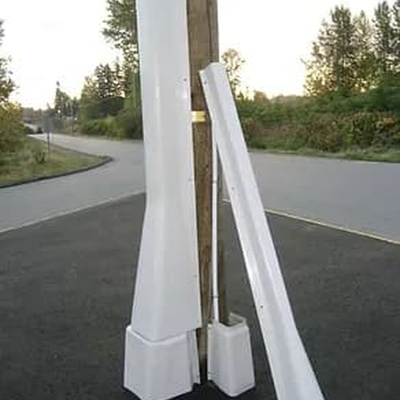

951 series pilasters and guards are manufactured to accommodate one 4” tel conduit. Available 1 way pilaster model number: 951 WP. Available 1 way guard model number: 951WG. Available 1 way cover model number: 951WC.

953 series pilasters and guards are manufactured to accommodate three 4” tel conduits. Available 3 way pilaster model number: 953WP. Available 3 way guard model number: 953WG. Available 3 Way cover model number: 953WC.
