The hammer mill is a machine that has a rigid base adapted to support the moving masses of which is available. On the structure, welded sections, which the seats for the media that support the electric motor connected to the axis by means of V-belt drive. The case supported by the crankcase is constituted by a central body made of thick sheet metal that constitutes the lower part of the grinding chamber and the seat fixing of the supports to double body axis of the cast iron rotor which is balanced to ensure the perfect axiality of rotation.

The horizontal drum coolers have been designed specifically for cooling and uniform drying of granular or pulverulent products of any nature; They are fitted with suction pump of suitable power able to realize the heat exchange air product that allows the cooling to room temperature. The drum with the fins at each rotation lifts the product and then allowing it to fall in a cascade. During this phase the product is invested more times from the air stream in countercurrent until complete cooling.

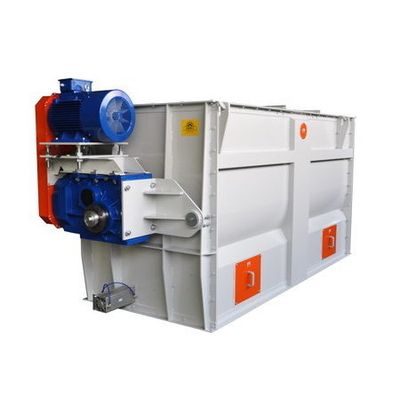

The horizontal mixer consists of a sheet steel case, with pressed and calendered, externally reinforced with profiles. The heads, which are also made of steel sheet reinforced with vertically profiled, are connected to the case by bolting. The reel of the mixer is constituted by two concentric helices of different diameters and to the contrary, mounted on the central axis. The latter is obtained by the working of a full round steel C40, on which subsequently the bearings will be installed. Plain cover bolted with dust seals and doors equipped with electric grills and safeties rispettanti all accident prevention rules. The riduttoreviene mounted on the central axis and fixed by clamping appropriate, also to avoid misalignment of the shaft applies a torque arm attached to the body of the machine, which ensures proper operation. The transmission of the motion between the motor and gear unit is by means of pulleys and belts protected by a casing.

The vibrating screen is constituted by a metal outer structure, made with thick tubular, which supports, via anti-vibration elements, the separation chamber. The latter is constituted by a series of plates bolted pressopiegate which constitute the collection basin of the product, superiorly protected by lids. Within the same room is the sieve content, the characteristics of which are variable and in accordance to the product to be treated. The vibrating screen has two vibrators of different sizes depending on the model. The special fixing system allow adjustment of vibrators allowing the amplitude adjustment direction and swinging.

The cylinder is composed of corrugated metal sheet and calendered panels of structural steel with high finish of zincoche it guarantees a long resistance to atmospheric agents. The structure is reinforced externally by sheet steel uprights strutturalepressopiegata of variable thickness and sections. The assembly of the plates and the uprights is done with special high-strength bolts treated with proceedings against corrosion.

The TC chain conveyors are built in steel with flanged sides and bottom sheet interchangeably. The steel chain, with cemented bushings and vanes interspersed with scrapers, is accompanied by guides polizene. Headstock and deflection head are both made of bolted steel elements. On the deflection head are mounted turnbuckles with sliding supports. The crowns, driving and crowds, are mounted on axes C40 and cast iron supports.
