CK Airtech India Private Limited products

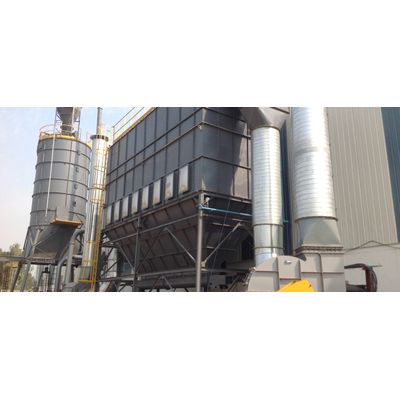

Bag filters offer high efficiency, less maintenance and longer equipment life. The bags are sealed using snap rings to ensure easy removal of the bags and cages. Automatic cleaning is done by pulse jet (compressed air) through Venturi nozzles. Our Bag Filters can proficiently handle high dust loads, moisture-laden dust, and flue gases at high temperatures as we design and use the most suitable selection of filter, fabric, and filter area from our years of experience.

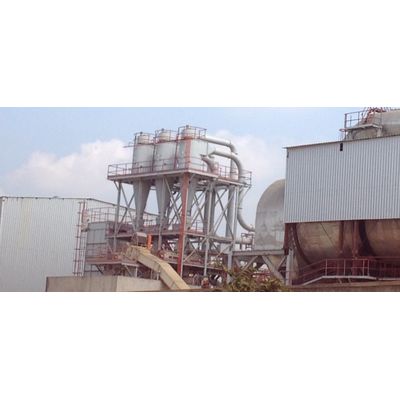

Our high efficiency Cyclones are effectively designed to remove particulates of different sizes & dust load from the gases. Cyclones can be designed for a pressure drop ranging from 50-200 mm WG depending on the efficiency and particulate sizes to be filtered. We can achieve efficiency of more than 99% if all operating conditions along with particle size analysis are known.

Polluted gas enters the scrubber through a Venturi throat where it comes in contact with water. The air at the throat, moving at a high velocity intercepts the water droplets, where the dust particles are captured and removed from the gas stream. The polluted water is then separated in a cyclonic separator and removed in a recycle tank. Continuous addition of small amounts of water limits the solid concentration in the recirculation water. We use different Venturi throats, water injection methods and cyclonic separator designs to suit the specified application. Our high velocity, compact separator helps to optimise the cost and space requirements without compromising efficiency.

Packed bed scrubber is used for removing hazardous gases, fumes or mist pollutants from gas stream. For design of packed bed scrubber we have to consider many factors like pollutants, chemistry, heat of reaction, solid formation etc. and each application must be visualised carefully to ensure chemical compatibility of all components.

Our collectors are compact and mobile (on wheels) with low noise levels making it suitable for a wide range of indoor applications. The filtering capacity is as high as 3 microns with an efficiency of 99%, which is in complete accordance with indoor air quality standards. They are energy efficient, easy to install and can be maintained with online reverse Pulse jet cleaning of filters which ensures high efficiency. Since these systems have cyclonic entry, the bag life is much better and has the capacity to handle high dust loads.

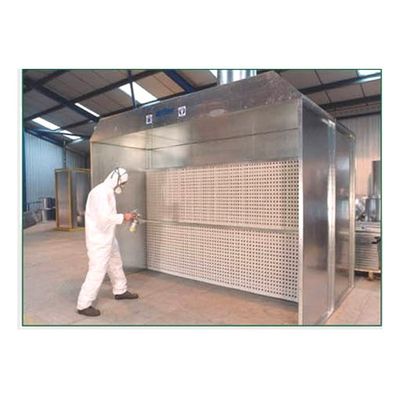

A Wet Spray Booth has been designed to improve finishing to international standards and to meet the ever increasing need to protect our environment. This works on the principal of continuously recycled water running down from the spray booth on a stainless-steel curtain. The over-sprayed paints and lacquers are trapped in the water by a powerful extraction created by the centrifugal fans.

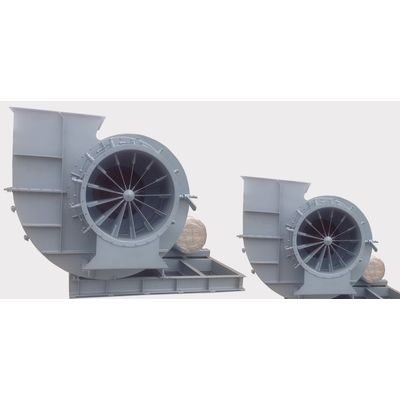

CK Airtech`s centrifugal fans are the latest generation fans with a proven and tested design. The impellers are backward curved with radial blades which prevent sticky dust from adhering to the blades. They are highly efficient with little noise by virtue of the blade design & volute casing. Well designed to meet high static pressures, high volumes and high dust concentrations.

Pneumatic conveying is a system where solid material is conveyed using air. There are several ways for material injection in the system as well as discharge and the methods are selected based on the product nature and system requirements.

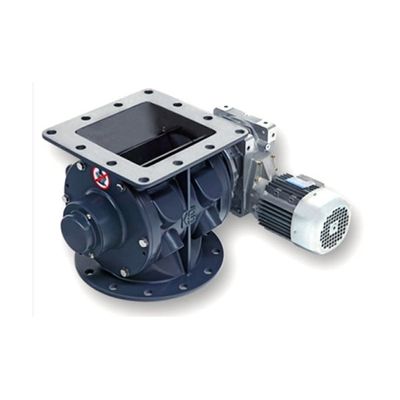

Rotary Airlock valve is used for the discharge of solids while avoiding gas flow through the valves.

We offer wide range of screw conveyors for different material handling applications.
