Classic Filters Ltd. products

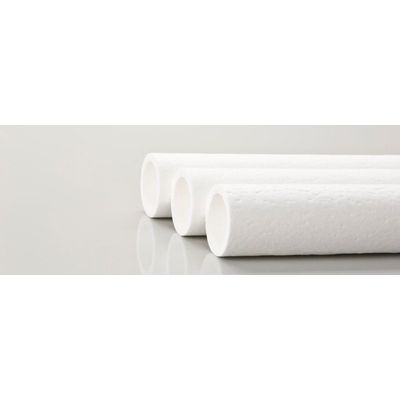

Disposable bonded microfibre filter elements are manufactured from precise mixtures of borosilicate glass microfibres to the very highest standards of quality control. These elements offer exceptional filtration efficiency at very low pressure drops and being +90% void volume give a very long service life. The elements are bonded to impart high strength and eliminate fibre shedding and the choice between the different binders available will depend on each application. Disposable elements are self-gasketing and sealed into the filter housing by axial compression.

Stainless steel filter elements are comprised of five layers of 316 mesh, sintered together to form an integrated porous element. The middle mesh is of very fine gauge and determines the filtration rate, with five inner and outer layers of coarser mesh overlaid to give support and protection.

PE and PTFE filter elements are available to ensure a full complement of filter media for our disposable filter elements and stainless steel filter types.

Our disposable filters offer end-users the ultimate ‘convenience’ solution to filtration, allowing replacement to be performed in seconds, thus minimising downtime of equipment and process. A selection of filter element grade and types are available, held within permanently welded filter housings which are supplied fully assembled and ready for use.

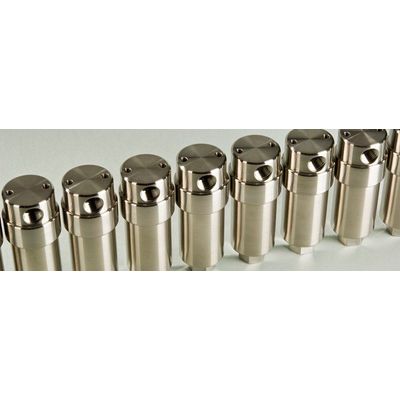

With the widest selection of stainless steel filter housings available, Classic Filters is almost certain to have the housing that meets your particular needs. If not, we’ll build you one from scratch. As well as our standard filter housings, we also offer custom-made filter housings in plastic to suit your OEM or special application. While we traditionally supply the instrumentation and analyser sample system markets, our filters can be used is a huge range of industries and applications
