CNP Pumps India Pvt Ltd products

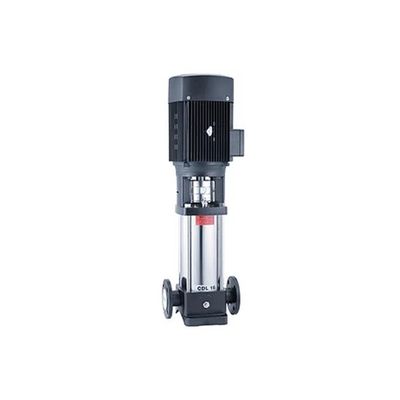

CDL Series is a sheet metal Stainless Steel Vertical Multistage Centrifugal Pumps offered by CNP. The pumps are driven by standard electrical face mounted motor up to 7.50 kW and flange mounted for ratings higher than 7.5 kW.  CDL Series pumps are available with Inlet-Outlet and pump head in cast iron material.  Pumps are available in single Phase as well as three Phase.

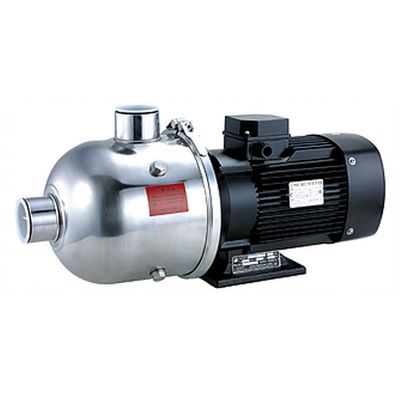

Horizontal Multi Stage Pumps have compact design, low-noise and long service life. They are easy to install and operate. Energy efficient Horizontal Multistage design with stainless steel stamped-welded impeller and diffusers. Pumps are supplied with single phase or three phase motors. Single phase motor is available up to 2.2 kW.  Motors are IE 2, Class F and IP55 as a standard. Standard supply for liquid temperature up to 70?, high temperature pumps are available on request.

Stainless steel multi-stage submersible pump is equipped with a submersible motor which can replace tranditional long axis Deep-well pump.The pump is also equipped with a check valve to protect itself from reflux and water hammer.

These pumps are compact, highly reliable, low maintenance and easy to install. This immersion multistage pump has Flow Range (Q) 0.4-55.0 M3/hr and Liquid Temperature -15°C - +120°C.

Light weight & sturdy structure Energy efficient . Pump design according to DIN24255, All the parts contact with liquid made of stainless steel with high efficiency. Standard TEFC IEC B35 motor driven, single phase up to 2.2kw. Max. working pressure 10 bar.

Horizontal Multi Stage Pumps has compact design Low-noise and long service life, Easy to install and operate energy efficient Horizontal multistage design with stainless steel stamped –welded impeller and diffuser. Pumps are supplied with single phase or three phase motors. Single phase motor is available up to 2.2 kW. Motors are IE 2, Class F and IP55 as a standard. Standard supply for liquid temperature up to 700, high temperature pumps are available on request.60 Hz pumps are also available on request, please confirm performance curve before selection.

TD-i series of pump is single-stage inline centrifugal pumps equipped with standard motor and mechanical seal. Pump body is equal to a section of pipeline; pump casing is of cast iron and impeller is SS 304 or CI construction. Pump is suitable for transfer and pressure boosting of high volume of water.

NISO-k series of pump is single-stage centrifugal pump and features axial suction and radial discharge; the pump body is fixed by base. Pump has back pull out design which facilitates easy servicing without disturbing the pump body and piping. Impeller is with optimum design; large inlet avoids whirlpool; low NPSH pump; works stably with very less noise. End Suction Centrifugal Pump back-pull-out design Sturdy structure with low noise Easy to maintain and long service time

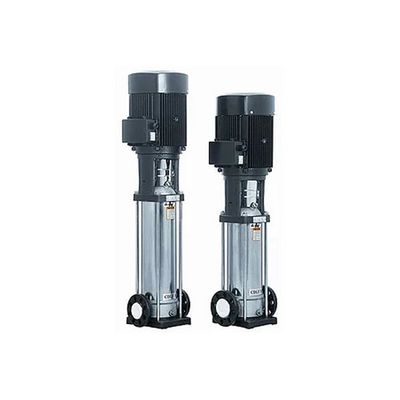

CDLF Series is a sheet metal Stainless Steel Vertical Multistage Centrifugal Pumps offered by CNP. The pumps are driven by standard electrical face mounted motor up to 7.50 kW and flange mounted for ratings higher than 7.5 kW. CDLF Series Pumps are available in complete SS304 and SS316 material. Pumps are available in single Phase as well as three Phase.

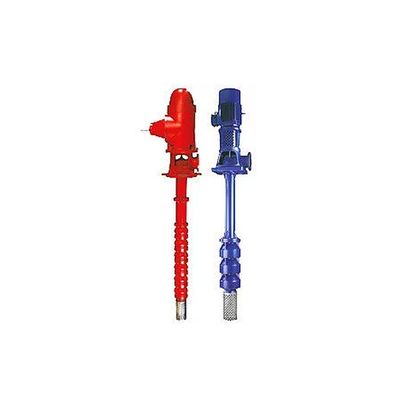

Vertical Turbine Pump is available in variety of configurations, construction and material to suit applications, Open or enclosed llneshaft construction, Enclosed or semi-open keyed impellers, Above ground or below ground discharge flanges Multiple drives: a. Electrical motor | b. Engines with right angle gear drives | c. Steam turbines Separate axial thrust bearing assembly.
