Colasit AG products
Plastic Fans

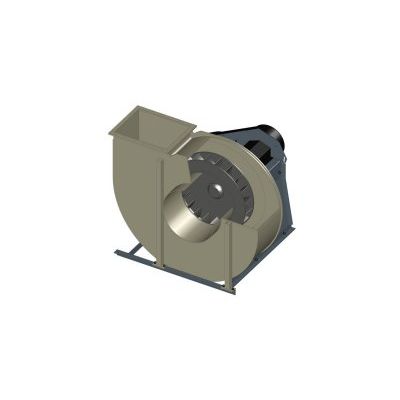

Colasit - Model CMV-Eco 125-400 - High-Performance Standard Fans for Air Ventilation
Performance: Flow rate: min. 150 m3/h to max. 13`500 m3/h. Static pressure: min. 50 Pa to max. 3`000 Pa. Efficency: max. 75 %. Inlet / Outlet-Ø: 125, 160, 200, 250, 315, 400 mm.

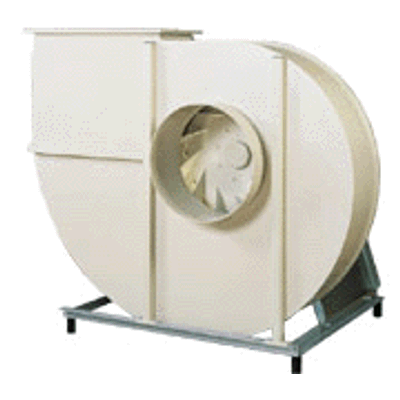

Colasit - Model CMV 450 -1250 - Medium Pressure Radial Fan
Flow rate: min. 2`900 m3/h to max. 127`000 m3/h. Static pressure: min. 200 Pa to max. 1`900 Pa. Efficiency: max. 64 %. Inlet-Ø: 450, 500, 560, 630, 710, 800, 900, 1000, 1120 mm.
Colasit - Model CHVN 315 -1250 - High Pressure Radial Fan
Self-supporting plastic construction, welded, available in PP, PPs, PPs-el, PVC, PE, or PVDF. Impeller with 12 backward-curved blades which are mechanically welded and available in PP, PPs-el or PVDF. Each impeller is tested on an overspeed test stand above normal rate and balanced dynamically and statically in two ranges. Balancing quality < Q 6.3. Torque transmission is via a standard taper lock system. The tested design permits tip speeds of up to 90 m/s.
Colasit - Model CMMV 450 - 1250 - Medium Pressure, Medium Range Radial Fans
Performance : Flow rate: min. 2`900 m3/h to max. 132`000 m3/h. Static pressure: min. 200 Pa to max. 4`000 Pa. Efficiency: max. 68 %. Inlet-Ø: 450, 500, 560, 630, 710, 800, 900, 1000, 1120, 1250 mm.
Model CMHV 450 -1250 - High Efficiency Medium Pressure Radial Fan
Flow rate: max. 100`000 m3/h. Static pressure: max. 3`000 Pa. Efficiency: max. 80%.Model CHVK 63 -160 - High Pressure Radial Fans
Flow rate: max. 2`200 m3/h. Static pressure: max. 3`300 Pa. Efficiency max. 80%.Model CHVS 63 -250 - High Pressure Radial Fans
Flow rate: max. 5`300 m3/h. Static pressure: max. 7`000 Pa. Efficiency: max. 80%.Model CRDV 200 -315 - Roof and Inline Duct Fans
Flow rate: max. 5`200 m3/h. Static pressure: max. 1`700 Pa. Efficiency: max. 70%.Model CDVA 400 - 710 - Roof-mounted Fans
Flow rate: max. 17`000 m3/h. Static pressure: max. 500 Pa.
