COMO Filtration Systems products

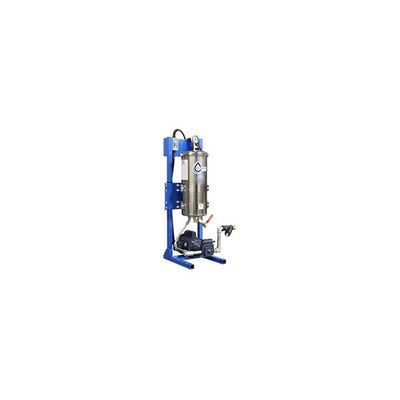

The Model 100 is a turnkey filter cart designed for unattended filtration. With dozens of filter options, you can meet your exact cleanliness goals—as low as 1 µm and 20 ppm water. Each COMO Filter holds up to 20 pounds of dirt and 1 gallon of water, so you can extend fluid life and reduce downtime with fewer filter changes than the competition.

The Model 120 is a turnkey filter cart designed for unattended filtration. With dozens of filter options, you can meet your exact cleanliness goals—as low as 1 µm and 20 ppm water. Each COMO Filter holds up to 20 pounds of dirt and 1 gallon of water, so you can extend fluid life and reduce downtime with fewer filter changes than the competition.

The Model 165 is designed for kidney-loop filtration of a single machine. With dozens of filter options, you can meet your exact cleanliness goals—as low as 1 µm and 20 ppm water. Each COMO Filter holds up to 20 pounds of dirt and 1 gallon of water, so you can extend fluid life and reduce downtime with fewer filter changes than the competition.

The Model 165-400 excels in applications with large contaminants. A filter-bag removes large particles before the COMO Filter polishes the fluid to any cleanliness level you desire. Each COMO Filter holds up to 20 pounds of dirt and 1 gallon of water, so you can extend fluid life and reduce downtime with fewer filter changes than the competition.

The TS1 is a coalescer-separator designed to remove tramp oils from metalworking fluids and wash-water. We build our systems with larger separation tanks and more coalescing media than the competition. This ensures COMO can remove tramp oil, prevent microbial growth, and extend fluid
life in the most difficult applications.

The TS3 is a coalescer-separator designed to remove tramp oils from metalworking fluids and wash-water. We build our systems with larger separation tanks and more coalescing media than the competition. This ensures COMO can remove tramp oil, prevent microbial growth, and extend fluid life in the most difficult applications.

COMO’s Oil Recycling Systems reduce filter element consumption by processing batches of contaminated oil through three phases. The heating and settling phases remove most of the water and particulate contamination without loading the filters. Then, the filtration phase polishes the fluid to cleaner-than-new condition.

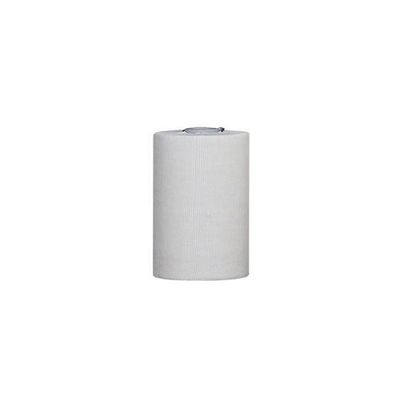

Housing Size: C-150. Recommended Flow Per Filter: 0.5 - 1.5 GPM Per Filter. Maximum Flow Per Filter: 2.0 GPM Per Filter.

Flow (GPM): ≤ 1.0 GPM. Assembly Dimensions: 9"W x 7"D x 13"H. Weight: 11 lbs. Minimum Fluid Pressure: 40 PSI. Maximum Fluid Pressure: 80 PSI. Material (Standard): Chrome Plated Steel. Material (Optional): Powder Coated Steel. Applications: Engine Oil.
