Compass Water Solutions (CWS) products

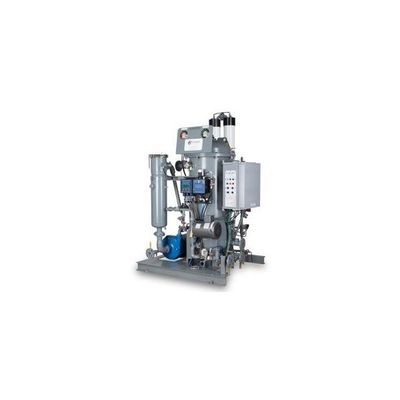

ULTRA-SEP is a two-stage system. The fi rst stage effi ciently removes free oil using our HELI-SEP coalescing matrix separator, which is familiar to ship operators worldwide, with more than 20,000 in service around the world. The second stage SPIR-O-LATOR technology provides a positive physical barrier to break emulsions and provide continuous less than 5ppm discharge. In fact, oil cannot penetrate the SPIR-O-LATOR, so no oil will ever spill.

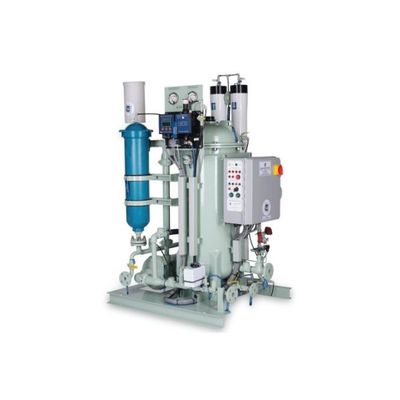

ULTRA-SEP C Series Bilge Water Separators meet your need for a small unit with a lower capital cost. Ideal for engine rooms where your installation space and budget are tight. C Series provide the same Positive Physical Barrier and continuous less than 5ppm discharge as Compass Water Solutions larger . ULTRA-SEP systems but in a more compact size.

ULTRA-SEP G Series Bilge Water Separators meet your need for a small unit with a lower capital cost. Ideal for engine rooms where your installation space and budget are tight. G Series provide the same. Positive Physical Barrier and continuous less than 5ppm discharge as Compass Water Solutions larger. ULTRA-SEP systems but in a more compact size.

Three-stage coalescer-type system. Removes non-soluble oil, solids, and entrained air from an oily water solution. 20 gallons per minute (0.5 m3/h). Continuous and intermittent operation. Automatic control capability for discharging accumulated oil.

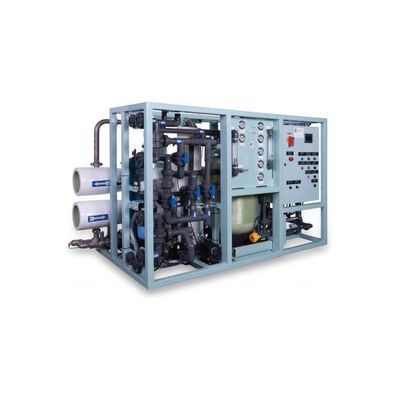

Convenience, Performance and Ease of Maintenance in Standard Confi gurations. Standard systems range from 5 m3/day (1,390 GPD) to 30 m3/day (7,925 GPD) and handle a wide range of salinity (36,000 TDS to 45,000 TDS), with temperature ranges (0oC / 32oF to 35oC / 95oF). The closed-loop control system is built with NEMA 4X integrity. The Series II system has a compact footprint and low overall height making it an excellent choice for locations where space is valuable.

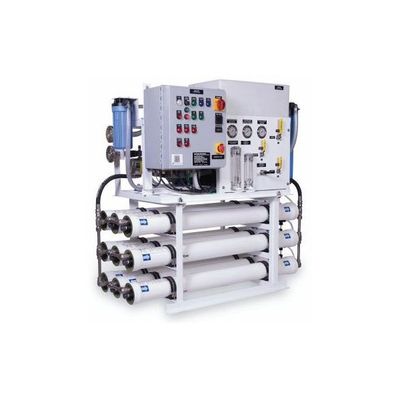

Convenience, Performance and Ease of Maintenance in Standard Configurations. Standard systems range from 25 m3d (6,600 GPD) to 100 m3d (26,400 GPD) and handle a wide range of salinity (36,000 TDS to 45,000 TDS), with temperature ranges (0°C / 32°C to 35°C / 95°C). The closed-loop control system is built with NEMA 4X integrity and can be operated in fully automatic or manual modes from the same standard controller. (Standard single skids and modular configurations are available.

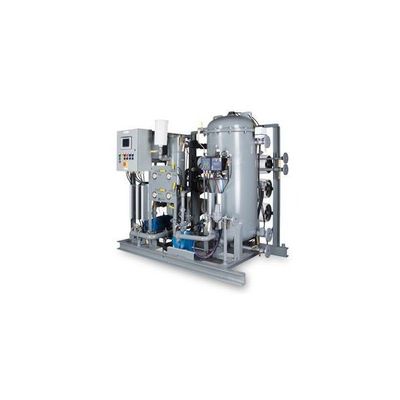

Custom designed to meet the Customers` needs and specifications. Available in skid or modular design. Designed to operate virtually hands free with simple manual or automatic operation. Available in in Freshwater (>500 PPM) or Technical Water (greater than 10 ppm). Ergonomic designed provides easy access to all components. Available in sizes to Customer`s specifications.

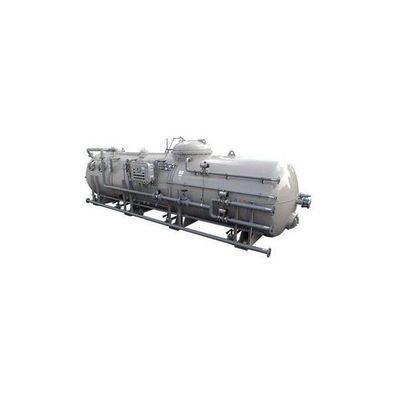

CRP-SEP Series Oily Water Separators are a progressive single-stage, horizontal separator designed to efficiently remove nonsoluble oils, solids and entrained air from PRODUCED WATER and SLOP WATER with capacities up to 100 m3/h (440 GPM). CRP-SEP delivers effluent with less than 15 ppm of oil. When environmental regulations require less than 5 ppm discharge, SPIR-O-LATOR® Membranes can be added as a second phase to guarantee less than 5 ppm of oil.
