Completion Oil Tools Private Limited products

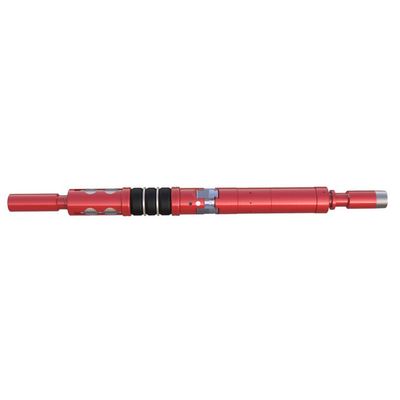

Molded seal Hydraulic Liner Hanger with integrated packer of FLEX-GRIP series is a unique Hanger system ideal for cemented liner application, built on a single-piece mandrel without any internal connection resulting in elimination of potential leak paths.

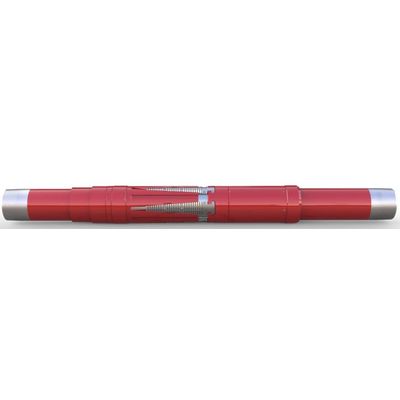

Completion Oil Tools® Mechanical Set-Flex Liner Hanger with J2J® latching mechanism is set by giving right-hand rotation; with fully secured slips enclosed in pocket of cone. It is available in both rotational and Non-Rotational type. Staggered cone design gives maximum bypass area which helps in running in and circulation. Automatic J2J cage feature allows hanger to return to the run- in position, should the hanger set prematurely while running in the well.

Mechanical liner can be set with either right or left- hand rotation, depending on the type of setting tool or design. Staggered cone provides maximum bypass area which results in ease of running in and circulation. Automatic J-cage permits hanger to return to the run-in position, should the hanger set prematurely while running in the well. The slip cage has a “J” slot and high strength drag springs to manage the movement of the slips with the cones. Mechanical Set Liner Hanger (LHM®) are set through manipulation of the work string (pick-up & 1/4 right hand turn) line up the cones and the slips, and a further slack off sets the slips onto the casing wall. In liner hanger we have four types e.g.: Double Cone & Non rotational, Single Cone & Non rotational, to suit various applications.

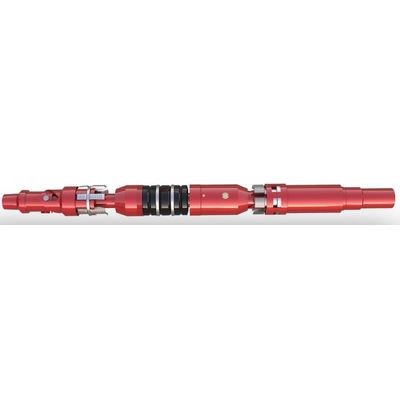

Hydraulic Set Production packer of Completion Oil Tools® is a straight pull shear packer.  The HYDRO-1 packer is an industry standard, fully hydrostatic, hydraulic set and single string retrievable packer. It can be used in the following applications: Production, Injection, and Zonal Isolation.

Hydraulic Set High Angle Production Packer CT-HYDRO 2 is compact, economical, packer designed for low to medium-pressure applications.

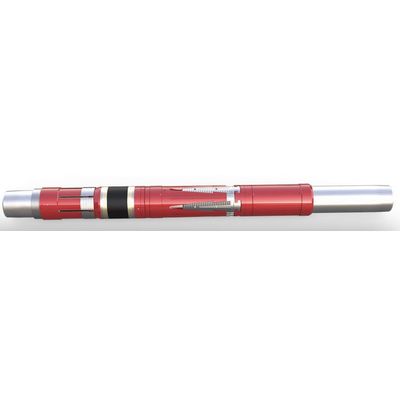

10K Mechanical Set Production Packer or MECH-PAC® is a high performance Full Bore Single String Retrievable Packer. It is specifically designed to perform reliably in high pressure fracturing and production applications.

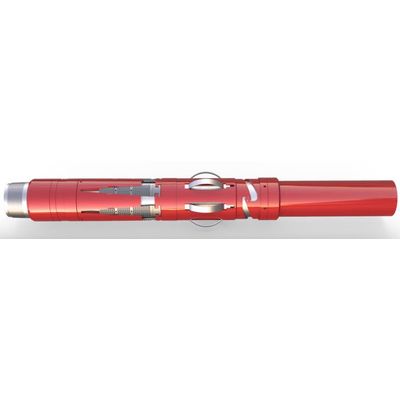

Mechanical Retrievable Single Grip Packer is a retrievable set down packer that features a large by pass area through packer.
The packer is available in a single grip version and a double-grip version (with hold down button).

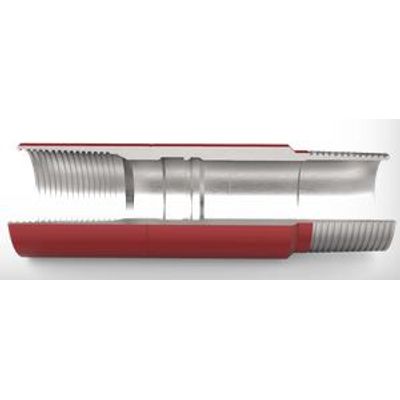

X and R landing nipples are run into the well on the completion tubing to provide a specific landing location for the subsurface flow control equipment. The common internal profiles of these landing nipples make them universal. COMPLETION OIL TOOLS® CT-LNP-X and CT-LNP-XN landing nipples are designed for use with standard weight tubing. CT-LNP-R and CT-LNP-RN landing nipples are designed for use with heavy weight tubing. (The N designates no-go nipples).

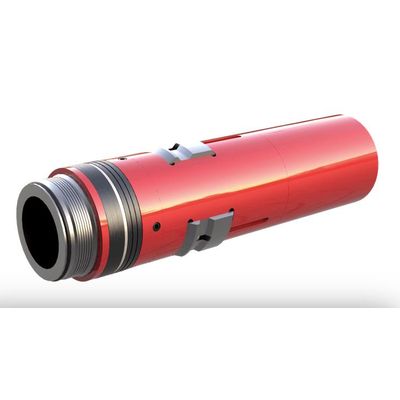

LOCK MANDREL of COT is a device capable of holding pressure differentials from above or below when set at any depth in a corresponding Landing Nipple Profile of matching size & type.
