CON-V-AIR products

The CON-V-AIR eductor makes it possible to carry out pneumatic transfers of abrasive products at low flow rate and continuously. When in positive pressure, such a system makes it possible to eliminate the backflow (blowback) at the point of material entry. This process facilitates the maintenance of the cleanliness of the premises. By using pressurized air, an eductor allows the transport of solid bulk without the use of moving parts. An eductor offers many advantages compared to a rotary valve:

The CON-V-AIR direct injection system is used to dose chemicals from solid bulk continuously, directly at the application points, without requiring a mixing tank. This system in the water treatment sector and the products that are typically used are powdered activated carbon (CAP/PAC), magnesium oxide (MgO), sodium carbonate (Soda Ash), dry polymers and several others. This operation requires a constant flow rate and pressure from the service water line provided by the factory and the concentration of the solution at the outlet of the hydroejector is variable according to the speed of rotation of the metering screw. This completely autonomous system will be able, with the help of its PLC, to communicate with the controls of the plant which will simply request a quantity of chemicals and the system will adjust automatically and without delay. All the electrical components of the device will be pre-wired and the dosing system is factory tested before shipment.

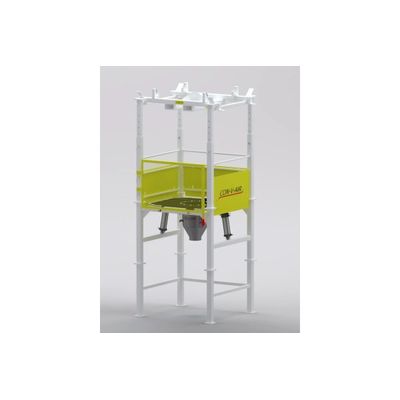

Our Bulk Bag Unloading station allows continuous unloading of bags with a volume of 500 kg to 1500 kg (1000 lbs to 3500 lbs), reducing operator contact with the products being handled and eliminating any high load handling. Our stations are built tough and durable and come in two main variants, one that incorporates a manual or electric hoist and trolley lifting mechanism, and a second option that allows the use of a forklift to position the bag.
