Concept Equipment Limited products

ASTM D 4108, ASTM D 7140, BS EN 367, CAN/CGSB 155.20, ISO 9151. The TPP-2 Flammability Test equipment is used to test protective clothing and materials against heat and flames.

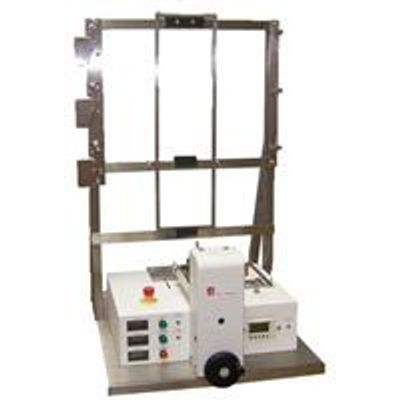

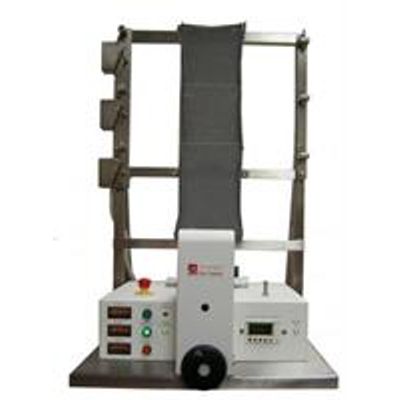

The EN ISO 6940 and 6941 tests are extensively applied throughout industry especially in the textile and apparel manufacturing industries, where it is widely used for the testing of fabrics and other woven material products. The test measures the rate of flame spread for vertically oriented samples.

The EN ISO 6940 and 6941 tests are extensively applied throughout industry, especially in the textile and apparel manufacturing industries, where it is widely used for the testing of  fabrics and other woven material products.  The test measures the rate of flame spread for vertically oriented samples.

The EN ISO 9239-1 Radiant Flooring Panel test is the cornerstone of the flooring materials reaction to fire tests in the Euroclass system.  The test measures the spread of flame of the sample, under thermal exposure, using a radiant heat ignition source.  The thermal exposure is that of a fire growing in the room of origin that through a door opening, radiates onto the floorings in an adjacent room or corridor.  It is relevant to classification of the flooring material into classes A2FL, BFL, CFL and DFL as set out in BS EN 13501-1 2007 + A1 2009. EN ISO 9239-1 applies to floorings. The apparatus can also be used for tests to standards ASTM E648 and DIN 4102; Part 14.

The BS476-6 Fire Propagation test provides information on the influence that a simple material, a composite of materials or an assembly of materials, would make to the rate of fire growth within a compartment.

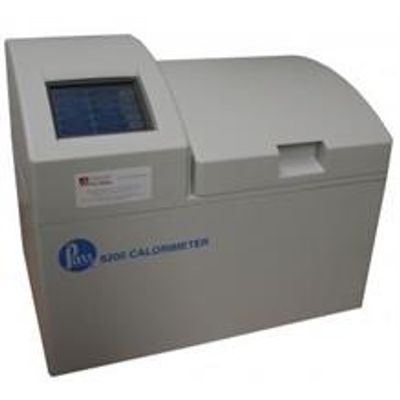

The 6200 Isoperibol Calorimeter is Concept’s most precise model offered.  The traditional removable bomb and bucket design along with the water jacket of this calorimeter, afford the user with complete control over the combustion process.  This makes the 6200 the ultimate choice for precise research and development and quality control work required when testing to EN ISO 1716:2010.

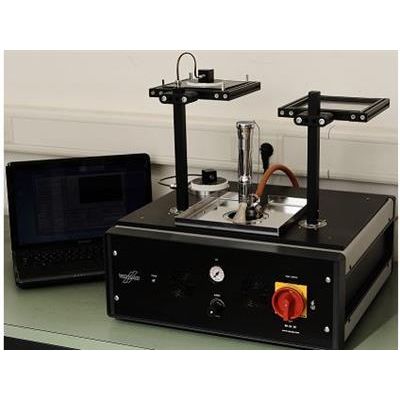

The updated UL94 Flame Chamber from Concept Equipment utilises modern technology and has been designed with ergonomics in mind to ensure that testing is as user friendly as possible. The test is widely applied throughout industry, especially in electrical manufacturing, where it is widely used for the testing of electrical products. The test measures the burning rate of samples positioned either horizontally or vertically. Standard Equipment performs UL94 tests 94HB, 94V-0, 94V-1, 95-5V, 94VTM-0, 94VTM1 and 94VTM2.

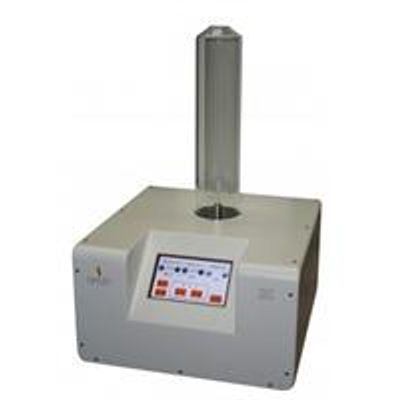

The Oxygen Index Module measures the oxygen index (OI, LOI or COI) for a range of samples. It is simple to use, and utilises an easy to read digital display, indicating the oxygen index directly in % Oxygen, as well as the flow rate in nl/min and the column temperature in °C.

The Temperature Index extends the range of the Oxygen Index Module, so that the oxygen index of materials can be measured at elevated temperatures. Generally, the oxygen index falls as the gas mixture is heated, so work at elevated temperatures supplements work carried out at room temperature. This new model available from Concept Equipment utilises the very latest control technology. Selection of all variable elements is by easy touchscreen selection and the intelligent system adjusts accordingly.  This differs from most competitive products, where valves need to be adjusted manually, which is a time consuming and tedious task.

ISO5659-2, BS6401, ASTM E662, IMO FTPC PART 2, NES711, BSS 7239, AITM 3.0005, AITM3.0005, ABD0031. The Smoke Chamber has proved to be one of the most versatile fire testing instruments since it’s inception in the 1980’s. It is the most widely accepted apparatus for the measurement of smoke from burning materials and measures specific optical density under flaming and non-flaming conditions. It is also used for the extraction of toxic gas.
