Containment Services Providers Company Ltd. (CSP) products

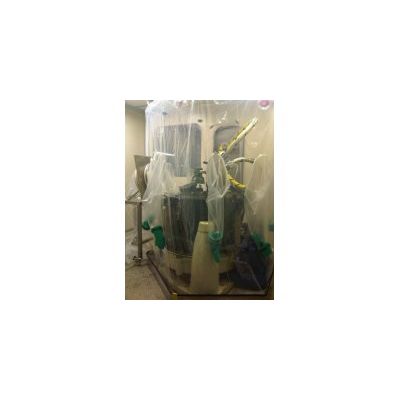

Using either fully flexible containment suites or a combination of rigid and flexible technology, we can supply and install full containment suites. Applications include: Segregation of equipment or plant. Remote charging stations. Decontamination and safe-change areas. Temporary clean rooms. Safe storage areas.

Using either fully flexible or a combination of rigid and flexible technology, we can supply and install airlocks to suit the customer’s requirements. We can supply both personnel and material flow airlocks. These airlocks will provide an area of space where the operator can gown up or down, fog down dirty PPE, pass materials into a clean room and all in a safe manner. Fully sealed floors. Pressure cascades and HEPA filtration. Easily seen on magnahelic gauges. Separate material and personnel airlocks can be provided. Service panels can be provided. Emergency exits. One of our many fogging systems also built into the airlock in order to aid safe degowning.

Wall mounted fog showers are units that help in the safe removal of potent dry powders and the safe removal of potentially contaminated personal protection equipment (PPE). As the wall mounted fog shower is a relatively small unit it can be erected and used anywhere. The wall mounted fog shower uses a 3 jet fogging system which produces a light mist that encapsulates the dust on the PPE. The mist improves the quality of de-gowning by sticking the dust onto the PPE preventing the dry dust from becoming airborne. The fog shower is designed to use as little water as possible. The PPE can then be disposed of in a safe manner. By using a wall mounted fog shower, the level of safety is increased when working with potentially toxic materials.

Fog carts are mobile fogging systems, which run on a low pressure, low volume philosophy. The fog cart is used for a number of different applications: The cleaning and containment of rooms, areas or surfaces which have potent dry powders exposed on it. The safe removal of potentially contaminated PPE. The fog cart can be used to support break in operations and maintenance work if containment has not been fitted. The safe removal and disposal of flexible containment systems.

The rolling stainless steel shower allows personnel wearing dirty PPE to safely fog down / wet their PPE before they begin to degown. This fogging action encapsulates the dry powders onto the PPE and prevents them from becoming airborne when taking the dirty PPE off. These SS walk in showers can be fixed to an airlock in a production room or they can be a standalone unit within a bigger airlock or in a production floor. The operator enters the shower from one side, turns the valve to the on position, fogs down the dirty PPE, turns the valve back to the off position and then exits the shower out through the second door.

CSP’s continuous liner system is an easy to use contained packaging system that has been proven to be extremely effective in containing active pharmaceutical ingredients (API’s) and other hazardous substances. This continuous liner system assures a safe and effective powder transfer operation. An Occupational Exposure Band of Five (OEB5, <1µg/m3 occupational exposure level) has been demonstrated on this continuous liner system over an eight hour time weighted average (TWA).

The sampling flexible isolator allows the operator to take a sample from a vessel in a contained and safe manner. The operator can pass sample jars into the flexible isolator through the feed in sleeve and disconnect the full sample jars from the feed out sleeve.

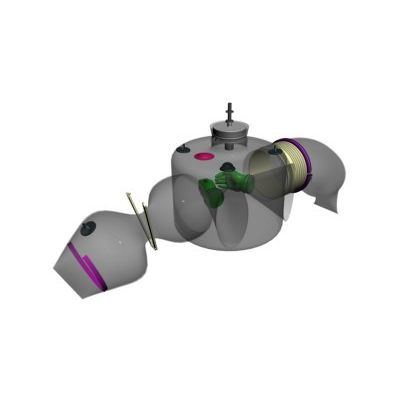

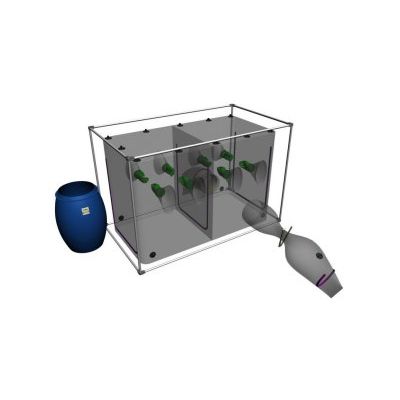

Our fully flexible isolators are stand alone containment isolators which provide the operator with a contained enclosed space where they can perform certain operations. Materials can be passed in and out of the flexible isolator using the chambers or sleeves provided.

We have two types of flexible isolators mounted on a stainless steel raised edge: A flexible isolator mounted on a stainless steel table. The required procedure can be carried out within the flexible isolator on top of the stainless steel table top. A flexible isolator mounted on a stainless steel tray within which a module is contained. Any work to be carried out on this module can be carried out through the flexible isolator.
