Controle Mesure Systemes products
Eddy Current Inspection
Model Zet@Master - Highest Performance for Limitless Inspection
Zet@Master is our most powerful Eddy Current instrument, with multi-channel (up to 32) and multi-frequency capability. This stand-alone unit can handle the signal treatment of several Eddy Current systems simultaneously, and works in all configurations, in-line or off-line. It is used for flaws detection on tubes (welded or seamless), wires, bars, strips, automotive parts, whether the material is ferrous or not. It can also be used for heat treatment verification, exchanger tubes inspection, and many other applications. The Zet@Master is available in a rack-mount version as well, and comes with our Production software.

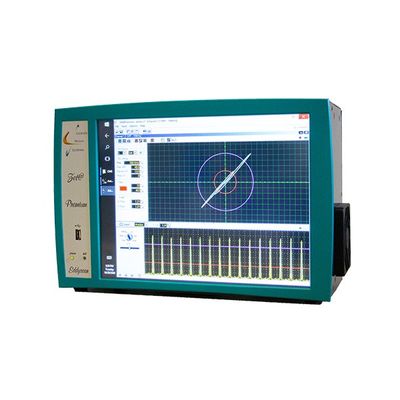

Model Zet@Premium - Flaw Detection And Material Sorting
Zet@Premium is an advanced and compact Eddy Current instrument, perfectly fitted for flaw detection on tubes, wires, bars, automotive parts made of ferrous and non ferrous metals. The various options (addition of a second channel, a production software, density factor…) and built-in versions available are making it highly customizable. It can be used both in-line or off-line. Zet@Premium is a user friendly instrument with all the necessary functions to cover most applications.
Ultrasonic Inspection
Ultrasonic Rotating Head RotoUTscan
The inspected product is guided and moving through a water box (cassette), while the Ultrasonic transducers are rotating at a very high speed around it. The transmission of the signals between rotor and stator is contactless. The collected signal is processed in real time and compared with the alarm thresholds previously defined in the supervision software. The ultrasonic rotating head RotoUTscan allows the detection of internal and external defects of any orientation, and performs dimensional measurements (ID, OD, thickness, …) at a very high speed directly on the production line. It is usually dedicated to the control of long products such as tubes, bars and wires made of stainless steel, carbon steel, titanium… RotoUTscan can inspect diameters from 4 to 250mm.

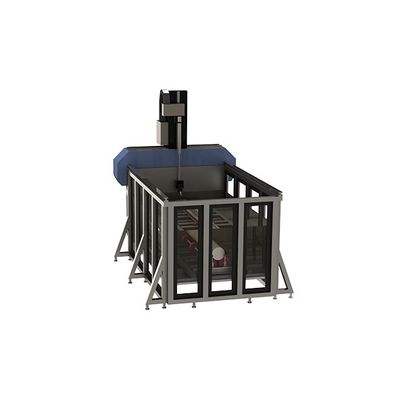

Ultrasonic Immersion Tank
The part to be inspected is immersed inside the water tank. An industrial robot, programmable and capable of movements on up to six axes is holding the transducer, and moves it over the product to perform an highly accurate scanning process. The Ultrasonic immersion tank provides scanning inspections carried out with conventional or phased array electronics, and can display the reports through A-scan, B-scan or C-scan. A wide range of parts can be inspected using this technology (motor disks, bars, billets, plates, …).
Dimensional Measurement

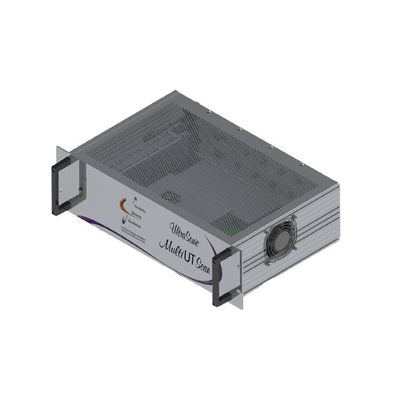

Model MultiUTscan - Defect Detection and Dimensional Measurement
MultiUTscan is a powerful and extremely accurate multi-channel & multi-frequency Ultrasonic inspection instrument. It is dedicated for flaw detection and dimensional measurement of ID, OD, and wall thickness. The live inspection screens and user friendly interface make the ultrasonic configurations quick and easy to setup. MultiUTscan is controlling all our UT equipment: the Ultrasonic rotating head RotoUTscan, the dimensional rotating head RotoUTdim, and the immersion tank.
