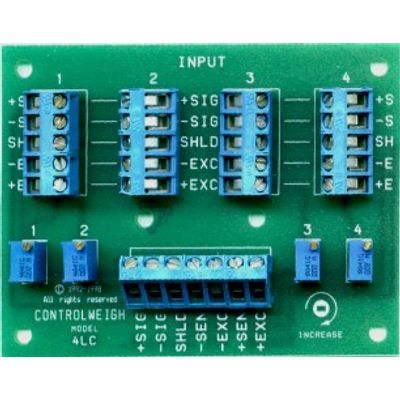

The 4LC Summing Card is 3` wide X 4` long. It has four 5-position terminal strips for load cell input and one 7-position terminal strip with internally jumped sense terminals for output to the instrument. The board will sum 2 to 4 load cells and can be daisy-chained to sum up to 8 load cells using 2 summing cards. Trimming is accomplished with four 25-turn trim pots with an operating temperature range of -55°C to +125°C. The board can be mounted with the four 11/64` mounting holes provided, with a spacing of 2½` X 3½` on center.We offer sever different custom enclosures, see Compact Junction Boxes for Enclosures to use with this board.

The ST4LC Summing Card is 3` wide X 4` long. It has four 5-position terminal strips for load cell input and one 7-position terminal strip with internally jumped sense terminals for output to the instrument. The board will sum 2 to 4 load cells and can be daisy-chained to sum up to 8 load cells using 2 summing cards. Trimming of signal output is accomplished with four 25-turn trim pots. The board can be mounted with the four 11/64` mounting holes provided, with a spacing of 2½` X 3½` on center.We offer sever different custom enclosures, see Compact Junction Boxes for Enclosures to use with this board.

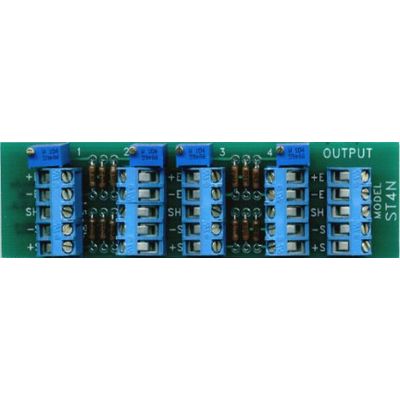

The ST4N Summing Card is 1.3" wide X 4.75" long. It has four 5-position terminal strips for load cell input and one 5-position terminal strip for output to the instrument. The board will sum 2 to 4 load cells and can be daisy-chained to sum up to 8 load cells using 2 summing cards. Trimming of signal output is accomplished with four 25-turn trim pots. The board can be quickly be mounted with the 3M Dual LockTM Fastening System. We offer sever different custom enclosures, see Compact Junction Boxes for Enclosures to use with this board.

The 1LC Junction Card is 2.2" wide X 1.7" long. It has one 7-position terminal strips for load cell input and one 7-position terminal strip for output to the instrument. The board will connect 1 load cell or splice 7 conductor cables. The board can be quickly be mounted with 4 screws with holes at 1.4" X 1.75", 2 screws with holes at 1.75", 3M Dual LockTM Fastening System, or RDI Snaptrack Type 8TK2l. We offer sever different custom enclosures, see Compact Junction Boxes for Enclosures to use with this board.
