Cornell Pump LLC products

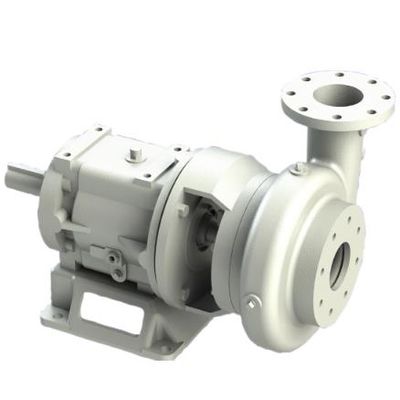

Pump specification: 3NLP-F5K Frame mounted food handling pump. 3" x 3" Class 125 Flanged suction and discharge. Constructed of ASTM A48, Class 30 Cast Iron. 6.5" impeller diameter. 2" diameter by 3” length solid food handling characteristics. Food grade packing. Industry leading two year warranty. Variable operating speed. Optional mounting configurations available.

The 4NMP pump is designed with Cornell`s renowned quality and durability. It features a 4" discharge and a 4" suction with an enclosed, single-port impeller. Cornell`s patented CycloseaP design is optional, with a Type 2 single mechanical seal with Buna-N elastomers, stainless steel hardware and tungsten carbide vs. silicon carbide seal faces for abrasion resistance. Also available with food-grade packing. Bearings are heavy-duty, oil or grease lubricated, deep groove ball bearings with a minimum of 50,000 hours bearing life.

The 4NMPP pump is designed with Cornell`s renowned quality and durability. It features a 4" discharge and a 4" suction with an offset volute and enclosed, single-port impeller. Cornell`s patented Cycloseal0 design is optional, with a Type 2 single mechanical seal with Buna-N elastomers, stainless steel hardware and tungsten carbide vs. silicon carbide seal faces for abrasion resistance. Also available with food-grade packing. Bearings are heavy-duty, oil or grease lubricated, deep groove ball bearings with a minimum of 50,000 hours bearing life.

The 6NHP pump is designed with Cornell’s renowned quality and durability. It features a 6” discharge and a 6”
suction with an enclosed, single-port impeller. Cornell’s patented Cycloseal design is optional, with a Type 2 single mechanical seal with Buna-N elastomers, stainless steel hardware and tungsten carbide vs. silicon carbide seal faces for abrasion resistance. Also available with food-grade packing. Bearings are heavy-duty, oil or grease lubricated, deep groove ball bearings with a minimum of 50,000 hours bearing life.

The 10NHPP pump is designed with Cornell`s renowned quality and durability. It features an 10" discharge and a 10" suction with an offset volute and enclosed, single-port impeller. Cornell`s patented CycloseaF design is optional, with a Type 2 single mechanical seal with Buna-N elastomers, stainless steel hardware and tungsten carbide vs. silicon carbide seal faces for abrasion resistance. Also available with food-grade packing. Bearings are heavy-duty, oil or grease lubricated, deep groove ball bearings with a minimum of 50,000 hours bearing life.
