Creative Sensor Technology products

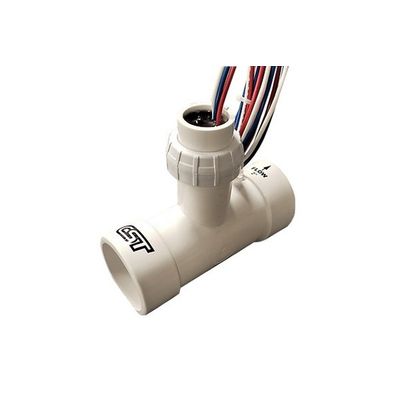

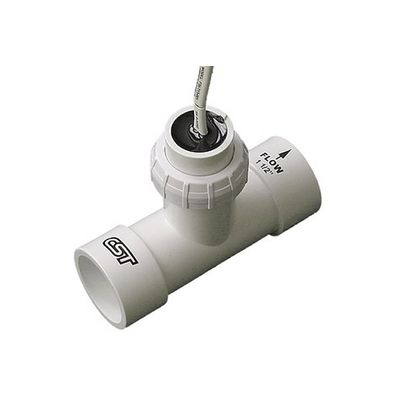

Creative Sensor Technology FSI series flow sensors feature proven impeller based technology designed for flow monitoring/flow control applications in irrigation, water conservation and related industries. The term sensor is used because this measurement device produces an output signal rather than a visual display. The PVC tee type sensor with socket connections is offered for service in all class and schedule rated PVC piping systems.

Our high performing FSI-T Series flow sensors are now available with a scaled pulse output. Our most popular flow sensors are now available as SP3 models with a 1 pulse = 1 gallon output signal making them ideal for use with all Hunter Hydrawise controller models.

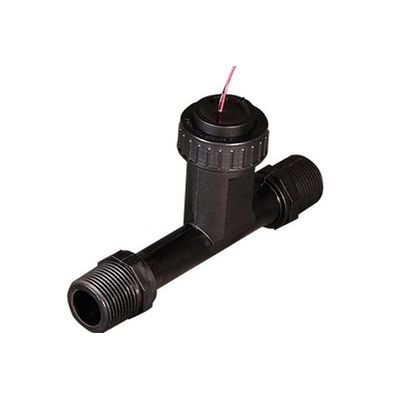

The Enhanced Low Flow (ELF) sensor from Creative Sensor Technology measures rate of flow in small diameter closed pipe irrigation systems.

The CBF-102 Combiflow is a signal control device that conditions and scales the signals from two digital flow sensors and combines them into one scalable digital output.

The Model 302 Isoflow is a signal control device that receives the signal from one digital flow sensor and provides two electrically isolated outputs. The Isoflow is compatible with all CST flow sensors and most other sensors producing a square wave output proportional to flow rate. It is not compatible with Hunter HFS sensors. The Isoflow also provides optional control inputs allowing the device to selectively switch outputs from one channel to the other or both. Control inputs are also electrically isolated from each other, the flow input and outputs and the power supply. The Model 302 features four LEDs to indicate operating conditions and aid in diagnostics.
