Croos Pump (Shanghai) Co., Ltd products

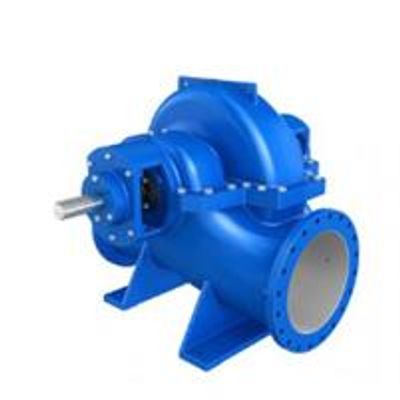

NMZ series are horizontal, single stage, axially split case, double suction, between bearing, centrifugal pumps. It’s suitable for pumping clean water or slightly contaminated water or liquids which is physically and chemically similar to water, where large quantity and certain head are required. The axially split casing design makes it easy to remove the upper volute casing and rotary components without disturbing the motor and the pipework. And the double suction impeller of this horizontal axial split casing pump ensures high efficiency.

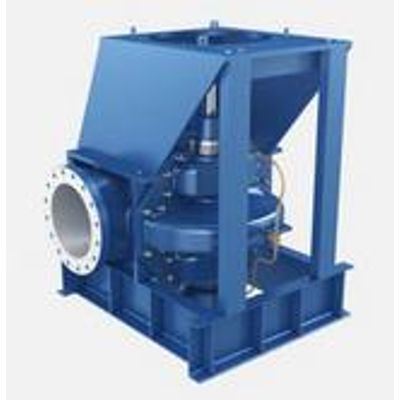

NMZV series are vertical, single stage, axially split volute casing, double suction, centrifugal pumps. It’s the vertically mounted type of NMZ series. They share the same volute casings, impellers and shafts. Comparing with the horizontal pump, vertical water pump only requires haft the floor space. So it can meet the needs where assembling space is limited.

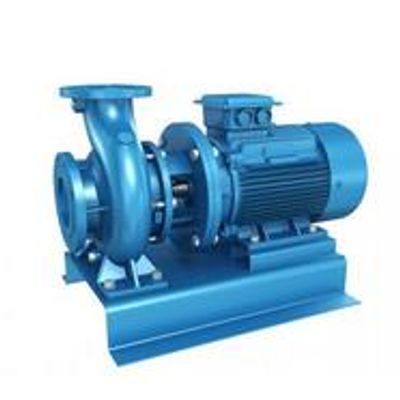

GE series horizontal end suction centrifugal pumps are over hung pumps and designed according to EN733/DIN24255 standard, mainly be applied to clean water or liquid with fewer solids, with the cooling device, also can be used for hot water, ethyl alcohol and other industrial process water and sea water. There are three different impeller type can be chosen according to different request: closed, semi-open and open impellers.

GEC series monoblock end suction centrifugal pumps are close coupled overhung structure, the pump and motor share one same shaft. GEC series end suction pumps are designed according to EN733/DIN24255 standard, mainly be applied to clean water or liquid with fewer solids, with the cooling device, also can be used for hot water, ethyl alcohol and other industrial process water and sea water.

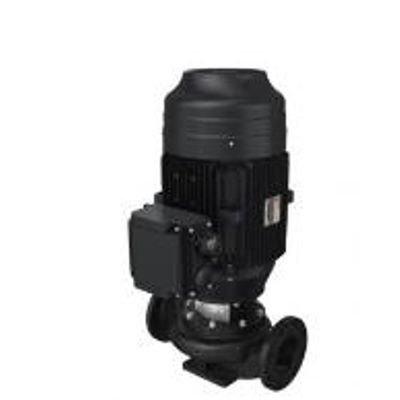

LLKV vertical single stage single suction inline centrifugal pump is a vertical type of LLKC pump. The performance of LLKV inline electric water pump and LLKC pump is same. And the impellers they used are also same. The impeller is directly mounted on the motor shaft. Comparing with the horizontal pump, vertical inline pump only requires haft the floor space. So it can meet the needs where assembling space is limited.

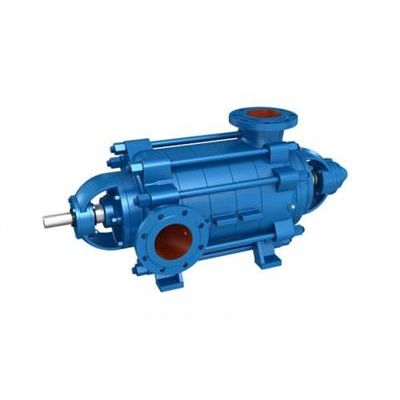

HM series is the horizontal multistage ring section pumps and high pressure pump. all the impellers are stacked in single direction on the same pump shaft. The rotors are perfectly dynamically balanced and the maximum stages can be up to 12stages. HM type horizontal multistage ring section pumps has the advantage of stable performance and superior in quality. HM type horizontal multistage pump is the ideal for high pressure pumps application, for water and drinking water supply system, general industry, pressure boosting system, irrigation system, in power station, heating, filtration, fire-fighting, reverse osmosis and washing plants....etc

RAP series closed coupled stainless steel vertical multistage centrifugal inline pumps are driven by standard motors. All parts contact with water made of SS304. The pump head, suction and discharge part can be made in cast iron on request too. The pressure-resistant cylinder and flow passage components are fixed between the pump head and inlet & outlet section with four stay-bolts. With high reliability, high efficiency and advanced technology, these pumps are capable of satisfying multiple applications in the water market.

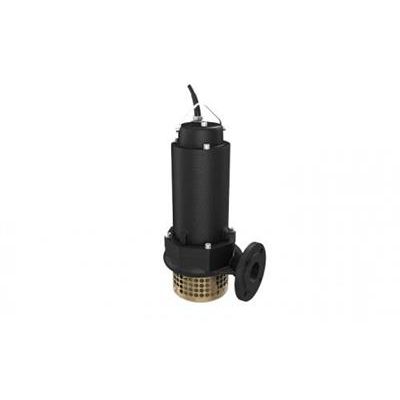

OH are single stage, single suction submersible sewage water pumps with the overhung nonclogging impeller. Industrial submersible pump can be offered in stationary as well as transportable arrangements. The stationary arrangement is supplied with pump connector unit and the connector unit is connected to pump support bracket with rubber diaphragm to make it leak-proof joint.

OHM series are Non-Clog Electric Submersible Pumps for Sludge, Sewage, Trash & Industrial Waste.

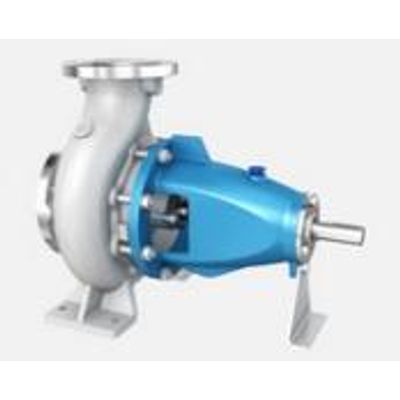

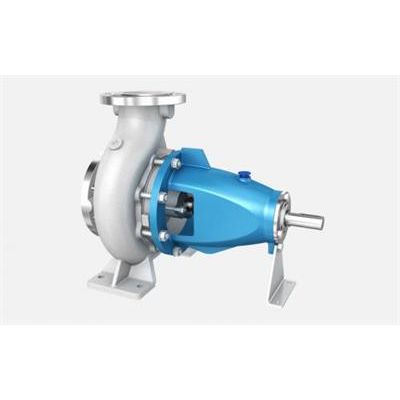

APA series single stage end suction pumps are designed according to ISO5199 and ISO2858 standard, mainly be applied for chemical process water or liquid with fewer solids, hot water, ethyl alcohol, sugar refinery and other industrial process water and sea water. There are three different impeller type can be chosen according to different request: closed, semi-open and open impellers.
