Crown Steam Group a Division of the Middleby Corporation products

The Crown SX-3 and SX-5 are constructed of satin finish 304 stainless steel with a one piece welded 316 stainless steel cooking chamber with coved corners. The door has a removable inner liner of stainless steel with full perimeter gasket seal, an outer liner of one-piece all welded stainless steel, and a positive lock and seal mechanism. The steamer has removable stainless steel pan supports and a stainless steel drip trough integrally connected to the drain in order to collect condensate when the door is opened, and adjustable leveling feet.

The EPX-3 (3 pan) and EPX-5 (5 pan) are countertop, boiler free convection steamers, c-CSA-us and NSF certified. The units are connectionless, no plumbing required. The units are constructed of satin finish 304 stainless steel with a one piece welded 316 stainless steel cooking chamber with coved corners. The door has a removable inner liner of stainless steel with full perimeter gasket seal, an outer liner of one-piece all welded stainless steel, and a positive lock and seal mechanism with spring release. The steamer has removable stainless steel pan supports and steam diffuser plate.

The EPXN-3 (3 pan) and EPXN-5 (5 pan) are countertop, boiler free convection steamers, c-CSA-us and NSF certified. These units are connectionless, no plumbing required. The unit is constructed of satin finish 304 stainless steel with a one piece welded 316 stainless steel cooking chamber with coved corners. The door has a removable inner liner of stainless steel with full perimeter gasket seal, an outer liner of one-piece all welded stainless steel, and a positive lock and seal mechanism with spring release. The steamer has removable stainless steel pan supports and steam diffuser plate.

The DCX steamer is constructed of satin finish stainless steel, type 304, with a cooking chamber of one piece all welded 316 stainless steel and shall be:

This line of Crown convection steamers come complete with 6 or 10 Gallon Kettle on a modular boiler base operating on direct steam, with stainless steel type 304 exterior and #4 finish, deck mounted faucet valve, swing nozzle and integral sink with common drain.

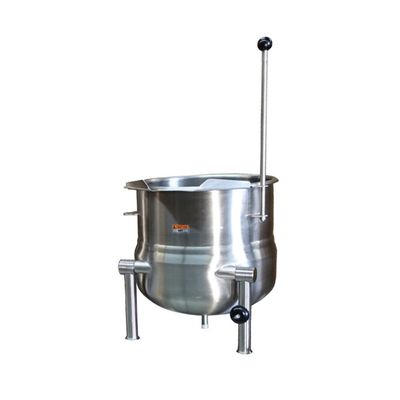

The DC-6, DC-10, DC-12 and DC-20 double wall kettle interior forms a steam jacket around the lower 2/3 of the kettle. The bottom of the kettle is of hemispheric design for superior heat transfer. The tubular stainless steel mounting legs have the tilt bearings, steam supply and condensate return pipes completely concealed within the leg members and the right leg is fitted with a steam control valve. A single support leg with nylon foot supports the kettle in the upright position.

Full size indirect fired convection oven (intended to be used with an external heat source that is not supplied).
