Crystal Instruments software

Establishing a time record of data is a critical requirement of vibration testing. Whether the application is ground vibration monitoring of railway activity or laboratory testing of a missile fixture, time recording can reveal important data. Times of peak activity, the overall vibration level at various times, the damping ratio, or other useful information is uncovered from acquired time data. Acquired vibration data might need synchronization with other data types. Crystal Instruments offers a variety of solutions to fulfill any time data acquisition need.

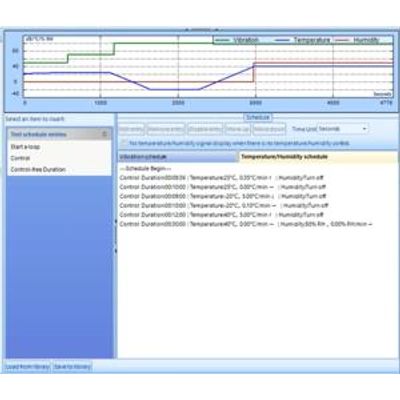

Designed and manufactured by Crystal Instruments, the Spider-101i controller is a key element of the Sentek Dynamics THV Series AGREE (Department of Defense Advisor Group on Reliability of Electronic Equipment) chambers. These chambers provide combined temperature, humidity, and vibration testing in addition to environmental and reliability testing for a wide variety of aerospace, automotive, medical, commercial, and independent test lab applications. Temperature, humidity, and vibration levels are controlled with high accuracy and are synchronized to simulate the actual physical environment products experience in the field.

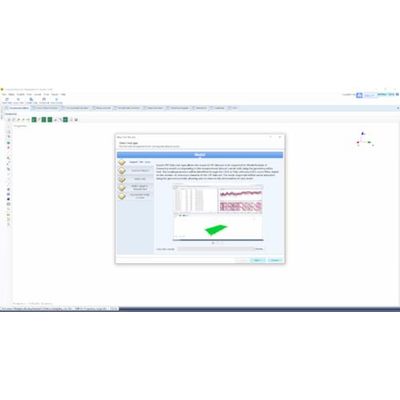

Engineering Data Management (EDM) is a PC-based software program designed for real-time data management and processing. This easy-to-use, Windows-native software manages the communication between the PC and all Crystal Instruments hardware platforms. EDM Modal is a complete Modal Testing and Modal Analysis suite for Experimental Modal Analysis (EMA). EDM Modal was developed based upon the sophisticated technologies of modern modal analysis theory and technique. With its intuitive controls and powerful features, EDM Modal is the ultimate tool for modal analysis applications. An intuitive interface allows users to manage highly complicated tests that can involve hundreds of measurement points and multiple excitations. This interface also allows for simple tests to be conducted quickly and with little effort. Regardless of how complicated the modal test is, EDM Modal provides the exact and precise tools required to achieve your goal.
