Cubic Instruments (Wuhan) Ltd. products

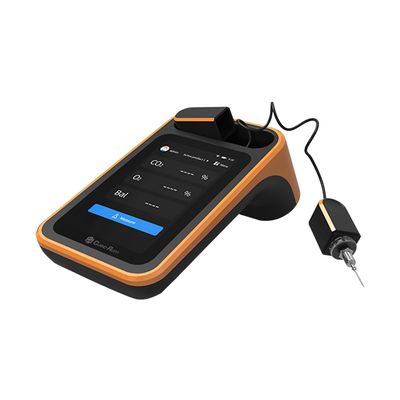

Cubic Instruments - Model Gasboard-3022Plus - Portable Headspace Analyzer (MAP)

Gasboard-3022Plus is an advanced portable gas analyzer for headspace gas testing in modified atmosphere packaging (MAP). It is developed based on Non-dispersive Infrared（NDIR）technology and Zirconia sensor technology. The CO2 measurement adopts NDIR technology, which measures CO2 level with high-accuracy readings and ensures a lifetime more than 10 years. And O2 measurement is based on Zirconia sensor technology, which not only evaluates the volume of O2 accurately but also enables long lifetime of 5 years and fast response time less than 7 seconds.

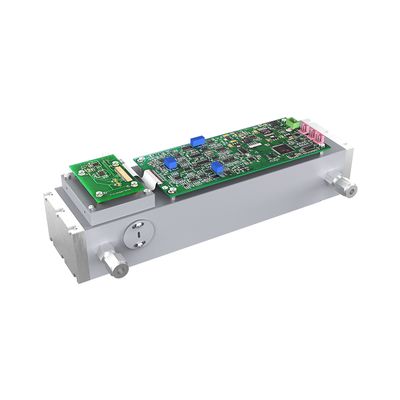

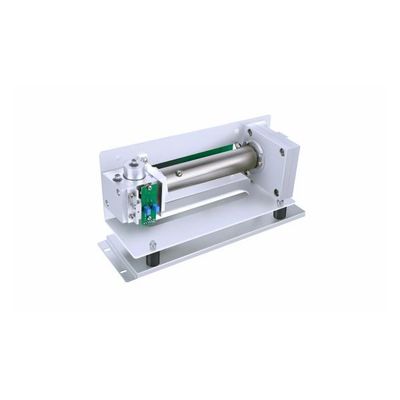

Cubic Instruments - Model Gasboard-2520 - TDLAS Gas Sensor Module

The Gasboard-2520 series is a high-performance gas analysis sensor module independently developed by Cubic Instruments (Wuhan)Ltd. It is based on tunable diode laser (TDL) absorption spectroscopy and uses high-performance probes and special process gas chamber. It has the characteristics of high precision, high sensitivity, strong anti-interference ability, long life and stable performance. The product adopts modular design and is easy to install. The product can be calibrated through the RS-232/485 communication interface. The constant temperature design effectively avoids the impact of temperature changes on the sensor and can work stably in harsh working conditions and complex gas environments.

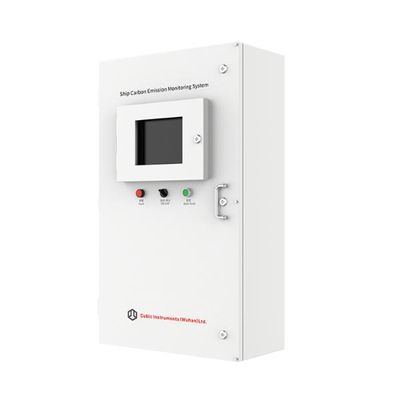

Cubic Instruments - Model Gasboard-9085GHG - Ship Carbon Emission Monitoring System

Cubic Instruments' Gasboard-9085GHG is a Maritime Greenhouse Gas Emissions Monitoring System designed to measure greenhouse gases and sulfur emissions from maritime vessels in real time. Gasboard-9805GHG utilizes Cubic's mature gas sensing technology platforms including NDIR, TDLAS, UV-DOAS, GFC, and NDUV to monitor CO2, CH4, N2O, SO2 and other pollutants in ship exhaust gas. The system also integrates ultrasonic flowmeters and temperature / pressure modules for flue gas desulfurization (FGD) process analysis. Through its integrated gas composition analysis and flow rate measurement capabilities, Gasboard-9085GHG delivers accurate data collection for environmental compliance and carbon trading requirements. The system provides real-time monitoring and data synchronization functions, ensuring reliable measurement data for regulatory reporting.

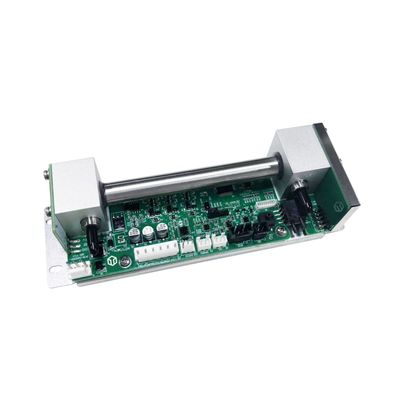

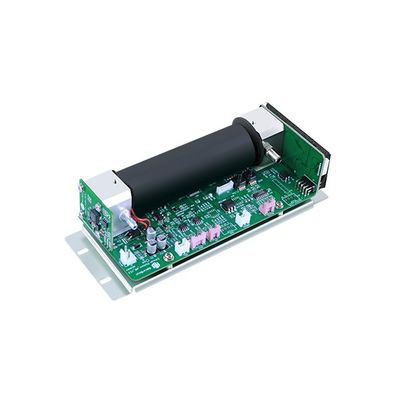

Cubic Instruments - Model Gasboard-2000L - NDIR Gas Bench

Gasboard-2000L is a compact NDIR gas bench developed for exhaust gas analysis, measuring CO, CO2, and HC in gasoline and diesel engine exhaust gas. It can be integrated with optional modular electrochemical O2 and NOx sensors to enable extended exhaust gas analysis. Compliant with OIML R99 Class 0, Gasboard-2000L delivers accurate and stable measurement performance, flexible integration, and easy maintenance, making it a practical solution for OEM integrators and emission analyzer manufacturers.

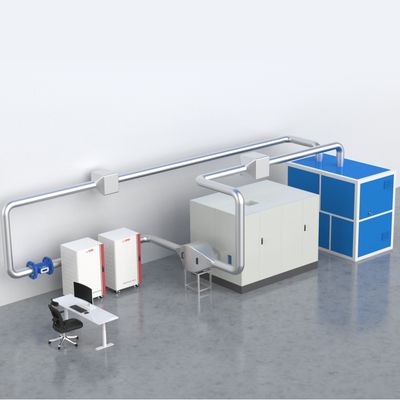

Cubic Instruments - Model Gasboard-9806 - Brake Emission Measurement System

The Gasbaord-9806 Brake Particulate Emission Measurement System is a comprehensive solution developed for standardized measurement of particulate emissions generated by brake wear under controlled conditions. Based on advanced Condensation Particle Counting (CPC) technology, Gasboard-9806 provides accurate and repeatable quantification of particulate mass and particle number in compliance with Euro 7 and UN GTR No. 24 requirements.

OEM Modular Gas Analyzer

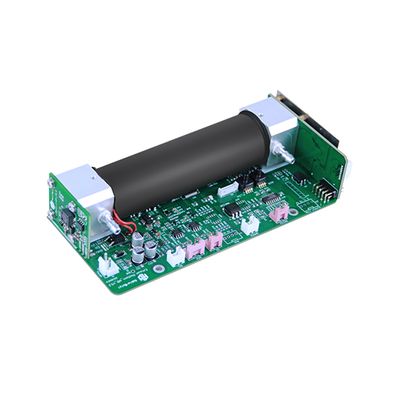

Cubic Instruments - Model Gasboard-2000 - Dispersive Infra-Red (NDIR) Gas Bench

The Gasboard-2000 NDIR gas bench which is based on Dispersive Infra-Red (NDIR) sensing principle to measure CO, CO2, HC in exhaust gases from gasoline and petro engines. The Electrochemical O2 and NO sensors can be plug-in easily on Gasboard-2000. It complies with advanced international standards: OIML R99 Class 1, 0, 00 standards, and widely used by OEM integrators, automobile emission gas analyzer manufacturer due to its flexible integration, high quality and easy maintenance.

Cubic Instruments - Model Gasboard-2101 - NDIR CO Gas Analyzer Modular

Gasboard-2101 is a CO gas bench with Cubic Instruments patented micro flow NDIR technology, which comes from the Gasboard-2000 series with the same advantage but only focuses on low concentration CO detection.

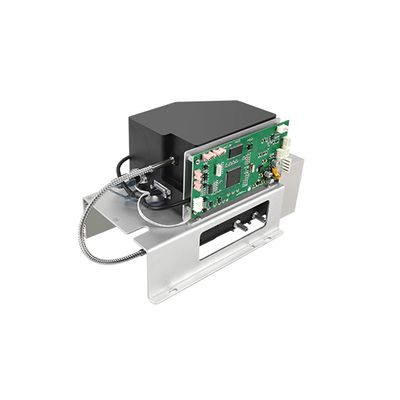

Cubic Instruments - Model Gasboard-2200 - UV-DOAS NOx Gas Bench

Gasboard-2200 UV-DOAS NOx gas bench adopts high-precision ultraviolet differential absorption spectroscopy gas analysis technology to measure NO & NO2 simultaneously. It’s widely used by gas analyzers and PEMS manufacturers due to its flexible integration, high quality and easy maintenance.

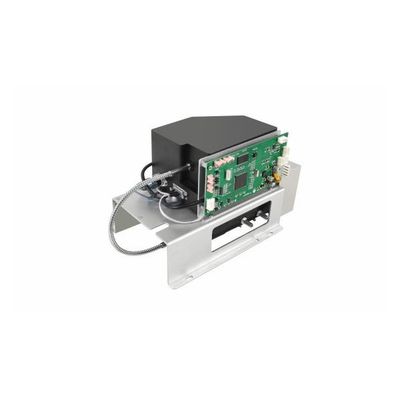

Cubic Instruments - Model Gasboard-2201 - NOx Gas Bench for Engine Emission

Based on high-precision ultraviolet differential absorption spectroscopy gas analysis principle( UV-DOAS), our Gasboard-2201 NOx bench can accurately measure the engine emission gas concentration of NO, NO2.

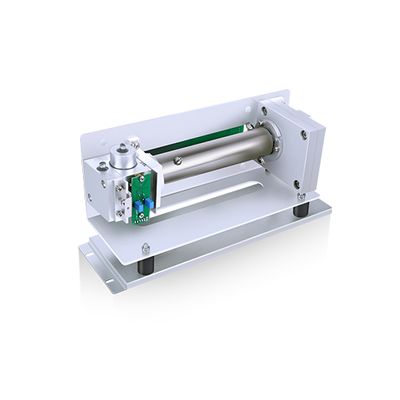

Cubic Instruments - Model Gasboard-2300 - Non-Dispersive Ultraviolet Absorption (NDUV) NO2 Gas Bench

Gasboard-2300 NDUV NO2 gas bench adopts non-dispersive ultraviolet absorption (NDUV) technology and highly stable pulsed LED UV source to measure NO2 gas. It can measure the gas concentration of NO2 with high accuracy and strong anti-interference without NOx converter.
