Custom Air Products & Services Inc. products

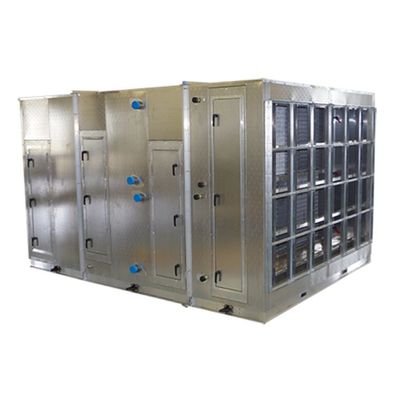

No-thru metal aluminum framing. Foam cored aluminum jacketed R-7.6 wall panels. Double pitch main drain pan with condensate connections of each side of the unit. Left hand chilled water cooling coils with aluminum fans, copper tubes, and 304 stainless steel casings. UVC sterilization lighting sized for complete coverage of leaving air side of cooling coils with door switch. Nine internally isolated direct drive plenum fans sized to provide a minimum of 4722 CFM @ 4.5 TSP each. Face loading 70-75% Merv-12 4″ pre-filter & 90-95% Merv-15 12″ secondary filter.

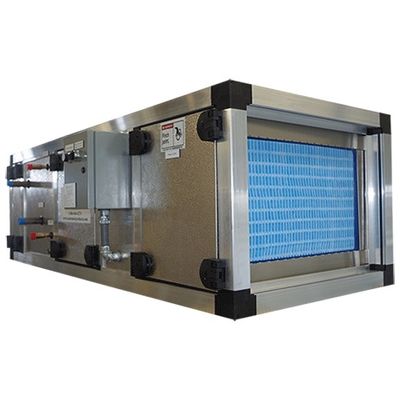

Modular NTM Thermal Break 2″ Panel Air Handlers. Mechanical Design. Electrical: 460V/3PH/60HZ. MCA: 10 AMP. Area Classification: General purpose. Pre-Filters: One 16″ x 25″ x 4″. Final Filters: One 16″ x 25″ x 4″. Motor: HP: 2.15, FLA: 2.5, RPM: 3500. Unit Weight: 400 lbs.

Electronically commutated motors (ECMs) vary the motor RPMs in response to changing system conditions. Modular aluminum framing system which allows you to customize to your needs.

Does the “new normal” have you rethinking how to modify your outside air handling equipment to meet higher ventilation or filtration requirements? Custom Air Products has a solution to fit your unique air handling requirements. We have four options below designed and engineered to assist you with solving this task.

UV-C alters RNA/DNA structure of pathogens and can kill airborne flu viruses. Germ-killing properties discovered over 140 years ago.

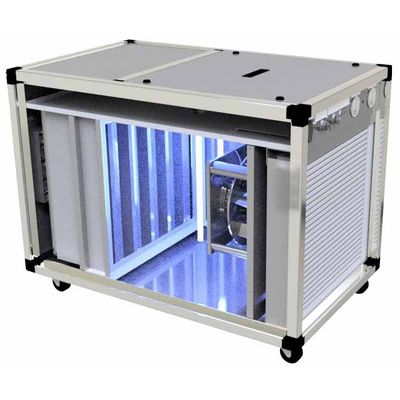

Moves 300 cubic feet of air per minute. While operating in a 10′ x 10′ room at 300 CFM, the air is changed 18 times per hour. Power: 120V – 5 amps – plugs into a standard wall receptacle. Airflow: 300 CFM – variable speed controlled versatility. Motor: Energy efficient motor. UV-C Lamp: 254 nm wave length 3,800 uW/cm2 irradiations. Sound: Quiet Operation, as low as 61 dBA – great for any space. Mobility: Compact with built-in casters: 18″ x 18″ x 40″.

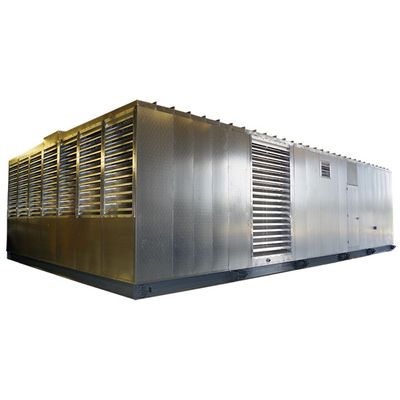

Stainless steel, aluminum, coated structural steel, or hot-dipped galvanized steel base material. Modular design or a knockdown for installation through a 3-foot door. Customer specified design conditions.. Special coils: Cu/Cu. Corrosion protection coatings. Heat: electric, hot water, or steam. Customer specified electrical classification: NEMA1, 3R, 4, 4X, or 7. Optional disconnect switches or combination starters. Special filtration options.

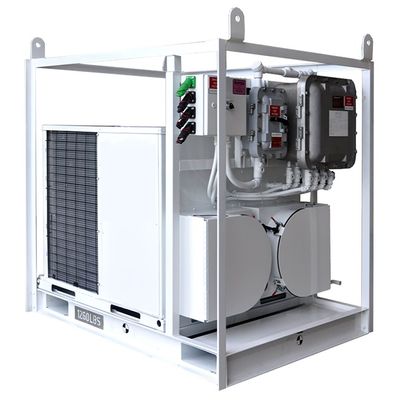

Customer specified cabinet materials: stainless steel, aluminum, or galvanized steel. Customer specified skid materials: stainless steel, aluminum, coated structural steel, or hot-dipped galvanized steel. Customer specified electrical classification: NEMA1, 3R, 4, 4X or 7. Copeland scroll compressors. Hot gas bypass. Remote air-cooled. High ambient operation.

Stainless steel, aluminum, coated structural steel, or hot-dipped galvanized steel base material. Deep bed or trays. Special filtration requirements.

Manufacturer: Custom Air Products & Services, Inc. Unit Model Number: PPKH-5TD-0NN9KE-5B2-0-UP. Equipment Insurance Value: Call for quote. Duct Connections: 1×20″ Supply Air & 1×20″ Return Air.
