Custom Control Sensors, LLC (CCS) products

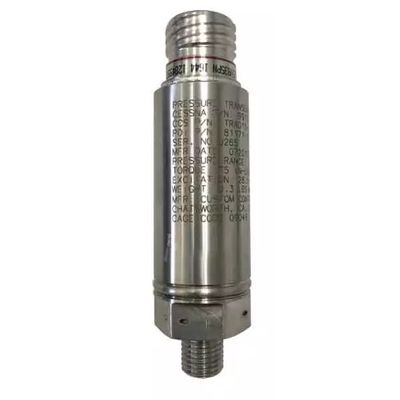

The Absolute Pressure Transducer utilizes CCS’ advanced strain Gage sensing and calibration technologies to measure pressure in aircraft systems referencing a fixed pressure adjusted to 0 PSI (0 BAR).The Absolute Pressure Transducer utilizes CCS’ advanced strain Gage sensing and calibration technologies to measure pressure in aircraft systems referencing a fixed pressure adjusted to 0 PSI (0 BAR).

The Gage Pressure Transducer utilizes CCS’ advanced strain Gage sensing and calibration technologies to measure pressure in aircraft systems referencing atmosphere.

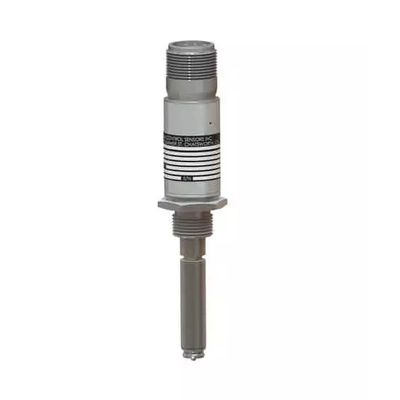

CCS’ highly reliable and economical Temperature Transducers utilize a Resistance Temperature Detector (RTD) for monitoring the temperature of aircraft fluids and gasses. The CCS Temperature Transducer is based on platinum wire-wound or thin-film RTD elements. The RTD is designed and constructed to International IEC Standards and includes single and dual channel 100, 500 and 1000 Ohm at Zero degrees C options.

Additional information: Industry: Aerospace & Defense. Instrumentation: Flow Switch. Certification Agency Approvals: AS9100D. Diaphragm: Polyimide (H-Film), Teflon Fiberglass, Rubber. Amperes Electrical Rating: Bifurcated – 0.003 to 0.100 A, Button – 0.1 to 0.5 A, Button – 0.5 to 5.0 A. Custom Flange: YES, NO.

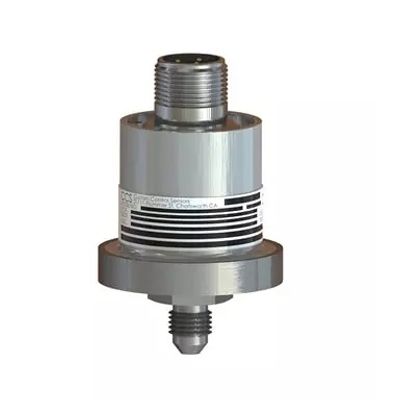

Based off CCS’s GEN 3 Pressure Transducer Product Line, the TRS Electronic Pressure Switch uses proven sensor and solid state technology to provide fast, reliable, and accurate pressure management in high pressure dynamic environments.

The 1G Series is an all aluminum gage pressure switch with high vibration and shock resistance designed specifically for low pressure applications ranging from 2 to 60 PSIG. The sensing area is larger than the 8G Series to accommodate low pressure settings and for certain applications that demand tighter actuation and deactuation settings, a narrower dead band can be achieved. Weight is approximately 3.5 ounces.

The 150T Series is a stainless steel, lightweight, miniaturized temperature switch with high vibration and shock resistance. These temperature switches utilize a vapor pressure system to sense temperature changes. Pressure is generated in a probe that is partially filled with a volatile liquid and pre-selected according to the probe temperature set point requirement. Switches are available in 25°F to 500°F settings. The approximate weight is 2.5 ounces.

The hazardous locations 6900PZZEM5Y Series is the most popular and rugged pressure switch, DPDT with a piston based port for hydraulic fluid applications. The series is also UL/CSA explosion proof, Class I, Groups A, B, C and D, and Class II Groups E, F and G certified and ATEX/IECEx II 2 G D Ex d IIC and Ex to IIIC. NEMA 4X and IP66 rating is optimum for wet conditions. It is designed with high vibration and shock resistance utilizing Dual Snap® disc spring technology ensuring high accuracy and repeatability. It comes with exceptionally high over-pressure capabilities, proof pressure up to 25,000 PSI and still relatively compact in size to conveniently mount on panels. It meets the demand for all applications commercial, industrial and otherwise.

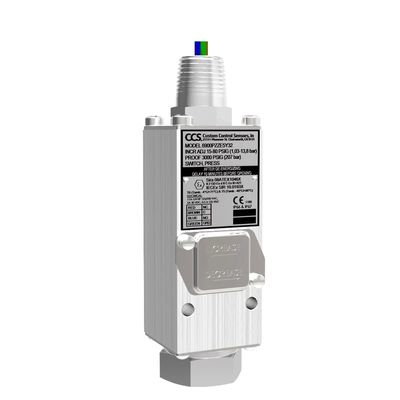

The hazardous locations 6900PZZE5Y Series is the most popular and rugged pressure switch with a piston based port for hydraulic fluid applications. The series is also UL/CSA explosion proof, Class I, Groups A, B, C and D, and Class II Groups E, F and G certified and ATEX/IECEx II 2 G D Ex d IIC and Ex to IIIC. NEMA 4X and IP66 rating is optimum for wet conditions. It is designed with high vibration and shock resistance utilizing Dual Snap® disc spring technology ensuring high accuracy and repeatability. It comes with exceptionally high over-pressure capabilities, proof pressure up to 25,000 PSI and still relatively compact in size to conveniently mount on panels. It meets the demand for all applications commercial, industrial and otherwise.

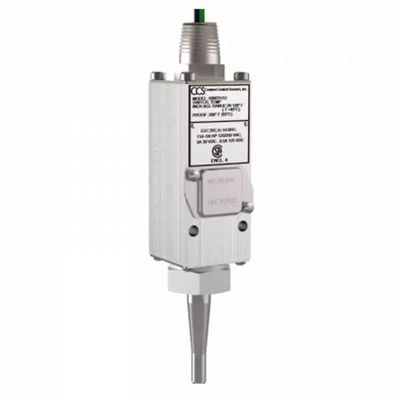

The general purpose 6900TUM Series is the most popular, all-around temperature pressure switch, DPDT with a stainless steel capillary tube and armored jacket probe port fitting. It is designed with high vibration and shock resistance utilizing Dual Snap® disc spring technology ensuring high accuracy and repeatability. It comes with high over-temperature capabilities and still relatively compact in size to conveniently mount on panels. NEMA 4X and IP66 rating is optimum for wet conditions. It meets the demand for all applications commercial, industrial and otherwise.
