CVB Valves S.R.L. products

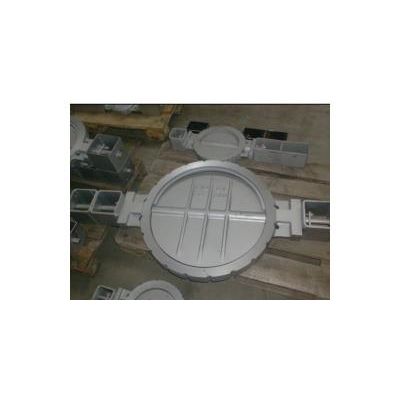

CVB BFL series valves feature a concentric disc. These valves are designed to meet with most industrial applications, from powder conveyance to petrochemical requirements.. The valves are manufactured in four different versions with sizes from DN 40 to DN1000, pressures up to 25 bar and many different materials. CVB BFL can be produced double flanged up to DN 2600

CVB HP series valves feature a double eccentric disc and an easy-to-be changed PTFE or metal seal ring. These valves provide flow control with an excellent shutoff against high pressure drops applied in either direction. Body sizes from 3" through 24" compatible with UNI, DIN, ANSI raised face flanges are available.

CVB quarter turn metal seated rotary valves series with triple offset can operate in all the applications where there are requirements either for temperature and pressure rates very high and corrosive fluids. They present relevant advantages compared to other conventional valves as far as weight and ease to automate are concerned. Their utilization as either isolation and control valves ranges through different type of applications in the process lines : Petroleum ( Oil ) Industry - Off Shore, Refining, Storage and Transportation; Natural Gas- Off Shore, Treatment, Purification, Storage, Transportation; Chemical Plant -Process Applications. Utility steam; Pulp and Paper - Reduction Process, Steam; Power Plant - Low pressure steam, Central steam heating plants; Steel Mills - Hot gas.

Flow direction is stamped on body. Wafer Type. Suitable for mounting between flanges. Lifting Eyebolt from 30 Kg and heavier. Special features according to Customer`s requirement. Suitable for vertical &horizontal installation.

Basic Design ISO 15761-BS 5352. Wall Thickness / Pressure / Temperature Ends Dimensions According to ANSI B16.34 RF according to ANSI B16.5. Bore Reduced & Fu.

Basic DesignISQ15761/BS5352. Wall Thickness / Pressure/ Temperature According to ANSI B16.34. Ends Dimensions SWANSIB16.11. Bore Reduced & Full.

Basic DesignISO 15761-BS 5352. Wall Thickness / Pressure / TemperatureAccording to ANSI B16.34. Ends DimensionsRF according to ANSI B16.5. Bore Reduced & Full.

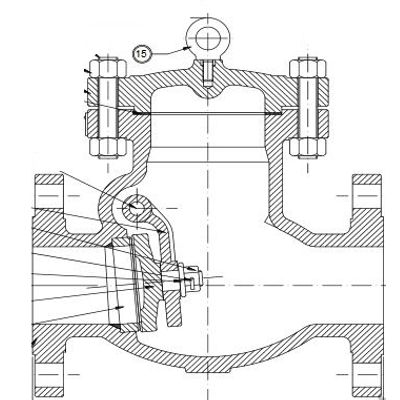

Flow direction is stamped on body. Bolted Cover Joint. Welded Seat Ring. Lifting Eyebolt from 30 Kg and heavier. Special features according toCustomer`s requirement. Suitable for vertical &horizontal installation. Available accessories:. Outside lever with counter weight. Shock absorber (pneumatic cylinder). Limit switch

Flow direction is stamped on body. Bolted Cover Joint. Welded Seat Ring. Lifting Eyebolt from 30 Kg and heavier. Suitable for vertical & horizontal installation•Special features according toCustomer`s requirement. Available accessories:. Outside lever with counter weight. Shock absorber (pneumatic cylinder). Limit switch

Flow direction is stamped on body. Bolted Cover Joint. Welded Seat Ring. Lifting Eyebolt from 30 Kg and heavier. Suitable for vertical & horizontal installation. Special features according toCustomer`s requirement. Available accessories:. Outside lever with counter weight. Shock absorber (pneumatic cylinder). Limit switch
