With our patented, multi- statically tested Vario angle-adjustment system, both S and C mounting piles can be chosen. The angle-adjustment system is fixed with only 6 bolts. Our cross beams are individually adapted to each module layout. The advantage here is that the loads are distributed evenly across the entire frame design. Besides, it is also possible to further stabilize the cross beams to avoid excessive vibrations in the case of weather storms. The system is suitable for both framed and frameless modules.

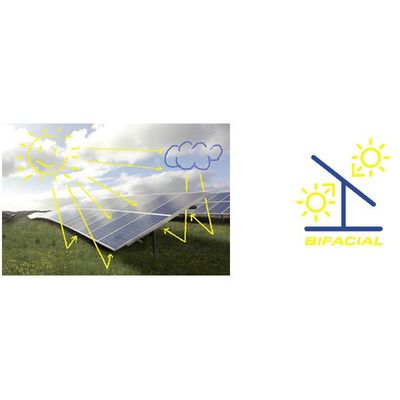

1-Post-System: suitable for bifacial use. No braces required in the system. Cable duct integrated in the system.

Our clever solution for dual agricultural use. 1 module portrait - with the latest module technology, module size approx. 1303x2384mm, approx.650 watts, suitable for flat and hilly terrain, East-West & North-South orientation possible, designed for wind loads up to wind zone 2 (0.58 kN/m² ), very little space requirement, simple stringing of the modules, including ducting the cables through the posts, the areas between the rows of modules can be used for agricultural purposes, low shading from profiles, anti-cyclical production peaks (compared to conventional south-facing PV systems) in the, morning and evening hours, therefore better network compatibility, for fields with up to 15° slope.

Installation on the module carrier or longitudinal beam. System properties: module carrier made of aluminum alloy → no contact corrosion with module frame. self-drilling screw: Inox A2-70 materialInox A2-70 material. also available in anti-theft variant (additionals Protection against module theft) for all current module-frame heights. for all systems in landscape and portrait orientation.

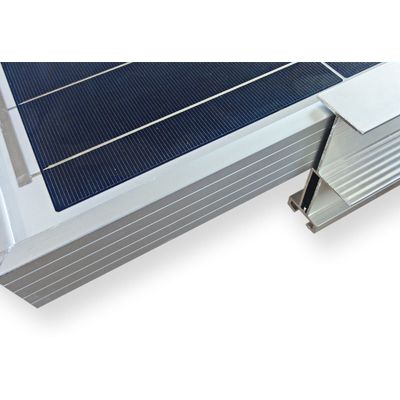

Slide-in module carrier profile. System properties: for all current module-frame heights, for all systems in landscape and portrait orientation, module carrier made of aluminum alloy → no contact, corrosion with moduie frame, wedge spacer allows optimal fixation of modules and uniform, installation optics

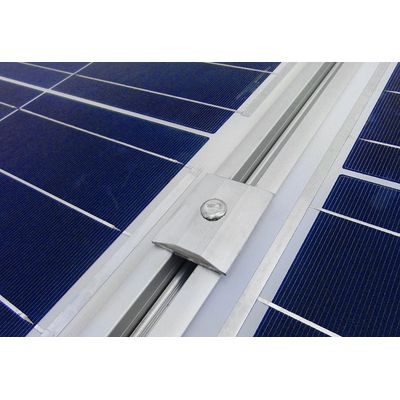

For clamping framed modules onto the module carrier. Ensures electrical conductivity. Prevents slipping. Optimal fixation of the modules. To be installed using CWF pliers only. Anti-theft protection.

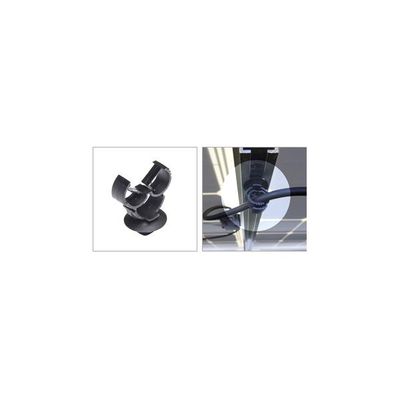

For easy fastening of module cables to our system. We recommend our UV-resistant plastic-material. Description: easy to mount, reusable, allows high flexibility for changes.

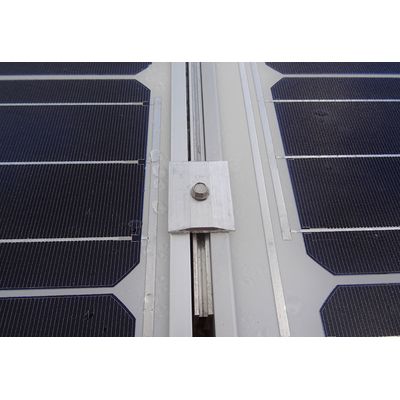

To protect the modules against theft we optionally offer our patented anti-theft screw. Description: easy installation, impossible to be removed using standard tools, Inox A2 -70 material, Art.No.: 3025545.
