Hori-Drain® is a pocket style Prefabricated Horizontal Drain (PHD) that improves soft ground. It is made of a mechanically strong PP core and a nonwoven filter jacket that is specialized for soil improvement and drainage works. Hori-Drain® expedites soil consolidation by facilitating rapid drainage of pore water discharged through vertical drains installed in soft ground. Hori-Drain® is installed by connecting with a part of prefabricated vertical drain(Verti-Drain®) exposed outside of the ground after installation. Hori-Drain® can effectively and economically replace the horizontal layer of natural aggregates(sand and gravel) thanks to its high level of drainage capacity. Core structure of 山 shape can prevent filter insert to water channels under high pressure in comparison to other types of core structures more effectively.
DAEHAN i. m. Co., Ltd. products

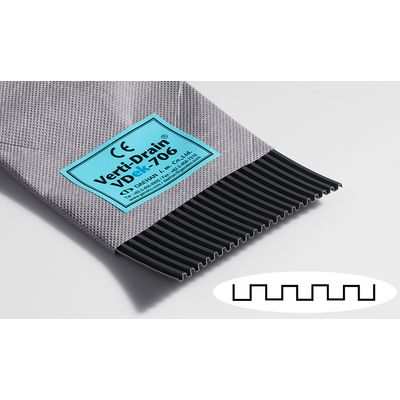

Prefabricated Vertical Drain
Verti-Drain® is a pocket-style prefabricated vertical drain (PVD) for the improvement of soft ground made from a mechanically strong PP core and a nonwoven filter jacket specialized for PVD application. The product quality of Verti-Drain® is assured by many certificates including ISO9001, CE, Q-mark, R-mark, Eco-Label, etc. Since Verti-Drain® is produced with filter materials having AOS suitable for the improvement of soft soil, filter clogging can be prevented over a long term. Verti-Drain® is resistant to friction and scratching caused during its installation and also has a physically durable structure with a high strength. Verti-Drain® has a high resistance to bacteria and chemicals. Verti-Drain® is materially and ecologically stable since it is made of polymers which don’t cause contaminants.

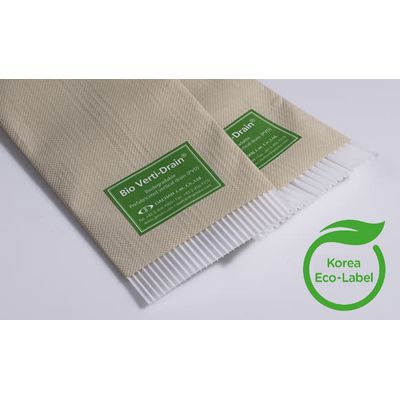

Biodegradable Prefabricated Vertical Drain
Bio Verti-Drain® is an eco-friendly biodegradable Prefabricated Vertical Drain (PVD) for soft ground improvement, which well reproduces physical advantages of Verti-Drain®. Bio Verti-Drain® is biologically degraded after installation and ground consolidation in natural soil conditions without leaving any residual plastic behind. Bio Verti-Drain® is the first prefabricated vertical drain which obtained “Eco-Label” from Ministry of Environment of Korea.

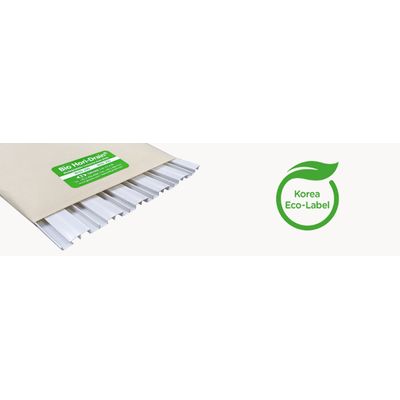

Biodegradable Horizontal Drain
Bio Hori Drain® is a Prefabricated Horizontal Drain (PHD) for soft ground improvement, which is biologically degraded in the natural soil condition after the completion of the ground consolidation without leaving any residual plastic behind. Bio Hori-Drain® is an eco-friendly product which can economically replace existing drainage system using natural sand and aggregates thanks to its high discharge capacity. Bio Hori-Drain® is composed of PBS(Poly Butylene Succinate) affiliated with aliphatic polyester and PLA(Poly Lactic Acid) extracted from cornstarch.

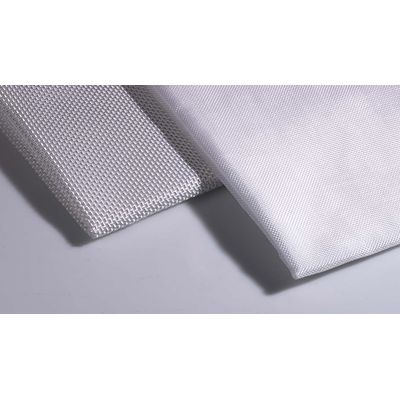

High Strength Woven Geotextiles
Geos Mat is a Polyester & Polypropylene Woven Geotextile applied for reinforcement, improvement and separation of weak soil. Geos Mat has 3 series of product types and can be variously selected.
