Dakota Micro, Inc. products

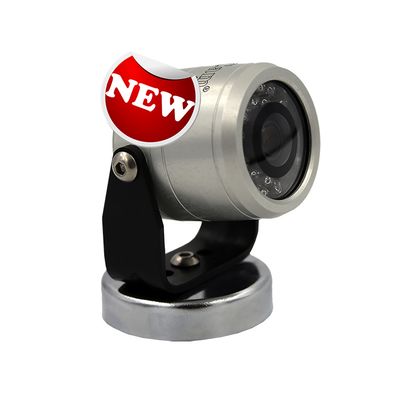

Cameras: Video system - NTSC. Effective Picture Elements 510*492. Image Pick-up Device SONY 1/3in Super HAD CCD sensor. Horizontal Resolution 540 Horizontal lines. Minimum Illumination 0 LUX @ F2.0. S/N Ration More than 48dB. Auto Electronic Shutter 1/60s~1/100,000s, ON/OFF Switch-able. Auto White Balance Color Temperature: 2500K~9500K. Auto Gain Control High/Low Switch-able. Auto Iris Control Video-Drive Iris Control. Scanning System Interlace 2:1. Gamma Characteristic 0.45. Lenses Furnished Board Lens 3.6mm/F2.0, Photogray Body. Synchronous System Internal, Negative sync.. Back Light Compensation On/Off Switch-able. Video Output 1 Vp-p/75 Ohms.. Operating Temp. -45°F~150°F (-42°C~66°C). Construction Aluminum Case. Waterproofing criteria IP 68/69. Dimensions 53x58 (L) mm (Body Only).

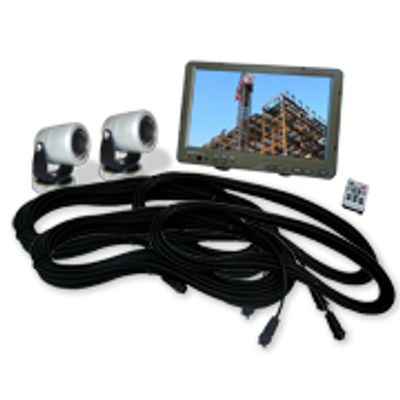

(Qty 1) 7` LCD Display Monitor w/stand & Remote (DMEC-7M). (Qty 2) 3.6mm AgCam Cameras w/ magnetic & hard mount (DMEC-RC). (Qty 2) 20` Cables w/watertight connectors (DMAC-EC20). (Qty 2) 60` Cables w/watertight connectors (DMAC-EC60). (Qty 1) 12v Power Adaptor (not pictured) (DMAC-12v) (Qty 1) 2000mA A/C Power Adaptor (not pictured) (DMAC-PA).

LED backlit Analog High Definition monitor with four (4) camera inputs, event triggers, remote, and power adapters.

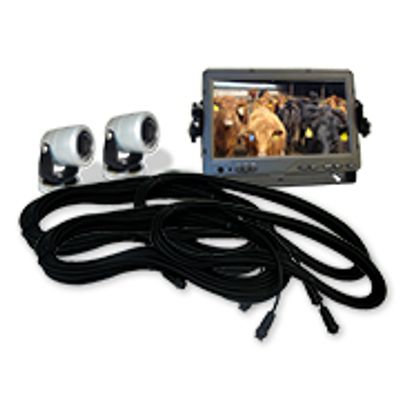

Kit includes: 7 inch LED AHD Backlit Monitor with Stand & Remote. Two 92° Field of view AgCam AHD Cameras. Monitor Wire Harness. Two 20ft Cables w/ Watertight Connectors. Two 60ft Cables w/ Watertight Connectors. 12v Cigarette Lighter Power Adapter. AC Power Adapter.

Kit includes: 9 inch AHD LED Backlit Monitor with Stand & Remote. 92° Field of View AgCam AHD Camera. 36 inch Camera tail. Monitor Wire Harness. 20ft Cable w/ Watertight Connectors. 60ft Cable w/ Watertight Connectors. 12v Cigarette Lighter Power Adapter. AC Power Adapter.

Cameras are fully programmable, if AHD is required, return to factory for reprogramming.
