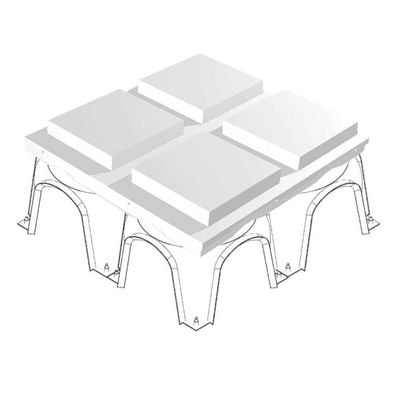

The combined use of Iglù and Iso Iglù saves time when working as the number of concrete castings are reduced to only one; the slab that is created also provides continuous insulation. The systems can be positioned in the soffit of the polystyrene panels before casting the slab. The surface can then be machine smoothed to adhere to the pavement. In conclusion, Iglù with the accessory Iso Iglù makes it possible to create a slab with a sanitary space and an insulated floor with reduced positioning times. In this case, as the Iso Iglù panels prevent the filling of the pillars, the slab will be a true slab to be suitably dimensioned and reinforced. Iso Iglù is a polystyrene panel with dimensions of 100 x 100 cm. It makes it possible to create a concrete structure with crossed ribbing with surrounding supports (walls and foundations).

Beton Up is an accessory for the Iglù system (or Atlantis) that prevents the concrete from forming pillars. In this way, the formworks take on the simple function of scaffolding on which a monolithic reinforced concrete slab can be created that is bound to the surroundings. With Beton Up the slab is not self-supporting. The use of Beton Up is necessary when a ventilated floor must be created when the ground is excessively deformed or when the clearance must be increased between two supports and form, for example with the combined use of Atlantis, an inspectionable tunnel.

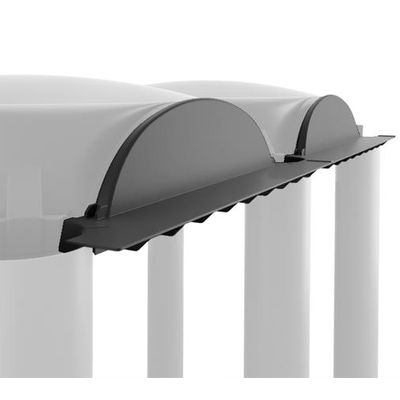

Accessory with occlusion and lateral compensation function. Is equipped with flexible vertical slats to adhere perfectly to the wall even in the presence of roughness and irregularity of the latter.

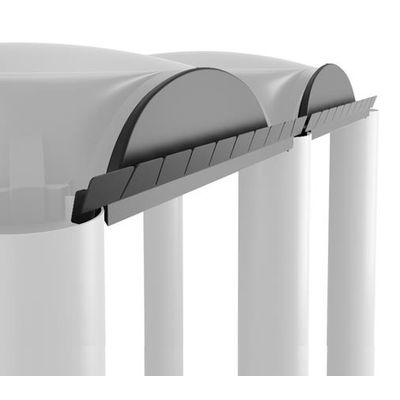

Accessory with occlusion and support of the compensation panel function, to be used whenever the dimensions of the intervention area do not correspond to an exact multiple of the Atlantis formwork measurements.

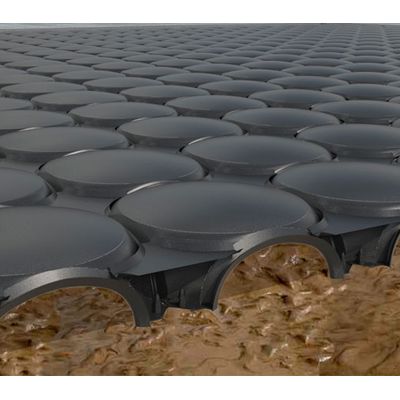

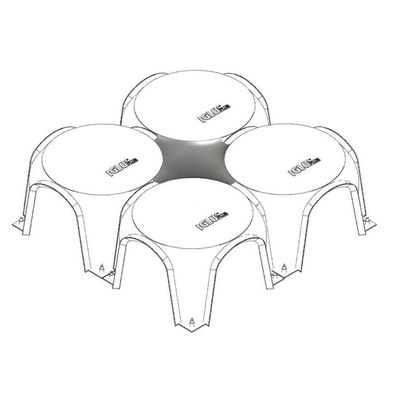

Iglù® is a market leading product that was created and patented for the realisation of sanitary spaces, ventilated cavities, under-floor cavities, ventilated floors and roofs during the construction and restructuring of civil and industrial buildings. This result of an ingenious idea dating back to 1993 considerably improved building methods. The innovative capacity of Iglù®; has received numerous successes and recognitions on a national and international level, quickly confirming it as a product of excellence in the building world.

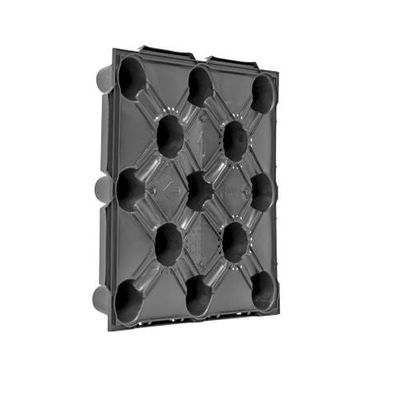

Sistema Atlantis (Atlantis System) is an advanced system for creating cavities in general, under-floor cavities and ventilated floors in newly constructed or restructured civil and industrial buildings, accumulation tanks, dispersion tanks, honeycomb rafts, low temperature cold rooms.

Exterior protection for walls in contact with the ground. This system is the safest way to protect below-ground walls which are intended to last over time and will accompany the structure throughout its service life. Retaining walls and other walls that are in contact with the ground are exposed to damp due to capillary action; added to this is the possibility of damp air resulting from inadequate thermal insulation. This situation can lead to the formation of mould, unpleasant odours and, more importantly, it can compromise the durability of the structure.

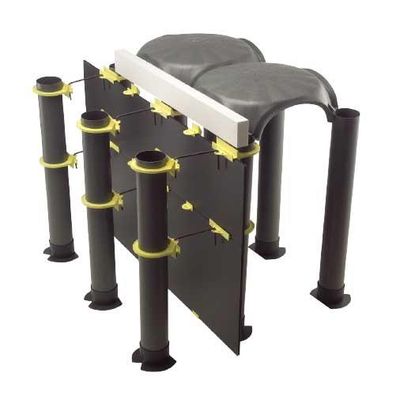

Disposable formworks for the simultaneous casting of foundation beams and the slab. Cassaforma Muro (Wall formwork) was designed as an alternative to traditional wood shuttering, which permits casting walls at a height, reversed beams and foundation bases, drastically reducing the time for creating the foundation. This disposable formwork consists of a combination of pipes, panels, collars and stirrups all made of polypropylene.
