Danmotech products

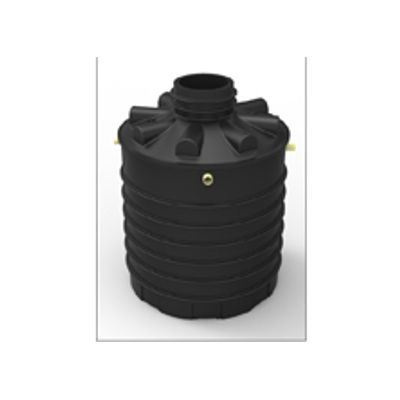

Danmotech icell packaged wastewater treatment plant is STP designed for treating sewage water from single households in rural areas for independent residential building, villas, and residential area. The icell series system is typically installed after a septic tank either in- or above ground. The population coverage of single icell stp covers 3-6 people. With several different units combination, the capacity will be increased.

Danmotech icube System is containerized wastewater treatment plant , most commonly used for treating waste water at distributed population, camps, oil rig sites & remote locations,etc. iCUBE decentralized waste water treatment plant for small size residential area, school, hospital, hotels, etc iCUBE comes in different versions of integration of cleanings steps, transportability and capacity, which is designed with modular concept and standard container specification with container size 20HQ and 40HQ. The population coverage of single unit cover 50-150 people. With several different units combination, the capacity will be increased to more than 130000people.

The average thickness of the septic and bio tank is 15mm and the minimum thickness is 10mm Material of the iSHELL WWTP: high quality modified PE material, adding antioxidants, uv-resistant additives, etc. can resist various types of corrosion Processing: shape and form the tank once a time with special process, the tank is seamless product, to ensure the sealing of the packaged sewage treatment plant. Appearance: designed by Germany experts, with corrugated shape, which is strong and with good looking appearance. Designed with high filling rate of wwtp biofilm carrier while the biofilm carrier is designed and installed vertically and full use of tank volume The aeration is even and the treatment effect is great High anti-floating performance, no additional anti-floating measures are needed Small volume and light weight of single tank, combined installation, easy to install and transport The service life can reach more than 20 years.

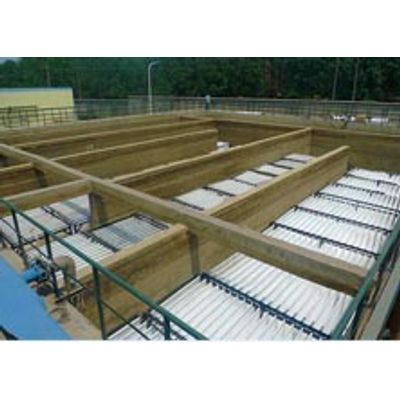

Danmotech has integrated many Chinese and world wide waste water treatment products and technologies to provide effective and advanced wastewater treatment system and solutions for different customers for varies environmental problems. Usually for big waste water treatment system or large sites or factories which need to treat big amount of waste water need a detailed and pro-check on conditions, such as local regulations, environment, waste water composition, etc. Also preliminary concrete septic tank and sedimentation tank are also needed to be constructed on site. What we do is that we will evaluate the projects’ condition firstly and provide professional consultation for customers including the blueprint of the sites and how to start the construction with the support of our advanced water water treatment t products and technologies such as our patented HBF, UC reactor.

Combined with the advantages of activated sludge watsewater treament and biofilm watsewater treament, HBF process can degrade COD and ammonium at the same time. HBF is a hybrid continuous/batch treating system developed based on the theories of continuous plug reaction, batch reaction and precipitation separation. It includes series processes of pre-denitrification, aerobic nitrification, post-denitrification and two alternatively operated sequence batch reactors. HBF integrates the biological nitrogen removal ability of two stages A/O (a process and the sequencing reaction or settling characteristics of SBR). The aerobic and SBR reactors are packed with our own products, fixed plate biofilm carriers, which can create a favorable ecological environment and proper hydraulic condition for the growth of dominant microorganisms.

Fixed plate biofilm carrier is developed by Tongji University for biological wastewater treatment plant. It is a new generation microbial immobilized carrier based on years of engineering practise. This filling material has been widely applied in the treatment of refractory organic wastewater. It has special structure shaped by a series of complex processes with bilayer films and interstice layer, so it possesses large specific surface area and high porosity properties. After ionized and hydrophilic modification during the shaping processes, the material surface is positively charged, so it is easier for negatively charged microorganisms to attach. Fixed plate biofilm carrier has excellent mechanical strength which ensures no damage under the hydraulic shear or during collision process between two packing material, Besides, this high polymer material can resist acid or alkali with more than 8-10 years lifespan.

As a biocarrier in bio waste water treatment plant, fixed bed biological filter has been widely used in small sewage treatment projects over the world. Material for the bio sewage treatment plant is the modified HDPE, a high quality plastic in polyolefins with corrosion resistant, high temperature resistant, aging resistant, and adding uv resistance, oxidation resistance, water and other additives to improve the performance during bio sewage treatment plant, after the special processing, it is tailored for sewage treatment, the service life can reach more than 20 years. Fast filming speed, large amount of film carring, stable operation, strong impact resistance capacity. Complete mixing of air and water, three-dimensional flow, excellent treatment effect; Stable structure, flexible combination, suitable for various areas.
