DEBEM s.r.l. products

Microboxer diaphragm pumps are characterized by exceptional performance, power and strength, making them ideal for pumping liquids with high apparent viscosity even if containing suspended solids. The stall-prevention pneumatic system assures a safe pump running and it does not need lubricated air. Self-priming dry capacity even with considerable suction head, fine tuning of speed without pressure loss and the possibility of dry operation without suffering damage mean that these pumps offer unrivalled versatility. In addition, the huge choice of construction materials allows selection of optimum chemical compatibility with the fluid and/or environment without neglecting the temperature range. They are specifically designed for demanding applications with high humidity or in potentially explosive atmospheres (ATEX certification).

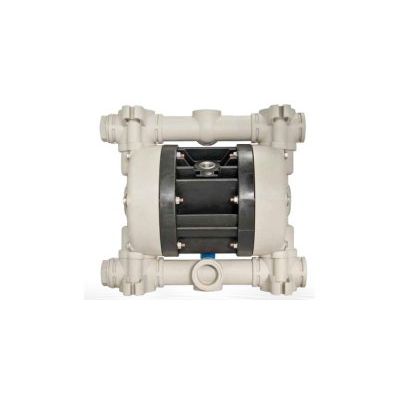

Cubic 15 mini diaphragm pumps are characterized by exceptional performance, power and strength, making them ideal for pumping liquids with high apparent viscosity even if containing suspended solids. The stall-prevention pneumatic system assures a safe pump running and it does not need lubricated air. Self-priming dry capacity even with considerable suction head, fine tuning of speed without pressure loss and the possibility of dry operation without suffering damage mean that these pumps offer unrivalled versatility. In addition, the huge choice of construction materials allows selection of optimum chemical compatibility with the fluid and/or environment without neglecting the temperature range. They are specifically designed for demanding applications with high humidity or in potentially explosive atmospheres (ATEX certification).

FDA Foodboxer 30 diaphragm pumps are characterized by exceptional performance, power and strength, making them ideal for pumping liquids with high apparent viscosity even if containing suspended solids. The stall-prevention pneumatic system assures a safe pump running and it does not need lubricated air. Self-priming dry capacity even with considerable suction head, fine tuning of speed without pressure loss and the possibility of dry operation without suffering damage mean that these pumps offer unrivalled versatility. In addition, the huge choice of construction materials allows selection of optimum chemical compatibility with the fluid and/or environment without neglecting the temperature range. They are specifically designed for demanding applications with high humidity or in potentially explosive atmospheres (ATEX certification).

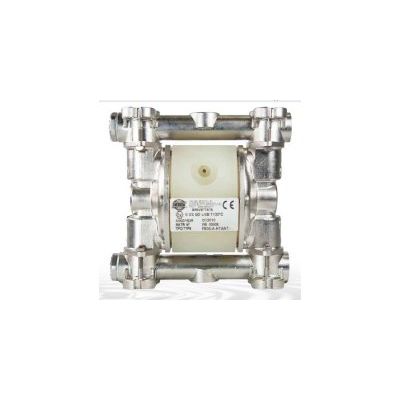

SANITARY DIAPHRAGM PUMP for handling food and pharmaceutical fluids. Their constructive principle makes them especially suitable for heavy applications with a lot of humidity or in a potentially explosive environment (ATEX certification). 3A certified, made with mechanically polished Aisi316 L, the SANIBOXER pump is designed for the Food-Processing,Cosmetic and Pharmaceutical industry.

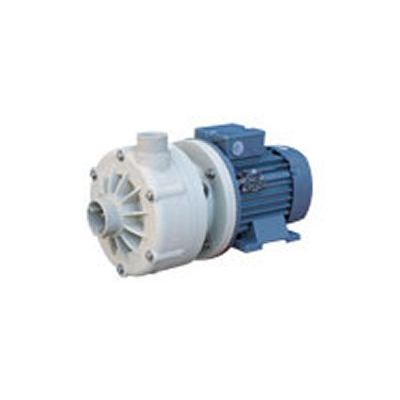

MB 80 resin-encased horizontal centrifugal pumps are pumps operated by a direct-drive motor (max 3000 rpm) for fast fluid transfer and/or drainage with flow rates ranging from 6 to 75 m3/hour. Their special open-impeller design allows pumping even with very dirty liquids having apparent viscosity up to 500 cps (at 20°C) and small suspended solids. There are two versions available with different internal mechanical seal depending on use, TL (lip seal) and TS (bellows seal).

MB 100 resin-encased horizontal centrifugal pumps are pumps operated by a direct-drive motor (max 3000 rpm) for fast fluid transfer and/or drainage with flow rates ranging from 6 to 75 m3/hour. Their special open-impeller design allows pumping even with very dirty liquids having apparent viscosity up to 500 cps (at 20°C) and small suspended solids. There are two versions available with different internal mechanical seal depending on use, TL (lip seal) and TS (bellows seal).

MB 110 resin-encased horizontal centrifugal pumps are pumps operated by a direct-drive motor (max 3000 rpm) for fast fluid transfer and/or drainage with flow rates ranging from 6 to 75 m3/hour. Their special open-impeller design allows pumping even with very dirty liquids having apparent viscosity up to 500 cps (at 20°C) and small suspended solids. There are two versions available with different internal mechanical seal depending on use, TL (lip seal) and TS (bellows seal).

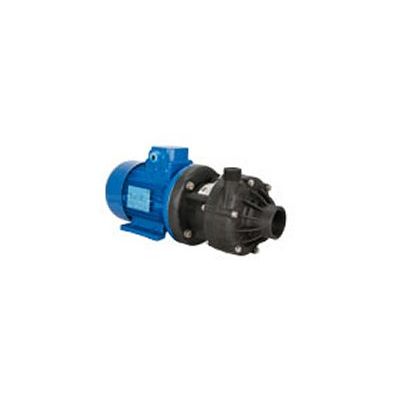

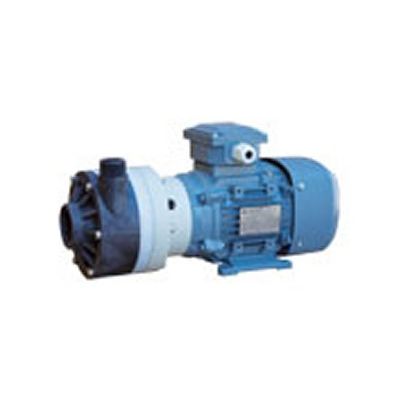

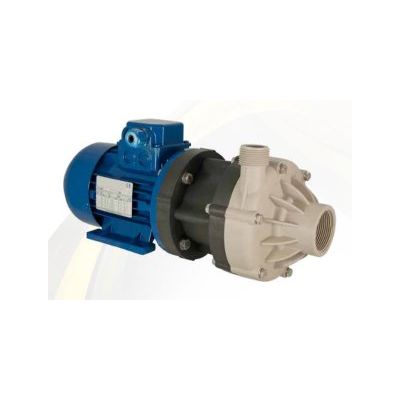

A couple of magnets leads the operation of the pump; the outer magnet placed on the drive shaft transmits the motion to the inner magnet integrated with the impeller that is hermetically insulated. The pump impeller is not physically fixed to the drive shaft, seals are therefore eliminated and this consequently avoids leakages of the liquid drawn by the pump which are usually due to its wear and tear. The pump head is manufactured with few components, thus the maintenance of which becomes extremely easy. The materials used as standard are polypropylene (pp) and polyvinylidene fluoride (pvdf). The pumps can’t run dry. Dirty liquids can reduce the pump life Working temperatures: PP min -10/max 65°c - PVDF min -10/max 90°c.

A couple of magnets leads the operation of the pump; the outer magnet placed on the drive shaft transmits the motion to the inner magnet integrated with the impeller that is hermetically insulated. The pump impeller is not physically fixed to the drive shaft, seals are therefore eliminated and this consequently avoids leakages of the liquid drawn by the pump which are usually due to its wear and tear. The pump head is manufactured with few components, thus the maintenance of which becomes extremely easy. The materials used as standard are polypropylene (pp) and polyvinylidene fluoride (pvdf). The pumps can’t run dry. Dirty liquids can reduce the pump life. Working temperatures: PP min -10/max 65°c - PVDF min -10/max 90°c.

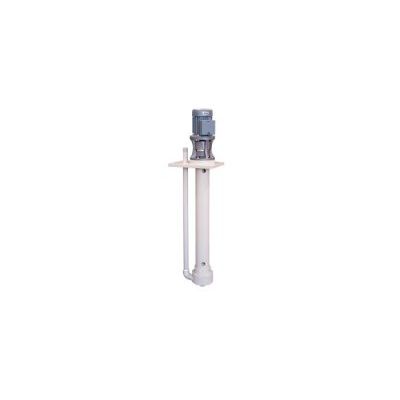

The IM 80 series of resin-encased vertical centrifugal pumps features high-performance pumps for fixed installations with pump immersed directly in the tank and operated by a directdrive electric motor (max 3000 rpm) for fast fluid drainage with flow rates ranging from 6 to 75 m3/hour and head up to 38 m. The special design of this type of pump avoids the use of internal mechanical seals (subject to heavy wear) and ensures that any accidental spillages are collected in the tank. The open impeller allows continuous pumping even with very dirty liquids having apparent viscosity of up to 500 cps (at 20°C) and small suspended solids. The choice of pump construction materials allows selection of optimum chemical compatibility with the fluid and/or environment without neglecting the temperature range.
