Dekoron Unitherm products

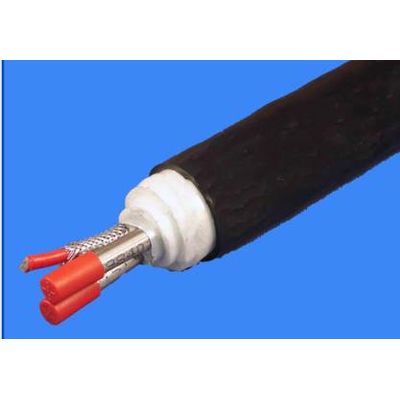

The DEKORON/Unitherm™ High temperature buffered self regulating heater bundles are designed to provide freeze protection at a low ambient of -20°F when the maximum continuous core temperature exceeds 250°F with the heater power on. By adjusting the insulation between the heated core and the self regulating heating element, freeze protection of process tubes with operating at up to 1,100°F can be achieved.

DEKORON/Unitherm Series 4200 Aerogel pre-insulated tubing utilizes nanotechnology to provide the highest performing thermal insulation available today. Our thermally insulated transportation lines are suitable for steam, gas or liquid transport and may be designed for applications ranging from cryogenic temperatures to superheated steam.

The heat traced sample/umbilical will maintain the gases at an appropriate temperature all the way from the probe assembly to the analyzer shelter. Good engineering practice dictates that this be short as possible but it is of more importance to place the analyzer in a convenient location. Lengths up to 1,000 feet are possible. The sample umbilical bundle will contain one or more tubes for the sample gas and may contain additional tubes for instrument air and calibration gas. It may also have conductors and control wires for other functions needed at the Probe Assembly. The materials of the sample tube may be either Teflon or stainless steel depending on the temperature requirement. Typical monitored emissions include: sulfur dioxide, nitrogen oxides, carbon monoxide, carbon dioxide and volatile organic compounds.
