Della Foglia s.r.l. products

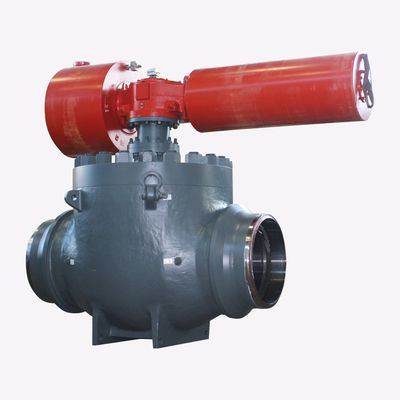

The Top Entry ball valve design is characterized by one-piece body construction with top access to all internal components. Top Entry Ball Valves are the preferable solution when it is required to perform in line maintenance and when the reduction of possible leakage path is mandatory. The body can be manufactured from forged billet or high-quality castings.

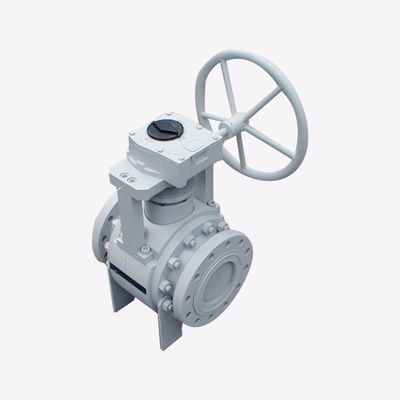

In floating ball valves design the ball is supported by the seats. Under pressure, the ball is pushed against the seat. The range of Della Foglia floating ball valves includes side or top entry, bolted body or threaded body. Materials of construction are carbon steel, stainless steel or any exotic alloy.

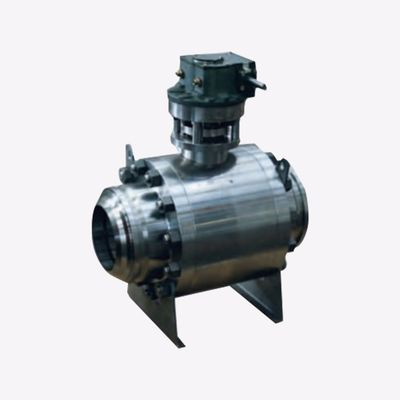

In fully welded ball valves body and closures are welded together; the result is a solid assembly with no leakage paths. A fully welded application is a preferable solution when no maintenance is scheduled on valves and when it is mandatory to avoid any external leakage. A typical application is for underground service or subsea. Welding is performed by highly qualified welders, in accordance with all applicable ASME or EN requirements.

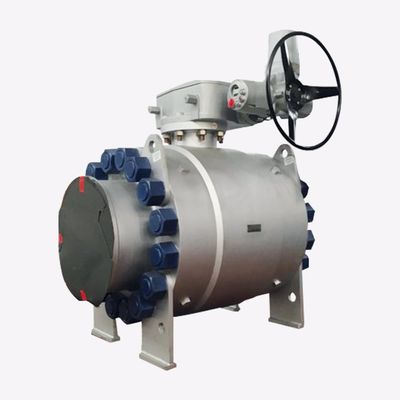

Our valves for high pressure conditions (up to 15.000 psi) are fully compliant and certified to API 6A.

Our valves are based on proper design of the ratios of the pressure containing parts and are manufactured using seals and specially shaped metal seats. Our valves are able to withstand temperatures up to 450°.

We can provide valves which are able to resist abrasive fluids with a special combination of tungsten or carbide coated metal seats and highly engineered features to protect the sealing areas.

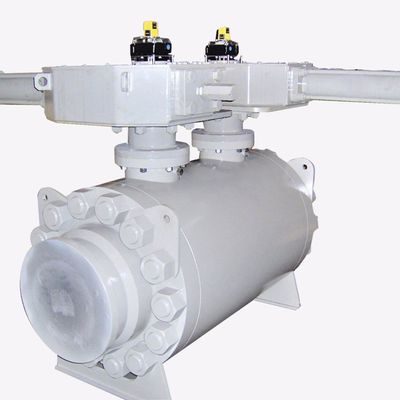

Double Ball Valves are basically made up of two ball valves in one solid body. They provide two physical barriers against downstream leakages with a very compact pattern. A center bleed port between the balls allows testing of valve’s performance and provides a “double block and bleed” feature with maximum safety. The double block and bleed design makes it possible to reduce the pressure to zero in the body cavity, while the line is in pressure and the balls are in closed position. This procedure is possible also while the balls are in opened position if the valve is without equalization hole (Fully Double Block and Bleed).

If your project demands reliable automated valves, we offer a comprehensive solution tailored to meet your needs. Our product range includes a variety of actuator types such as electric, pneumatic, hydraulic, gas-over-oil, and electrohydraulic. Each actuator type is meticulously designed to seamlessly integrate with our valves, ensuring optimal performance and reliability. Our automated valves undergo rigorous testing and certification processes to comply with specific project requirements, providing you with peace of mind and assurance of quality. These valves are ideal for applications in the environmental, medical, energy, and agricultural industries, offering robust and efficient control for your systems. Trust our expertise to deliver high-quality automated valves that enhance the efficiency and reliability of your operations.
