Delta Epsilon Instruments Inc.. products

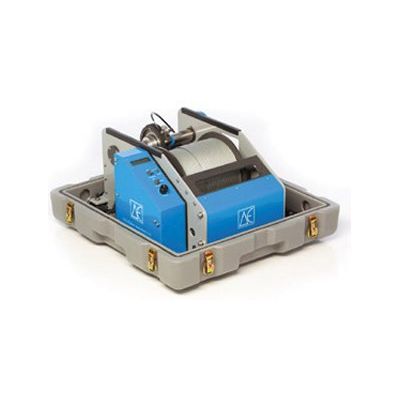

The 6 Series logging systems are our highest performance portable loggers with maximum depth capability and a number of significant operational features. Available configurations include the 600 DL as a six hundred meter single conductor system, 6B-1K as a one thousand meter system or GVX4 as a five hundred meter four conductor system capable of running borehole video as well as geophysical logs.

Our most popular logger, this very compact, highly refined, versatile device is in use around the world. Its highly durable design, optimal size and ease of use make it truly unique among commercially available portable borehole loggers.

The 1 Series set a new standard for value, refined simplicity, versatility and performance in portable borehole loggers/ well logging systems. They are unequaled among commercially available portable logging systems for the economical and precise exploration of water wells and other drill holes. Truly portable, the 1 Series Delta Epsilon Borehole Logging Systems are digital, state-of-the art manually cranked loggers. The 1 Series loggers being manually cranked confer several desirable characteristics. These include lighter weight, increased portability, reduced system complexity and lower cost.

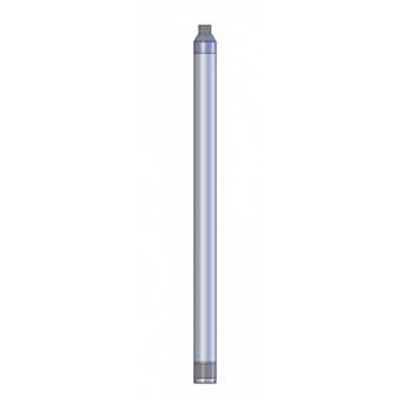

Measurement Range:  Hole Diameter: 50.8mm – 356mm (2″ – 14″).  Diameter:  41.3mm (1.63″). Length:  1499mm (59.0″). Weight: 7Kg (15.4Lb). Pressure Rating: 30.3MPa (4400PSI). Operating Temperature: -20o to 60oC (-4o to 140oF).

Description: Borehole Video. Measurement Range: High resolution color video: NTSA:525 Lines, 60 scan/sec, 1.0 Lux. Diameter: Ø44mm (1.73″). Length: 578mm (22.8″). Weight: 1.8Kg (4 Lb). Pressure Rating: 22.7MPa (3300PSI). Operating Temperature: -20º to 60ºC, (-4º to 140ºF).

Description: Induction Conductivity. Measurement Range: 0.1mS to 10S/m. Diameter: Ø40.0mm (1.57″). Length: 762mm (30.0″). Weight: 2.0Kg (4.4Lb). Pressure Rating: 22.7MPa (3300PSI). Operating Temperature: 0º to 70ºC, (32º to 158ºF) .

Description: Magnetic Susceptibility. Measurement Range: 10e-5 to 10e-1 cgs. Diameter: Ø40.0mm (1.57″). Length: 1200mm (47.2″). Weight: 4Kg (8.8Lb). Pressure Rating: 22.7MPa (3300PSI). Operating Temperature: 0º to 70ºC, (32º to 158ºF).

Description: Spectral Gamma. Measurement Range: Three channel (K, U, Th) plus total count gamma spectrometer. Diameter: Ø40.0mm (1.57″). Length: 1200mm (47.2″). Weight: 3.5Kg (7.7Lb). Pressure Rating: 22.7MPa (3300PSI). Operating Temperature: 0º to 70ºC, (32º to 158ºF).

Description: Borehole Deviation. Measurement Range: Vector Magnetometer and two axis inclinometer. Diameter: Ø41.3mm (1.63″). Length: 1321mm (52.0″). Weight: 4.0Kg (8.9Lb). Pressure Rating: 30.3MPa, (4400PSI). Operating Temperature: -20º to 60ºC, (-4º to 140ºF).

The SC-133 scintillometers feature a contemporary state of the art approach, while incorporating many well proven design elements that just make a great deal of sense in a field worthy scintillometer. The Delta Epsilon SC-133 Portable Scintillation Counter represents a functionally superior concept for a hand held gamma radiation detection device. Its rugged practical design, simple operation and high sensitivity make it well suited for uranium exploration applications as well as environmental monitoring and health physics dosimetry.
