Delta Screens products

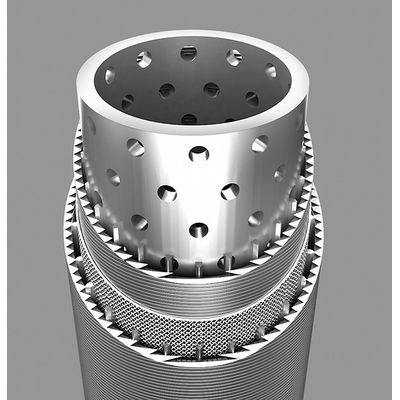

316L SS Filtration media, also available in CRA. Inner drainage layer and outer shroud design option to provide secondary sand control. A full range of micron ratings is available and the media may be customized to suit specific reservoir characteristics. The filtration media is constructed to provide maximum open area for unrestricted flow. Full range of sizes, high burst design.

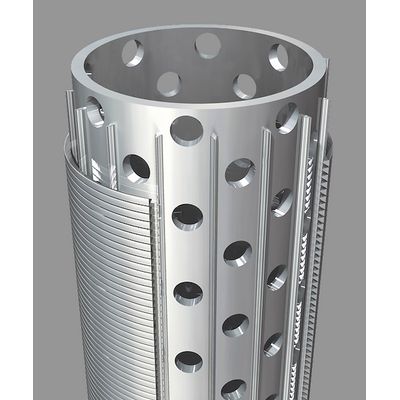

Features: Internal quality control of wrap wire specifications. Screens are available in standard service 316LSS or CRA alloys as required. Screen to base pipe attachment method provides maximum strength to withstand high loads in shear, compaction and torque. Wire dimensions and configurations are available for specific requirements varying from stand alone, OHGP, HRWP or FP deployments. Available in Range 3 lengths.

Diffusion bonded stainless steel media material. Media available in corrosion resistant alloys (CRA). Fixed geometry media pores resist movement under pressure. A full range of micron ratings available, designed as per reservoir requirements. Filtration media constructed to provide mazinmum area for unrestriced flow. Full range of sizes; thru tubing to 7" OD.

Centerpipes from Delta Screens are ideal for use in radial flow systems where high volume flow with minimal pressure drop is desired. When used in a downflow system, the process flow moves through the outer basket, across the media and is collected in the center screen. In upflow systems the flow is reversed. Our continuous slot design resists plugging to provide reliable media retention with less maintenance. Precision welded for superior strength and long-lasting durability, our centerpipes offer years of efficient and consistent flow rates. Delta Screens can manufacture centerpipes to suit your application in a wide variety of materials and sizes.
