Deltafluid products

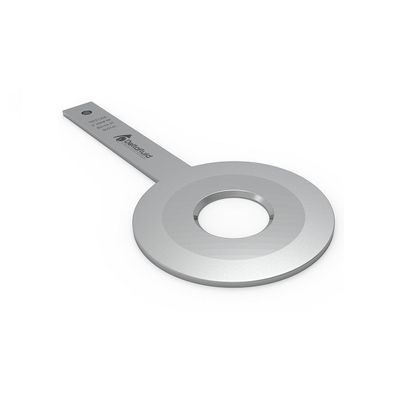

GENERAL DATA: Standards: ISO 5167-1 & 2, ASME MFC-3M, ISO / TR 15377. Mounting between flanges: ISO PN 2,5 to PN 420, ASME 150 # to 2500 #, others on consultation. Material: Standard: 304L / 316L stainless steel, others according to your application. Fluid: liquid, gas, steam. Diameter of pipes: from 25 to 1000 mm. Accuracy: 0.5% of max flow. Repeatability of the measurement: 0.1%. Pressure taps: in the corners, at the flange or D-D / 2.

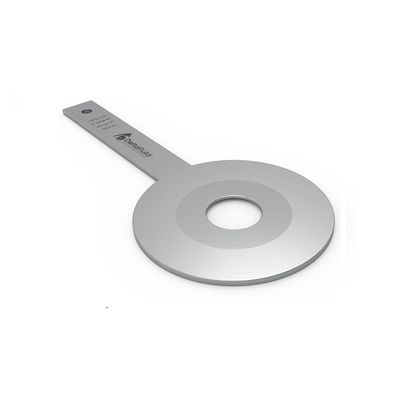

GENERAL DATA: Standard: ISO / TR 15377. Mounting between flanges: ISO PN 2,5 to PN 420, ASME 150 # to 2500 #, others on consultation. Material: Standard: 304L / 316L stainless steel, others according to your application. Fluid: liquid, gas, steam. Diameter of pipes: from 25 to 500 mm. Accuracy: 2% of max flow. Repeatability of the measurement: 0.1%. Pressure taps: in the corners.

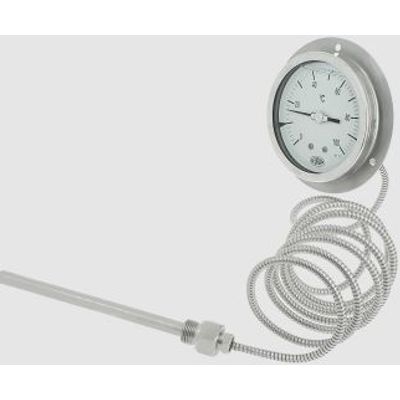

GENERAL DATA: Standard: EN13190. Remote measurement with capillary or direct measurement. Element of measurement: rigid bulb. With or without thermowell. As well as bimetallic thermometers: GENERAL DATA: Standard: EN13190. Element of measurement: bimetallic element. With or without thermowell

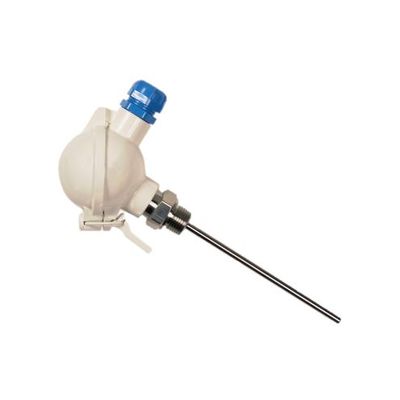

The resistance probe offers a measurement of great accuracy and very good long-term stability. A Pt 100 Ohm probe corresponds to a platinum resistance whose initial value is 100 Ohms for a temperature of 0°C. The measuring element consists of wound platinum wires whose resistance varies according to the temperature. The resistance / temperature correspondence is documented in the IEC 60751 standard. The temperature probe is often delivered with a connection head (see photo opposite).

GENERAL DATA: Standards: Element based on ISO 5167, ASME MFC-3M or R.W. MILLER. Mounting between flanges: ISO PN 2,5 to PN 420, ASME 150 # to 2500 #, others on consultation. Material: Standard: 304L / 316L stainless steel, others according to your application. Fluid: liquid, gas, steam. Diameter of pipes: all sizes.
