Deltech products

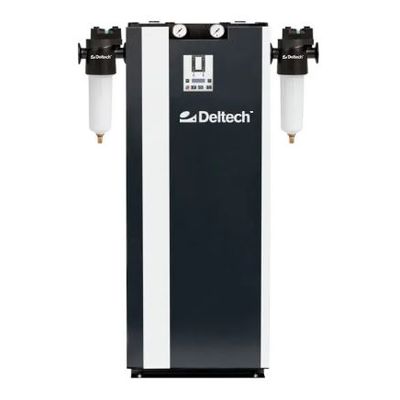

The DSHD Series by Deltech represents a line of heatless modular desiccant air dryers that are engineered for critical environments where moisture control is essential. Targeted at applications such as laboratories, hospitals, and pharmaceutical manufacturing, these dryers offer consistent performance with dew points meeting ISO 8573-1: 2010 Class 1 and Class 2 standards. The system operates by alternating between two desiccant beds using a process that directs compressed air through one tower while the other is being regenerated. This design ensures a continuous flow of ultra-dry air. The dryers deliver flow rates ranging from 7 to 40 SCFM, with an operation mechanism based on a solid-state timer for controlling purge and repressurization phases. Featuring compact and easy-to-install units, the DSHD Series integrates reliability with efficiency, making it suitable for installations with spatial limitations. The airflow is managed to maintain optimal dew point levels, even as external conditions fluctuate.

Deltech's DSHD Series Heatless Modular Desiccant Air Dryers are designed for environments requiring moisture-free compressed air to protect sensitive applications that demand low dew points. These dryers provide consistent dew points of ISO 8573-1: 2010 Class 1 (-94°F, -70°C) and Class 2 (-40°F, -40°C) with a flow capacity ranging from 7 to 40 scfm (12 to 68 nm3/h), making them suitable for critical applications such as laboratories, hospitals, pharmaceutical manufacturing, and other advanced technological installations. The system operates by directing compressed air into Tower 1 for drying while a portion of the dried air is used to regenerate the desiccant in Tower 2. The mechanism is controlled by an automatic solid state timer that ensures operational reliability by alternating the airflow between the towers for continuous drying. Designed for ease of installation, the DSHD Series is compact yet robust, offering a time-proven design with advanced features and consistent performance.

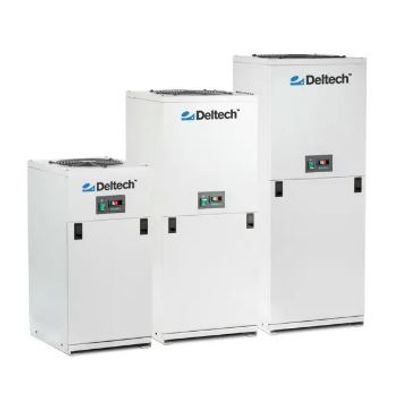

The HTDN Series by Deltech specializes in managing high-inlet temperature conditions for compressed air systems, handling temperatures up to 180°F (82°C). These dryers are engineered to deliver reliable performance over extended periods, integrating compact, efficient heat exchangers with helix flow paths to maximize heat exchange efficiency without fouling. The design employs a robust two-stage separator/filter for the efficient removal of condensed oil and water across varied flow ranges. An air-operated, automatic condensate drain ensures seamless discharge without air loss or the need for timer adjustments. The refrigeration temperature is maintained automatically, negating the need for manual tweaking across different load, ambient, or seasonal conditions, thus preventing freeze-ups. With a hermetic refrigeration system, these units operate with the same reliability as household refrigerators, requiring no maintenance or adjustments, offering dependable, low-intervention operation.

The Del-Monox Breathing Air Purification systems provide an effective solution for managing respiratory hazards at industrial workplaces. Operating independently of the ambient environment, these systems integrate with air respirators, hoods, and masks to deliver contaminant-free breathing air, ensuring worker safety. They employ advanced air scrubbing technology to eliminate pollutants from both ambient and compressed air sources. Manufactured by Deltech, a prominent industry leader known for high-quality compressed air solutions, these units are designed for demanding industrial applications. Users can consult the factory for any non-industrial usage. These systems are rated for optimal capacity under CAGI conditions of 100 psig and a 100°F saturated inlet, meeting stringent safety and performance standards for reliable operation across a variety of settings.

Deltech offers a variety of membrane compressed air dryers, specifically the DMD and ESM Series, which serve as modular solutions for low dew point applications. The DMD Series is designed with compactness and simplicity in mind, requiring no electrical connection, thus ensuring straightforward installations and dependable operation. It covers ISO 8573.1 Quality Class 2 to Class 5 with pressure dew points between -40°F and +50°F. Alternatively, the ESM Series features energy-efficient designs with digital purge control (DPC), optimizing performance for intermittent air demands and safeguarding against pressure surges. It notably reduces purge waste, thus providing energy savings alongside streamlined and reliable installation. These dryers are ideal for technical environments where precise air quality and sustainability are crucial, delivering a balanced solution for various industrial applications.
