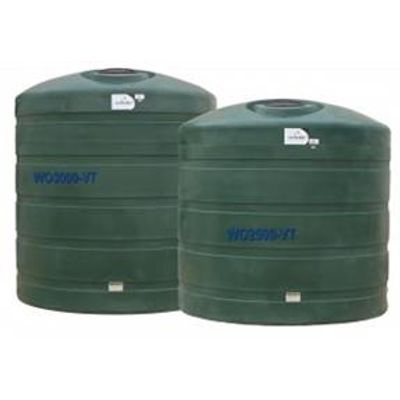

These Water Only Vertical tanks are freestanding for indoor or outdoor stationary applications. They are designed for the storage of chemicals with a specific gravity of 1.0 or less. They are manufactured from FDA compliant high-density polyethylene with U.V. stabilizers. The tanks are available in dark green.

Batch Tanks are designed for indoor applications.  Perfect for batch chemical/mixer mounting systems as well as many other applications. All tanks feature 8″ lids and one standard fitting.  Both polyethylene and metal stands (when used with Vertical Stand Adaptor) are available for the Vertical Batch Tanks.  Tanks are manufactured from medium-density polyethylene with U.V. inhibitors and are designed for the containment of liquids up to 2.0 specific gravity.  Tank walls are translucent for level viewing and equipped with liter and gallon indicators.

Open Top – Vertical Batch Tanks are designed for indoor applications.  Perfect for batch chemical/mixer mounting systems as well as many other applications.   All tanks feature 8″ lids and one standard fitting.  Both polyethylene and metal stands (when used with Vertical Stand Adaptor) are available for the Vertical Batch Tanks.  Open Top – Vertical Batch Tanks come standard with bolt-on lid, a polyethylene hinged lid option is also available.   Tanks are manufactured from medium-density polyethylene with U.V. inhibitors and are designed for the containment of liquids up to 2.0 specific gravity.  Tank walls are translucent for level viewing and equipped with liter and gallon indicators.

Cone Bottom Batch Tanks are designed for indoor applications.  Perfect for batch chemical/mixer mounting systems as well as many other applications. All tanks feature 8″ lids and one standard fitting.  Tanks require stand for support.  Both polyethylene and metal stands  are available for the Cone Bottom Batch Tanks.  Tanks are manufactured from medium-density polyethylene with U.V. inhibitors and are designed for the containment of liquids up to 2.0 specific gravity.  Tank walls are translucent for level viewing and equipped with liter and gallon indicators.

Cone Bottom Tanks are selected when a more complete drain out of stored chemical is required in indoor or outdoor installations. Tanks require stands to support the conical bottoms. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors. Tank walls are translucent for level viewing and equipped with gallon indicators. View technical drawings by clicking on the part number below.

Cone Bottom Tanks are selected when a more complete drain out of stored chemical is required in indoor or outdoor installations. Flat Top Cone Bottom Tanks feature additional flats for fitting installation or mount.  Tanks require stands to support the conical bottoms. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors. Tank walls are translucent for level viewing and equipped with gallon indicators.

Dualline Double Wall Tank’s strong, durable, quality construction is designed for the containment of all chemicals rated for contact with polyethylene. Dualline™ tanks are freestanding double wall vertical tanks with a flat bottom for indoor or outdoor stationary applications. Double wall construction provides containment in the event the inner or primary tank is compromised. AN EPDM elastic seal is standard and seals the primary tank to the secondary tank to prevent dirt and moisture from entering the containment space between tanks.

Elliptical Tanks can be selected for stationary or transportable (non DOT approved) applications both indoors and outdoors. The elliptical tank lowers the center of gravity to enhance stability and visibility. The tanks feature a standard 2-1/2” collection sump on the bottom for full drain out. An 8-1/2” deep sump option is available on five sizes. Sump is located directly under the lid on standard tanks, but a center sump option is available on tanks from 500-1250 gallons. These tanks require the bottom to be fully supported with a cradle for use. The tanks are manufactured from medium-density polyethylene with U.V. stabilizers and are designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.

Feed carts come equipped with a polyethylene feed container with a capacity of 3.5 bushels. The steel base comes assembled with rubber wheels that can be upgraded to the deluxe model.

Free Standing Leg Tanks are selected when transportable (non DOT approved)containment is required for indoor or outdoor applications. Leg Tanks are equipped with molded-in legs to support the tank and band locators for tie down. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.
