Detection Instruments Corp. products

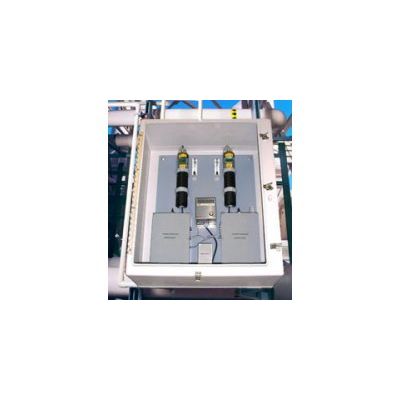

The Sycamore CEM (Continuous Emissions Monitor) is a flexible Hydrogen Sulfide Gas Monitoring System with full sampling capability. The CEM is a sophisticated system is configurable as a single, dual or three-point monitoring system and can be used to monitor the inlet, intermediate stage and outlet of odor control systems. By using advanced OdaLog Hydrogen Sulfide Gas Logger technology, the Sycamore CEM provides continuous 4 to 20 milliAmp output with real-time updates every 10 minutes for each point being monitored. The specially outfitted OdaLog(s) designed specifically for this application accurately measure H2S concentrations as low as 5 parts per billion (5 PPB).

The DI-COM is a single point continuous H2S perimeter monitor designed for monitoring and recording low level ambient H2S emissions. Housed within a NEMA 4X weatherproof enclosure, the monitor used advanced OdaLog technology to measure H2S gas concentrations from 5 ppb to 2 ppm, along with wind speed and direction. The system provides continuous 4 to 20 MilliAmp output with real-time updates every 10 minutes, displays data for field viewing and stores the data for later downloading and viewing using the OdaStat software. A wireless link is available for communication to a remote control panel or computer and can accept data from single or multi-point installations.

The Acrulog™ Differential Pressure Logger is simple and compact pressure data logger for harsh environmental monitoring. The Acrulog™ differential pressure logger has been specifically designed to work in harsh environments to log levels of differential pressure in sewerage systems, and scrubbers systems.

The Acrulog™ HN3 Gas Monitor (PPM) gas monitor is a portable data-logger, designed to survive in the harsh environments typically found within the waste water industry. All logged data can then be easily downloaded via Bluetooth® wireless technology. Optional outputs: 4-20mA, RS485, 4G LTE-M or NB-IoT  by connecting the data-logger to our own custom Acrustat software.

The Acrulog™ H2S Parts Per Billion Monitor (PPB) is a portable gas data-logger designed for indoor and outdoor environmental applications, to record low levels (0-2000PPB) of Hydrogen Sulphide (H2S), at sampling intervals of between 10 minutes and 1 hour. Standard model features built-in sample pump, internal batteries. Optional outputs: 4-20mA, RS485, 4G LTE-M or NB-IoT. External power input is available and included with the 4-20mA or RS485 cable waterproof cable (5-15VDC). The Acrulog™ H2S Parts Per Billion Monitor (PPB) logs and provides data to ensure that offensive and nuisance odour emissions are within acceptable environmental levels. All logged data can then be easily logged and downloaded via Bluetooth® wireless technology and viewed in the custom graphing and data analysis Acrustat software.

The Acrulog™ IPX H2S Parts Per Million Monitor (PPM) is designed for indoor and outdoor continual use and will record levels (0-20PPM, 0-50PPM, 0-200PPM, or 0-1000PPM) of H2S with memory backup. Standard model features built-in 4-20mA industrial output, internal batteries and is compatible with an external power input via the waterproof cable  provided (5-15VDC).

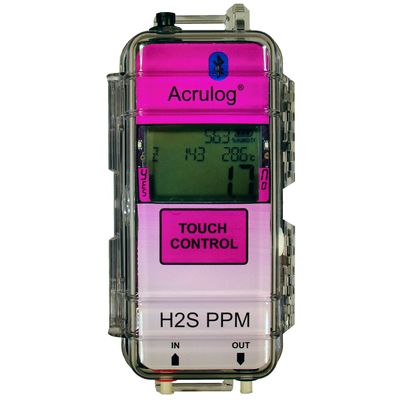

The Acrulog™ H2S Gas Monitor (PPM) gas monitor is a portable data-logger, designed to survive in the harsh environments typically found within the waste water industry. All logged data can then be easily downloaded via Bluetooth® wireless technology. Optional outputs: 4-20mA, RS485, 4G LTE-M or NB-IoT  by connecting the data-logger to our own custom Acrustat software.

The Acrulog™ IPX H2S Dilution Monitor is designed for indoor and outdoor continual use and will record levels (0-20ppm, 0-50PPM, 0-200ppm, or 0-1000ppm) of H2S and features remote-draw sampling capability and memory backup. The Acrulog™ IPX H2S Dilution Monitor is designed for long term continual use to record high PPM levels of H2S. The H2S monitor uses a built-in sample pump & dilution system designed for precision mixing of filtered air to reduce sensor exposure and moisture. The H2S monitor is capable of drawing a remote sample from up to 15 meters away with custom sample line & fittings. Standard model features built-in 4-20mA industrial output, internal battery back-up and is compatible with an external power input via the waterproof cable provided (5-15VDC).
