Develogic products

HAM.BASE, the develogic hydro acoustic modem, is a powerful and reliable underwater communication system. It is designed to meet the requirements of research and exploration, established in various subsea communication projects.

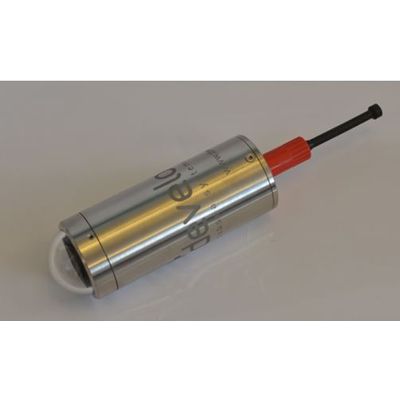

The develogic satellite recovery beacon is suitable as compact telemetry solution for non-submerged applications such as data buoys etc. With the satellite recovery beacon, it is possible to download data via the satellite link from equipment that was not recoverable but is drifting on the surface.

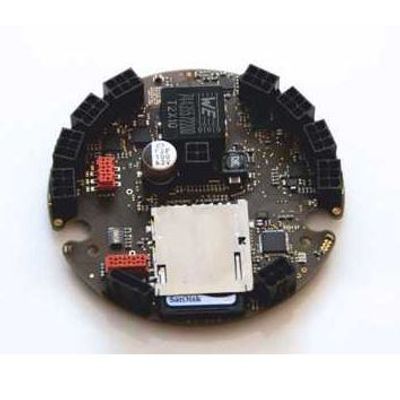

develogic multifunctional interface and data logging module features 8 serial ports (2 x RS232/422/485 and 6 x RS232) and SDHC/SDXC based data logging functionality with now up to  128GB storage capacity.

The develogic Sono.Vault acoustic recorder and signal analyzer is designed for long- term recording and monitoring of marine acoustic emissions. Driving design parameters during development were energy-efficiency, premium recording quality, application flexibility and ruggedness. The system is able to record acoustic signals continuously with sampling rates up to 96kHz @24bit sample resolution and 196ksps @16bit. The system can also record according to programmable schedule. The total recording capacity is extendable up to 4.4TB

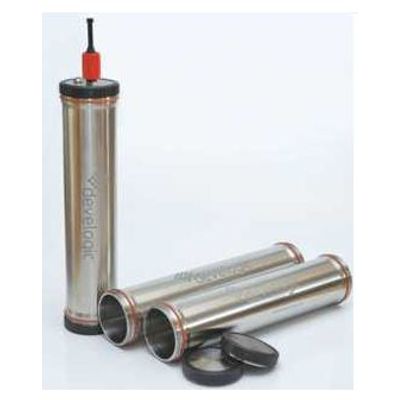

DW.TH is a develogic standard titanium housing. It is available with an inner diameter of 111mm and an inner usable length of 532mm, which can be easily extended by adding another body by adapters.

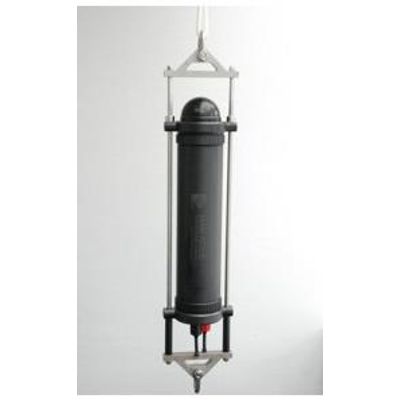

Develogic standard MCH mooring frames allow easy system installation of single and double length MCH housings with either oceanographic or buoy moorings. The frames are manufactured from stainless steel grade 1.4571 – housing brackets are synthetic. The standard version is rated to safe operating load of 10kN. The heavy duty frame has a SOL of 40kN. Custom – also higher strength – versions are available upon request.

The develogic underwater video camera is a wide angle subsea video and still image recording system. Its depth rating of 6,000m and the software selectable field of view angles of 149.2°, 115.7° and 79.7° make it an ideal solution for installation on deep towed systems or landers.

The new MI.Sat II buoy is based on a design already proven in various deployments near the Cape Verde Islands and in the Irminger Sea south of Greenland. The buoy is suitable for deep water moorings with mooring lengths of 6,000m and more. As the unit is designed to withstand external pressure up to 50bar, temporary submerging during deployment or heavy weather is not a problem.

The develogic compact seafloor lander is available with several standard sensor packages. Additional customer specific sensors are possible. The high level of system integration allows us to provide our customers with unprecedented functionality at very economic prices. The lander can easily be deployed and recovered due to the compactness and lightweight design.
