Dieselcraft Fluid Engineering Div of Magnum Group products

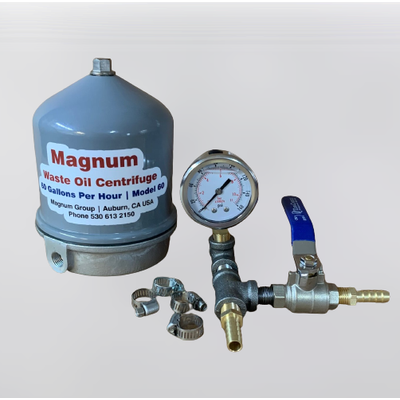

The flow rate capacity of the oil centrifuge is 1 GPM or 60 gallons per hour. So one 55 gallon drum of oil will take less than 60 minutes to process once at operating temperature. The oil centrifuge at 80 PSI generates a centrifugal force of 3017 G?s Removing solids to less than 2 micron. No filters to buy. You can build a filtration system with this unit. The oil centrifuge will filter waste vegetable oil, Waste Motor Oil, hydraulic oil, and ATF that is heated to over 150 F. To make the system work you need this pump or equivalent: Standard Duty DAYTON Rotary Gear Pump: Carbonator, 1/3 hp HP, 115/230. Item #41TK24 Mfr. Model  41TK24.

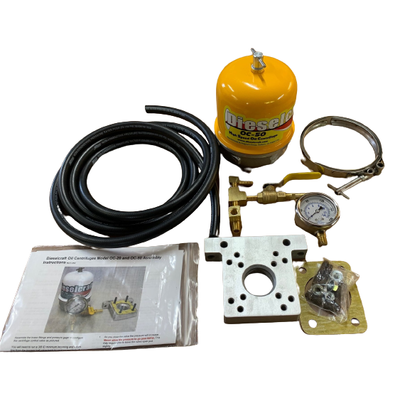

Centrifuge only kit: 108 gallons per hour Model OC-50. Includes: Centrifuge. Mounting plate for 55 gallon drum side mount or drain pipe mounting. Control valve with pressure gauge, fittings, ball valve and 10 feet of pressure hose. To make the system work you need a Standard Duty gear pump: DAYTON Rotary Gear Pump: Carbonator, 1/2 hp HP, 115/230 Item 41TK27 Mfr. Model 41TK27  or equivalent that will give you at least 3 gallons per minute at 100 psi. The more flow the pump puts out will be bypassed, meaning a 10 gallon per minute pump will only clean 2 gallon and bypass 8 gallons. Do not get a pump with more than 1/2 HP or you will be breaking things.
