Dintech Valves Private Limited products

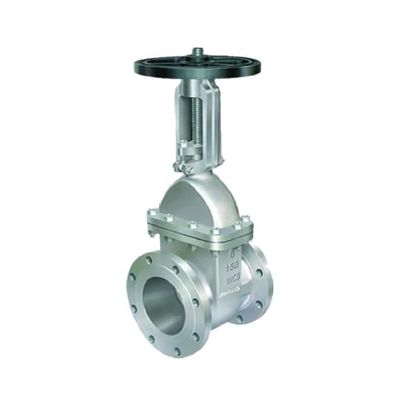

Dintech - Gate Valve
Technical Data: Manufacturing Std : API 600. Face to Face, End to End : ASME B16.10. End Connection : Flanged Ends to ASME B16.5, RF. End Connection : Butt Weld Ends to ASME B16.25. Inspection and Testing Std : API 598 TEST PRESSURE.
Dintech - Model 150 - Forged Steel Gate Valve
Technical Data: Manufacturing Std : BS 5352 / API 602. Face to Face : ASME B16.10. End Connection : Flanged Ends to ASME B16.5, RF. Inspection and Testing Std : BS 6755 (Part-1) / API 598

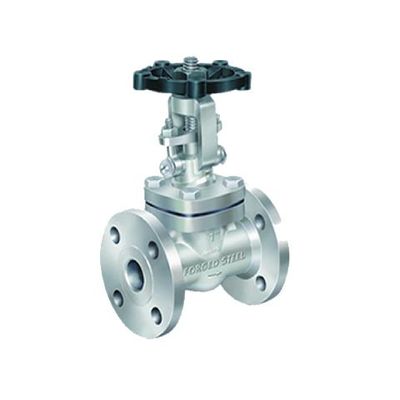

Dintech - Model ASA - Globe Valve
Technical Data: Manufacturing Std : BS 1873. Face to Face, End to End : ASME B16.10. End Connection : Flanged Ends to ASME B16.5, RF. End Connection : Butt Weld Ends to ASME B16.25. Inspection and Testing Std : BS 6755 (Part-1).
Dintech - Model Din - Globe Valve
Technical Data: Manufacturing Std : BS 1873 / DIN 3356. Face to Face : DIN 3202 (Part -1). End Connection : Flanged Ends to DIN 2545 (PN 40). Inspection and Testing Std : BS 6755 (Part-1).
Dintech - Forged Steel Globe Valve
Technical Data: Manufacturing Std : BS 5352. Face to Face : D N Bros. Std. End Connection : Screwed Ends to BSP/BSPT/NPT. End Connection : Socket Weld Ends to ANSI B16.11. Inspection and Testing Std : BS 6755 (Part-1).
Dintech - Y- Strainer
Technical Data: Manufacturing Std : Mfg. Std. Face to Face : DIN 3202 (Part -1) for size 200mm & Smaller. End Connection : ASME B16.10 for size 250mm & Larger. End Connection : Flanged Ends to ASME B16.5 RF / PN 40. Inspection and Testing Std : BS 6755 (Part-1).

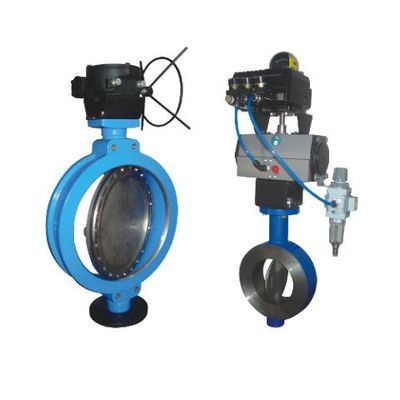

Dintech - Butterfly Valve
SHAFT: Provides dependability and positive disc positioning standardized positive attachment for handles or actuators.

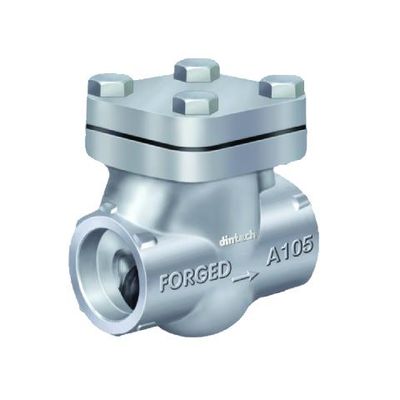

Dintech - Forged Steel Lift Check Valve
Technical Data: Manufacturing Std : BS 5352. Face to Face : D N Bros. Std. End Connection : Screwed Ends to BSP/BSPT/NPT. End Connection : Socket Weld Ends to ANSI B16.11. Inspection and Testing Std : BS 6755 (Part-1).

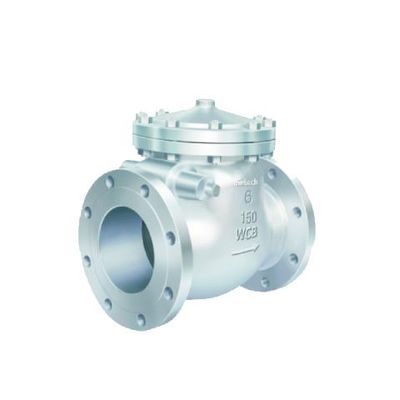

Dintech - Swing Check Valve
Technical Data: Manufacturing Std : BS 1868 / API 6D. Face to Face : ASME B16.10. End Connection : Flanged Ends to ASME B16.5, RF. End Connection : Butt Weld Ends to ASME B16.25. Inspection and Testing Std : BS 6755 (Part-1).
