Domatex Inc. products

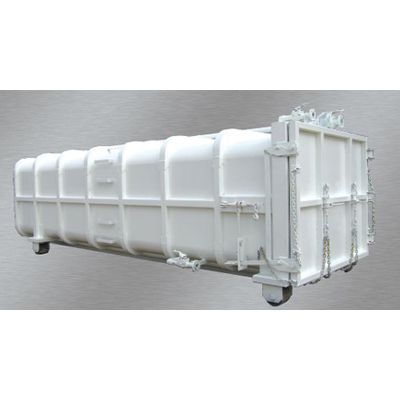

Structure Carbon Steel with All Inside Seams Fully Welded. Standard Dimensions 20 yd., 25 yd., 30 yd., 40 yd. Walls 3/16" Carbon Steel. Front Wall 3/16" A-36. Door 3/16" A-36 with 3" sq. Tubing Frame. Wall Supports Formed Channel, 2 per Side with an Optional 3rd in the Middle. Floor 3/16" to 1/4" Plate with 3"- 4.1 Channel at 16" Intervals. Bottom Rails 6 x 2 x 3/16" or Optional 6 x 2 x 1/4". Door Seal T-Extruded Neoprene Gasket with 6 Point Chain System with Optional Mechanical Latching System. Testing Containers tested to Maximum Capacity. Roof Options 10 G Plate Roof with Tubing Sub-Frame, Sliding Over and Under, Side Hinge, Side Sliding, All available in Water Tight. Other Options Tarp.

Structure Carbon Steel with All Inside Seams Fully Welded. Walls 11 G to 1/4". Front Wall 3/16" A-36. Wall Supports Formed Channels. Floor 3/16" to 5/16" plate with 3" 4.1 Channel at 16" Intervals or 12" Intervals. Bottom Rails 6 x 2 x 3`16" to 3/8". Door Sheet 11 G to 1/4". Door Frame 3" x 3/16" sq. tubing with 45 degree corners. Roof Options 10 G Plate Roof with Tubing Sub-Frame, Sliding Over and Under, Side Hinge, Side Sliding, All Available in Water Tight. Other Options Tarp. Liquid Tight Available Door Seal - T-Extruded Neoprene Gasket with 6 Point Chain System with Optional Mechanical Latching System. Testing Containers Tested to Maximum Capacity.

Structure Carbon Steel with All In and Out Seams Fully Welded. Dimensions (25 yd) 23 ft. L x 8 ft. W x 6.5 ft. H. Dimensions (30 yd) 23 ft. L x 8 ft. W x 7.5 ft. H. Shell 1/4" Carbon Steel.

Structure: A-36, 10 by 4 by 3/8 Main Beams, with a 1 by 4 Top Flat Bar. Dimension:s 6’ H, 36’ 4.75” L, 8’ W. Hydraulic Power Unit (Option): 46 HP, 3 Cylinder Diesel Engine with Spark Arrester. Lift Cylinders: 2 - 3 Stage, 6” Double Acting Hydraulic Cylinders. Winch: 45,000 lbs Direct Planetary Gears Line Pull Hydraulic Winch.

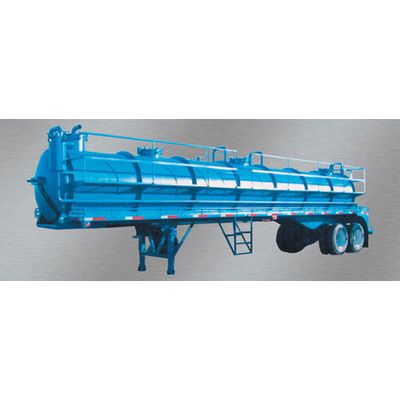

Structure: Carbon Steel with All Inside Seams Fully Welded, 1/4" Shell and Baffles. Standard Dimensions: 41.75 ft L 8 ft W 11.3 ft H. Internal Baffle: 2 Baffles with 4” Fully Welded Internal Protective Pads. Evacuation System: 2 Moisture Separators with Tractor Pump or Optional on Board Pump. Man way: 4 on Top and 1 in the Rear, Optional Cat Walk. Wall Supports: Formed Channel, 2 per Side with an Optional 3rd in the Middle. Axle: 2 - 25,000 lbs Dully with Automatic Slack Adjusterss. Suspensio: Tandem 25,000 lbs. Brake System: Air Controlled with ABS. Hose and Rack Fender Skirts: 2 - One per Side, Stretching the Full Trailer Length. Tool Box: Optional. Inspection Fluid Level: Standard 2” Plexiglas, or Optional 4 Individual Viewing Plexiglas Windows. Wheel: 8 - 22.5 or 24.5 Stud Pilote. Safety Equipmen: DOT Reflectors, DOT Towing Bumper.

Structure Carbon Steel. Dimensions 1 yd Typical 60 in. L 36 in. W 37 in. H. Other Sizes 1/2 yd., 3/4 yd., 1 1/2 yd., 2 yd., 2 1/2 yd., 3 yd., 4 yd.. Optional Casters 4”- 8” Steel, Poly, Rubber.

Domatex containers are designed and built like no other containers in the industry. Domatex containers are built in three separate stages.

During the past eight years, we at Domatex manufacturing have noticed an increased demand for such a trailer as an instrumental tool in the container hauling industry. Bringing our 20 years of experience in manufacturing various trailers and containers in the recycling industry, we have developed our own Heavy Duty Roll-Off Gooseneck Trailer.
